3.5 Configuration of the Ethernet/IP Interface
The software “Anybus Configuration Manager” of the company HMS serves for the
configuration of the interface. You can find this tool at the web page of the
interface manufacturer www.anybus.com in the area SUPPORT -> Anybus
Communicator -> Ethernet Serial Gateway.
 Connect the display with a RS232 null modem cable (pins 2<->3, 3<->2,
5<->5) to a PC / Laptop.
 Start the software.
 Close the window “Konfiguration auswählen” with the button “Cancel”.

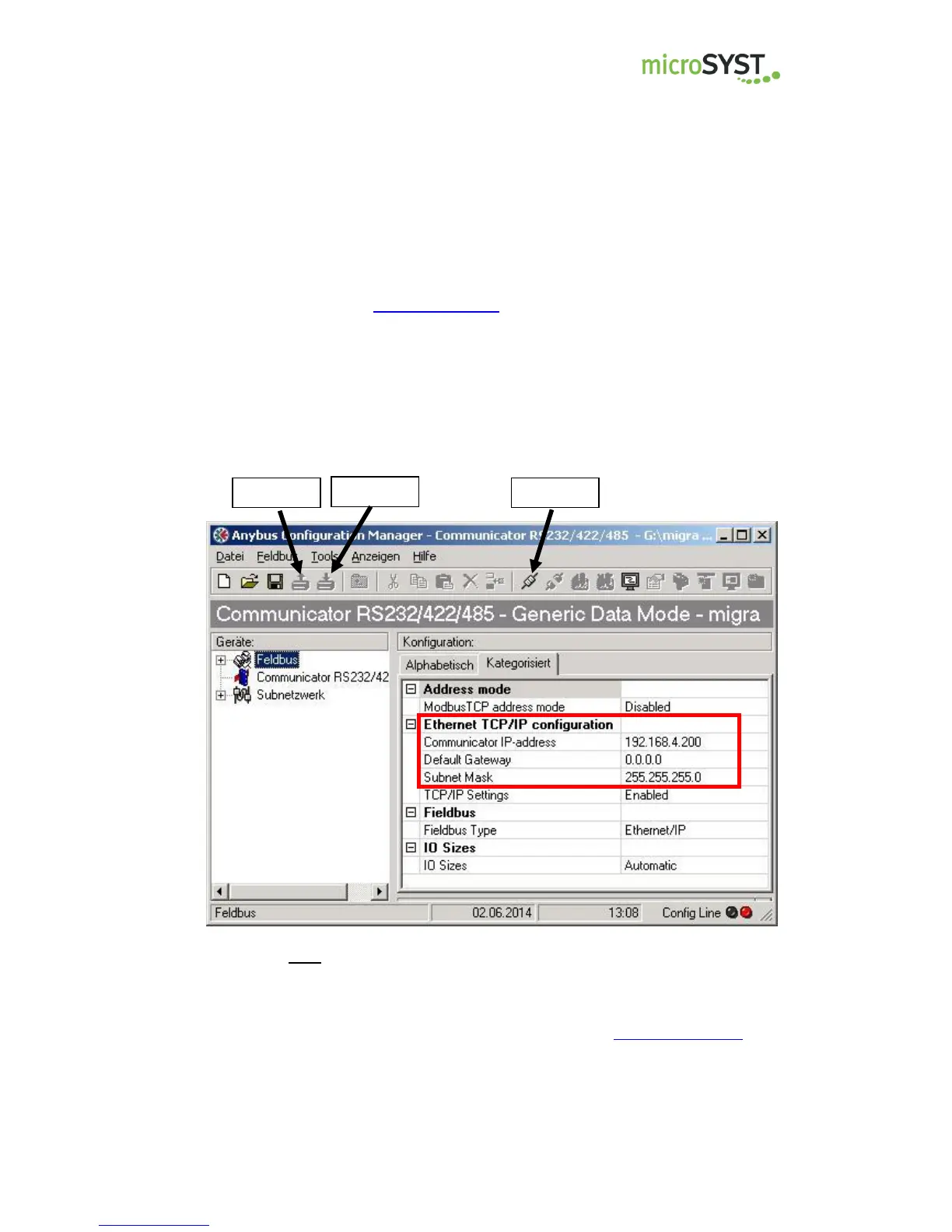

 Press button “Verbinden” and after that button “Upload”.
 Change only the marked fields according to your requirements
 Click button “Download” to transmit the configuration to the interface.
 Now the interface configuration is completed.
You can find the original configuration at our home page www.microsyst.de in the
area “Downloads & Support” -> “migra” -> “Ethernet IP” -> “Configuration File for
HMS Interface”.
