4.2 HMS-Interface
LED 1 - Module Status
State
Description
steady off
no supply power
steady green
device operational
flashing green
module has not been configured
flashing red
recoverable fault
steady red
internal error
flashing green/red
self-test
LED 2 - Network Status
State
Description
steady off
no power or no IP address
steady green
connection to SPS
flashing green
no connection to SPS
flashing red
connection timeout
steady red
duplicate IP address
flashing green/red
self-test
LED 3 - Link
State
Description
steady green
module has a link
steady off
module does not sense a link

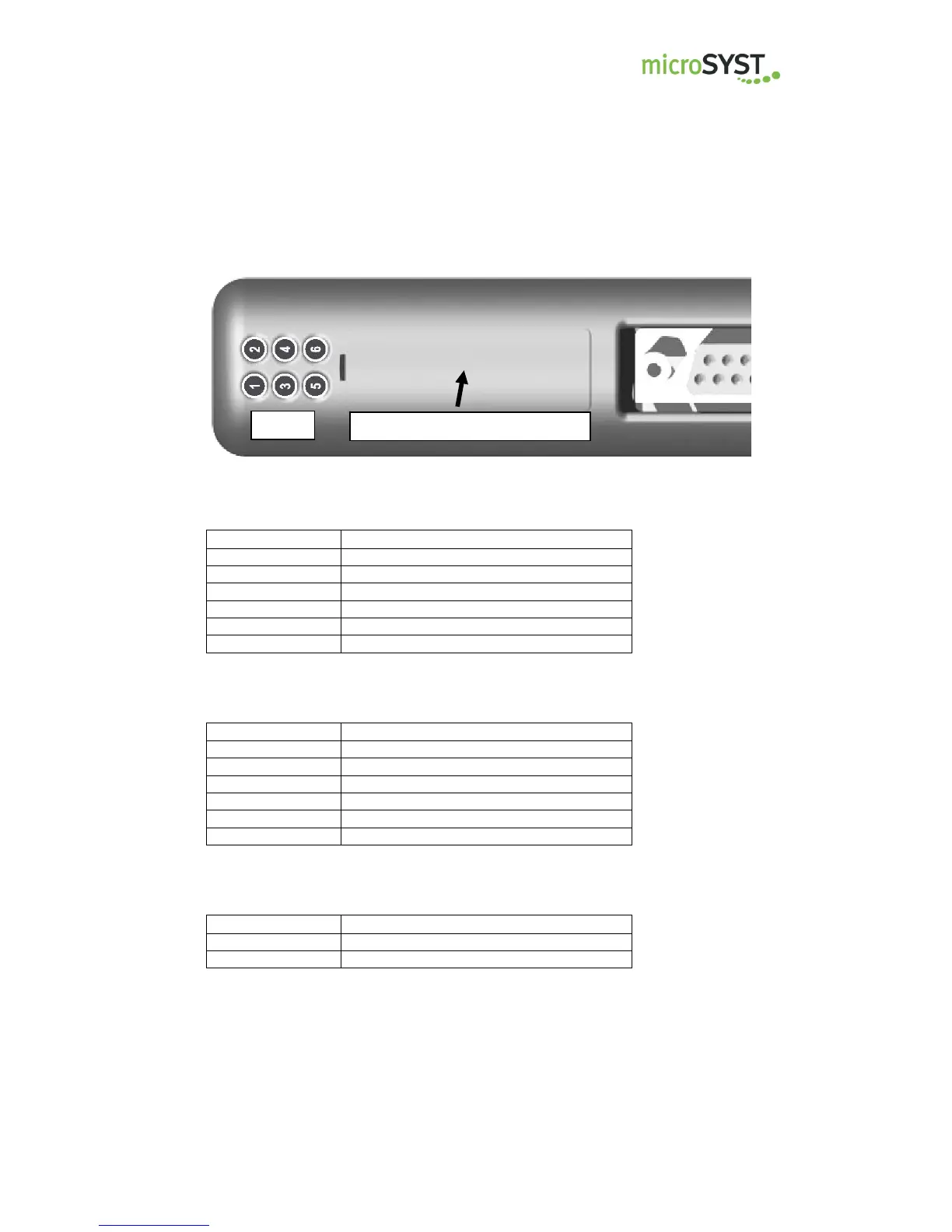

LEDs
DIP Switch (inside the housing)
