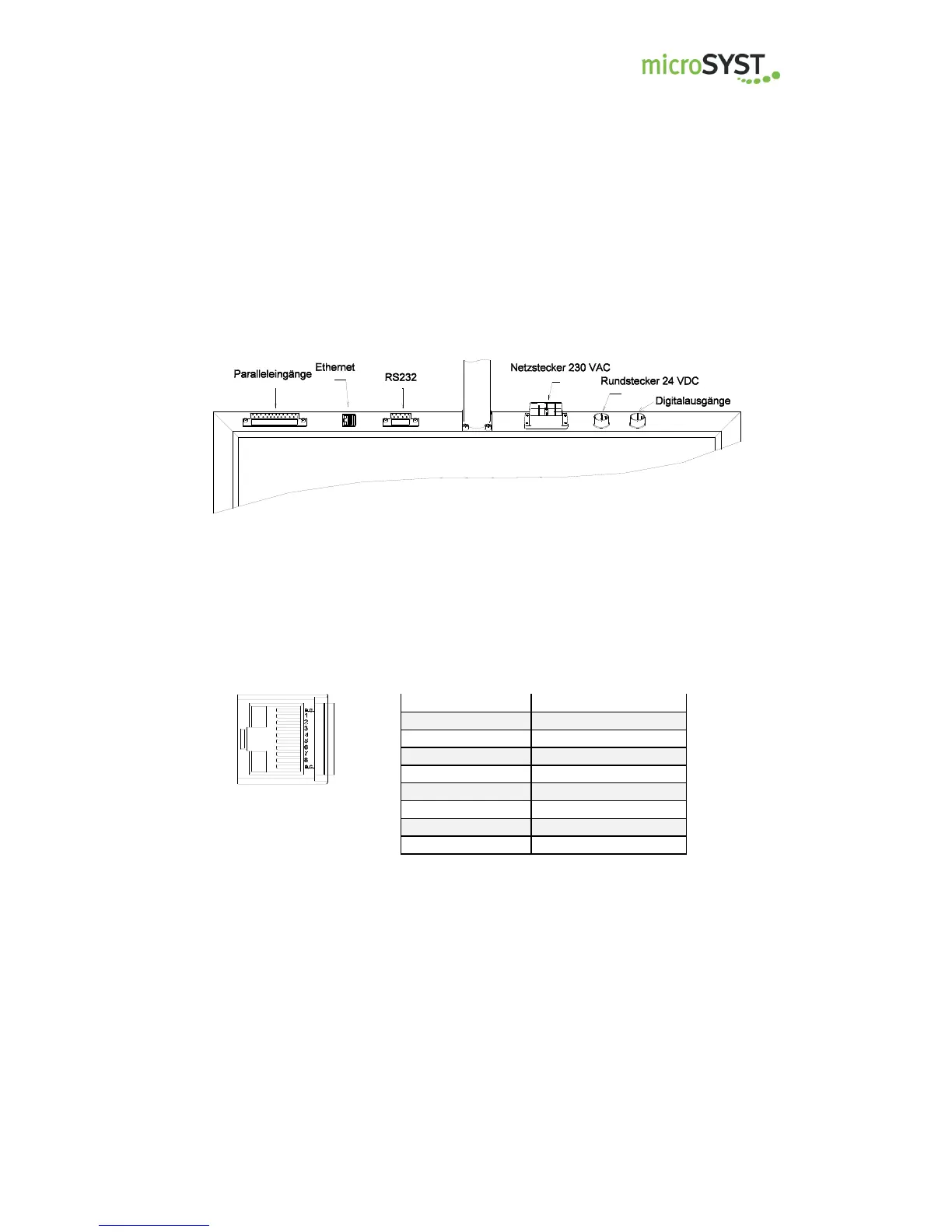

4 Connector Pin Assignments
Ethernet Socket (interface)
Note: The two outer pins at the Ethernet socket are not used (see above
drawing for identification of pin 1).
PIN
Assignment
1
Tx +
2
Tx -
3
Rx +
4
n.c.
5
n.c.
6
Rx -
7
n.c.
8
n.c.
