microSYST migra Ethernet/IP User Manual

migra Ethernet/IP
Large Format, Graphics Compatible Display with Ethernet/IP Interface
Page 47
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
 +49 9681 91960-0,  +49 9681 91960-10, info@microsyst.de, www.microsyst.de

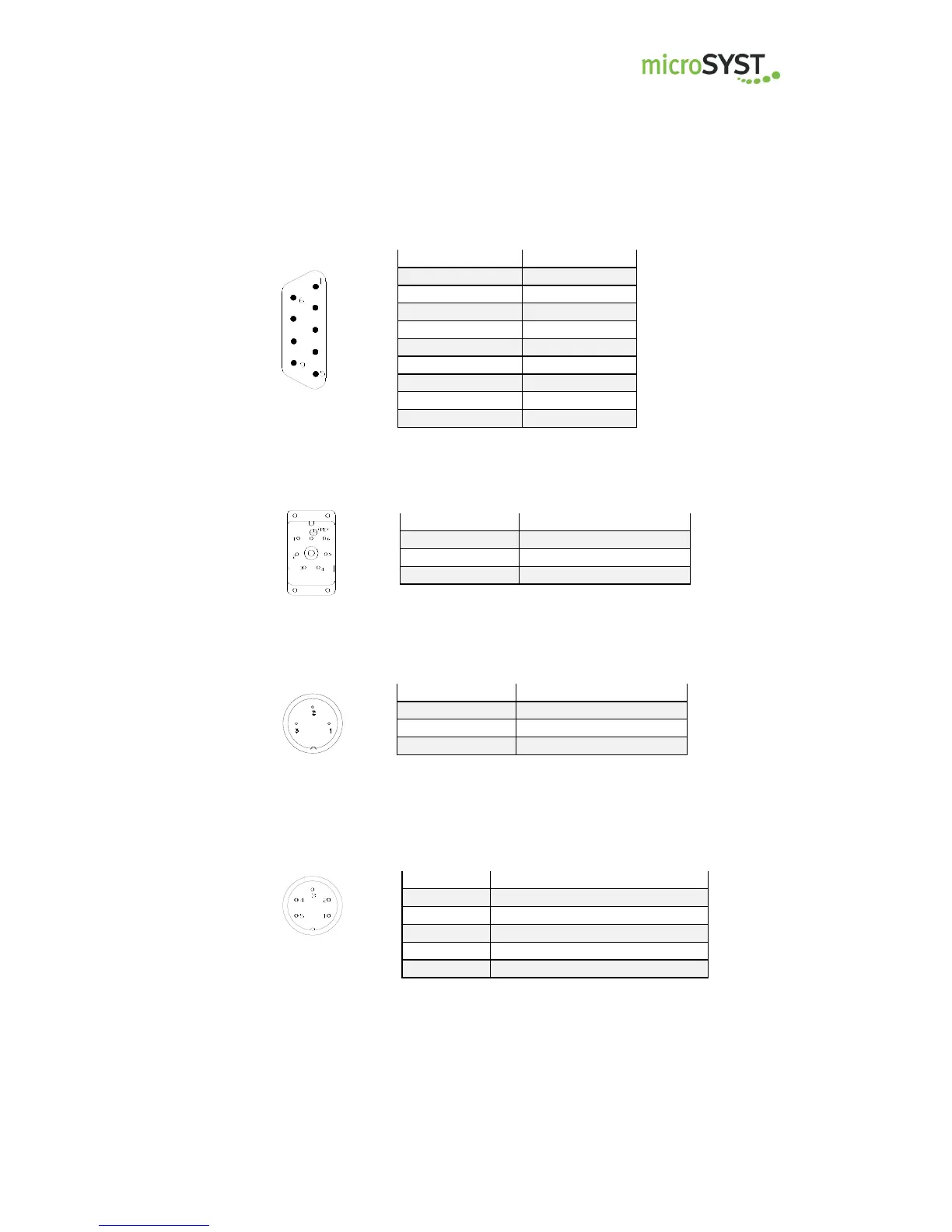

9-Pin. Sub-Miniature Plug Connector (RS232)
7-Pole Mains Plug (230 V AC)
3-Pin Circular Plug (24 V DC) **
** Only with 24 V DC power supply
5-Pin Circular Plug (only at displays with a maximum size of
4x4 display modules and optional digital outputs)
Relay 1 / 2 is controlled by digital output 1 / 2 (frame: ESC+“D”).
PIN
Assignment
1
L1
2
N
(PE)
PE
PIN
Assignment
1
GND
2
+ 24 V DC
3
PE
PIN
Assignment
1
Relay 1, normally open, a
2
Relay 1, normally open, b
3
Relay 2, normally open, a
4
Relay 2, normally open, b
5
n.c.
PIN
RS232
1
n.c.
2
RxD
3
TxD
4
n.c.
5
GND
6
n.c.
7
n.c.
8
n.c.
9
n.c.
