4.1 Control Board (intern)
Boot Jumper:
This Jumper must not be set within normal operation.
If the display does not work according to the rules, f.e. after a faulty
software- or configuration download, the following steps should be
executed:
 Power off the display.
 Set the boot jumper.
 Power on the display.
 Use the micon software to load the configuration resp. the application
software into the display again (see corresponding chapter).
 After a successful download, power off the display.
 Remove the boot jumper.
 Power on the display.

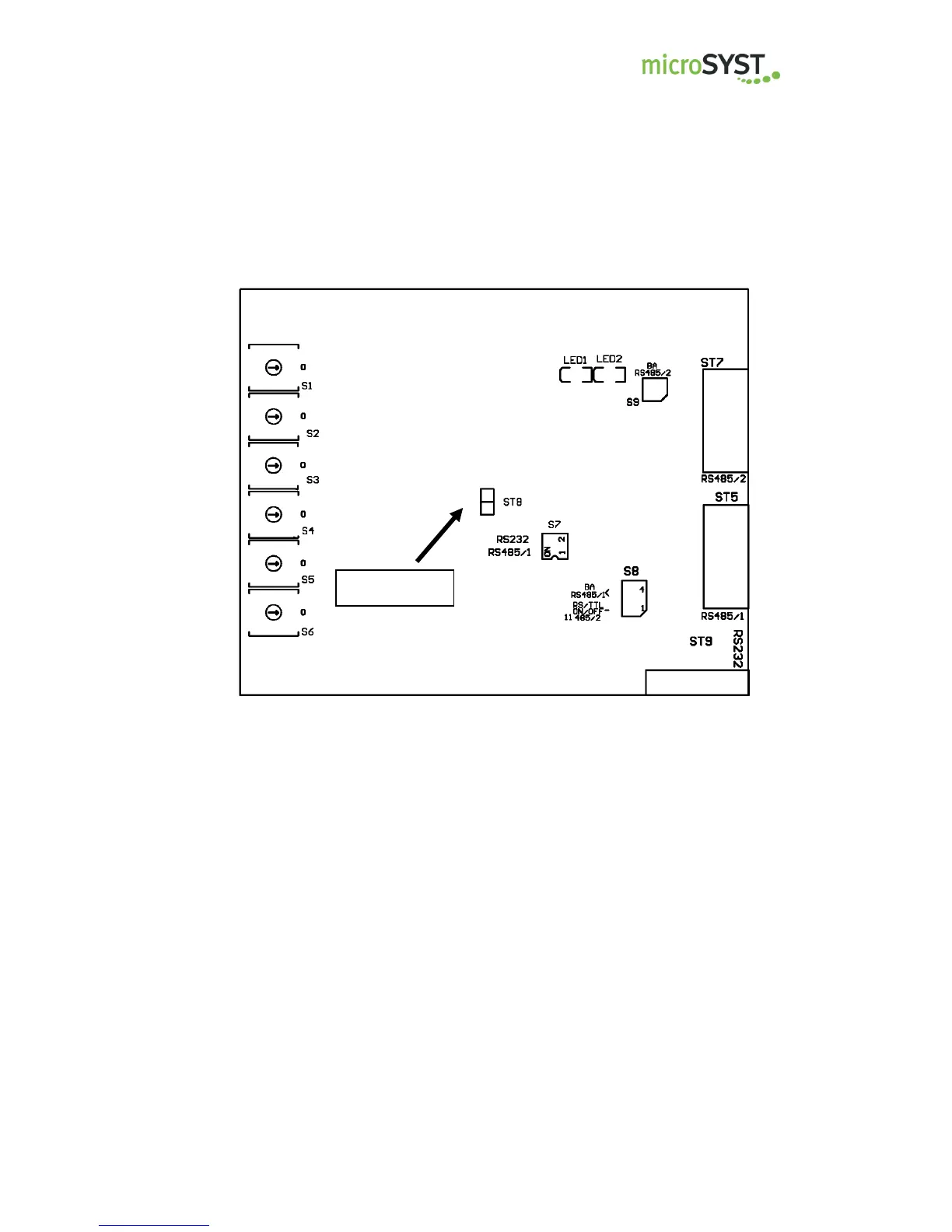

Boot Jumper
