INT.COND.ZERO
This function can execute the internal resistance offset action of the machine.
(1) Press [Func].
(2) Please use [↑] or [↓] to select Calibration and then select INT.COND.ZERO and press [Enter].

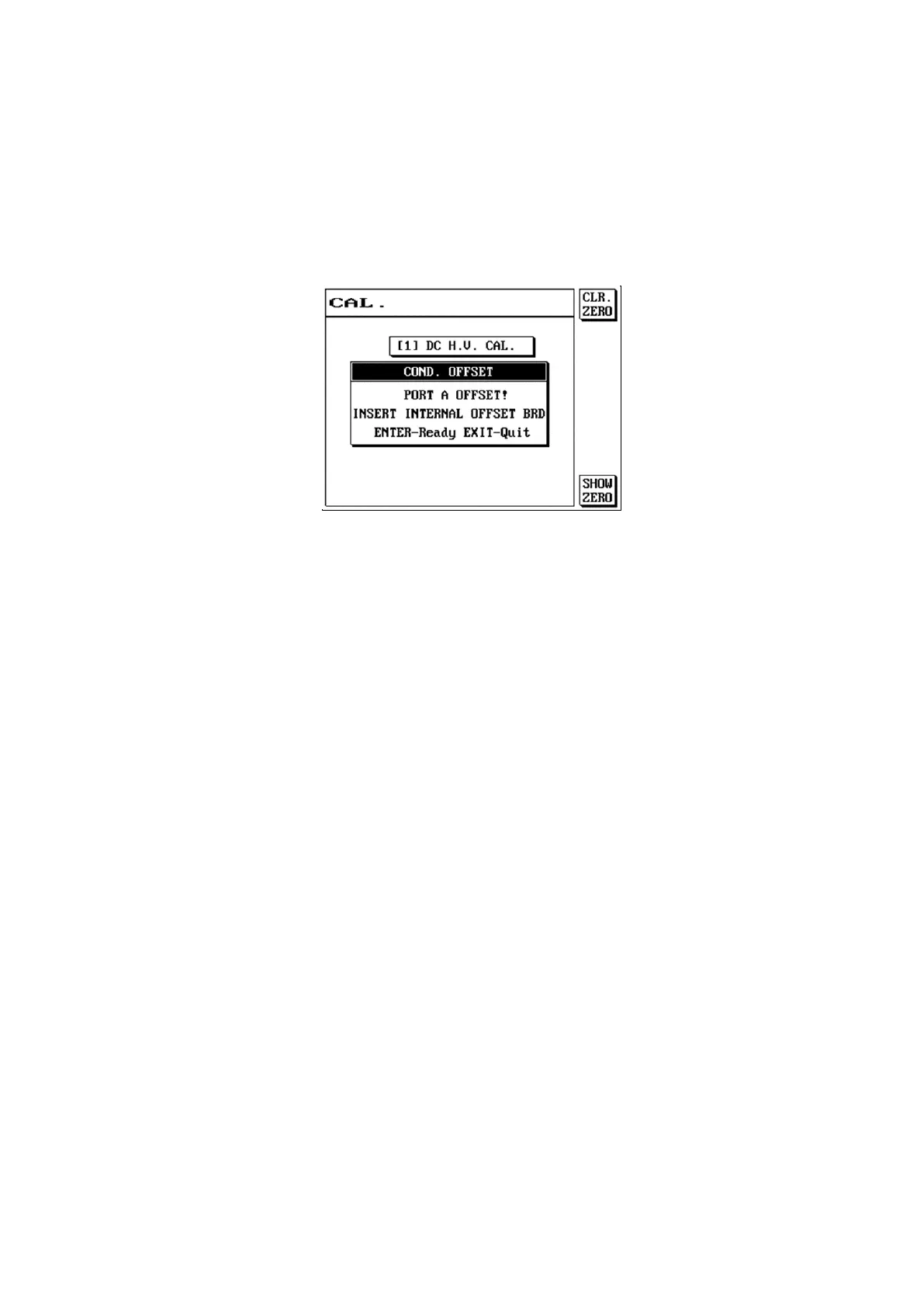

(3) The LCD screen will display as follows:
(4) Press [Enter] to execute the internal resistance offset action (when you want to execute internal
resistance offset, please first insert the INTERNAL OFFSET board).
(5) If PORT A (slot A) completed internal resistance offset, the LCD will display a message asking
whether to continue to offset the internal resistance of PORT B (slot B). If the machine you purchased
is 256PIN, it will offset the internal resistance all the way to PORT D in sequence.
(6) Change the offset board to the COND OFFSET board, and repeat steps (4) and (5).
(7) Change the offset board to the 50Ω COND offset board for PORT A (slot A) for execution.
