The following requirements must be followed for quick test:
1. Quick test is a test method designed to be used specifically when the insulation value of the DUTs are
within fixed range and saves time by not jumping sections, and has the goal of gaining highest capacity.
2. Each 1V can only test 1M ohm 1uA is a very small current.
3. Set the correct test specifications; to test 100M test specifications, the voltage must be set to 100M
ohm.
4. Make suitable adjustments for the test time according to the DUT.
(12) Test pin number
Set the maximum number of pins for the quick binary test.

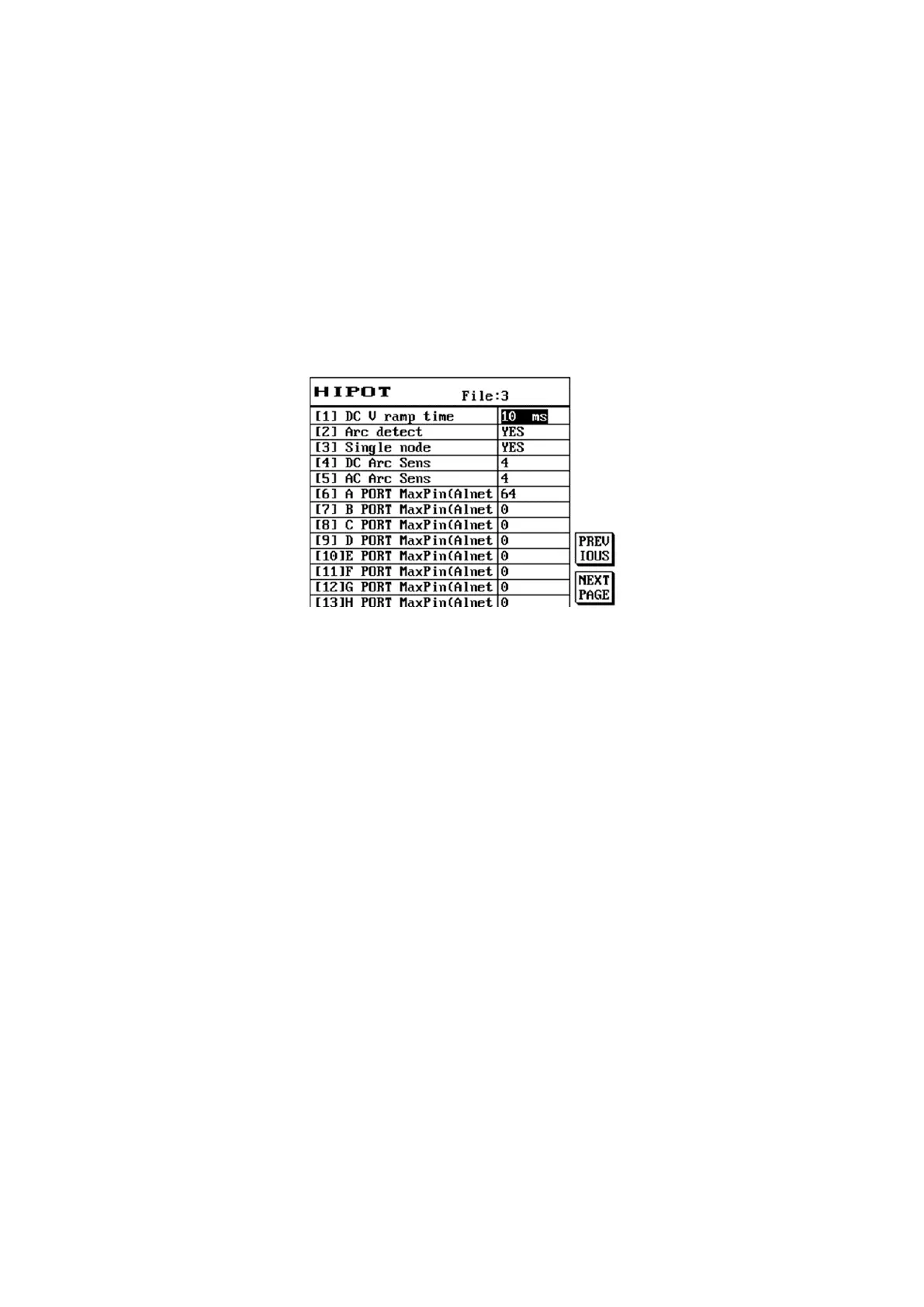

Select S6 [NEXT PAGE] and the LCD screen will display as follows:
(1) DC V ramp time
Set the voltage increase time for the DC insulation and AC tolerance test. The increase time for the
voltage of the DC insulation test can be set from 10-1000 ms , the smaller the setting value the faster
it increases.
(2) Arc detect
Set whether to enable arc detection.
