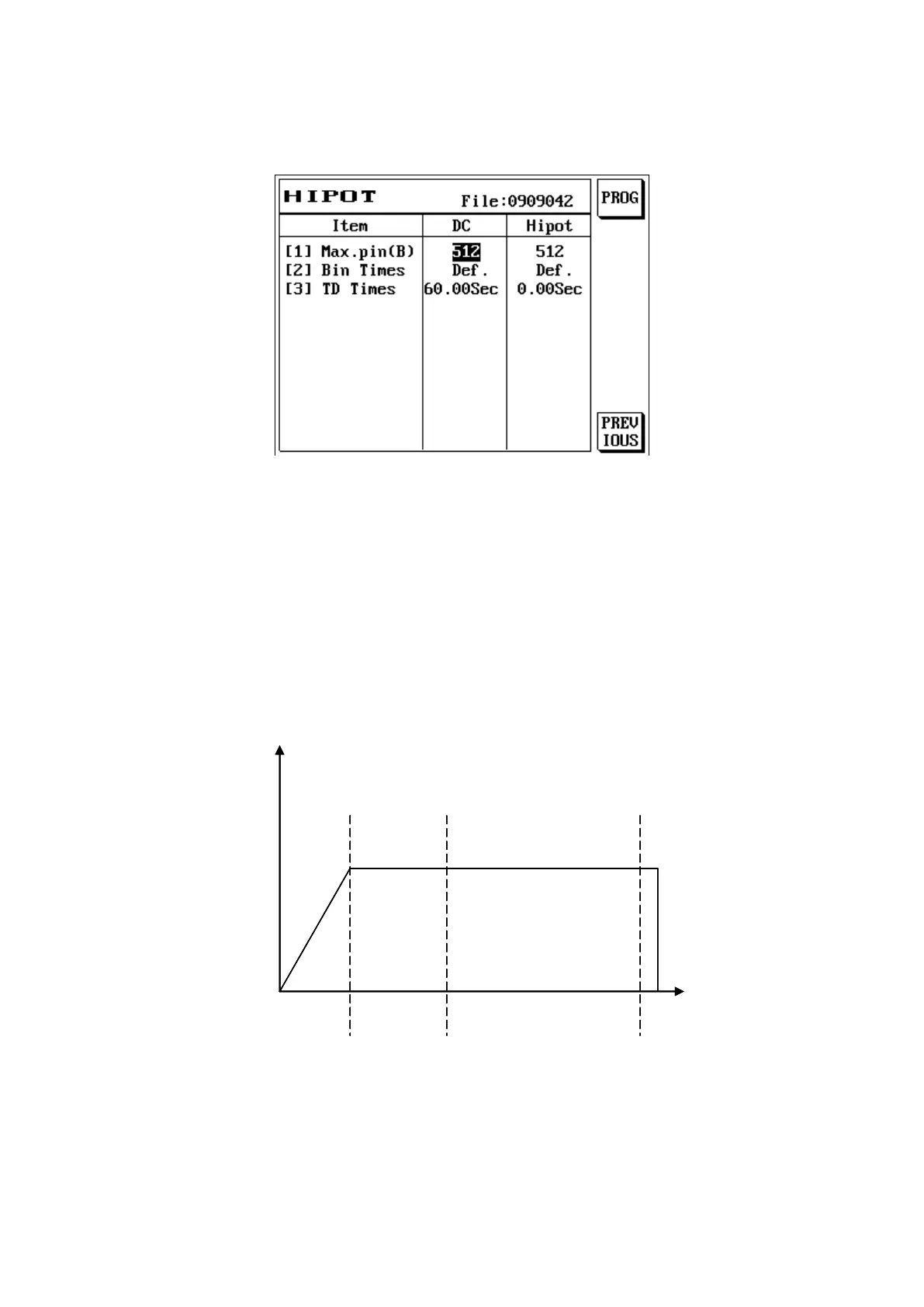

Select S6 [NEXT PAGE] and the LCD screen will display as follows:
[1] Max .Pin(B):
Set the maximum number of pins for the quick binary test.
[2] Bin Times:
Binary quick test times, the corresponding point to the high voltage is different in each time. If 8
point is 3 times, the 1st high voltage corresponding point is +-+-+-+-, the 2nd time is ++--++--, and
the 3rd time is ++++----. The default binary test for the 128-point model is 7 times.
[3] TD Times:
Users can set to wait for a period of time after the high voltage climbs to the specified voltage before
performing the test; this is mainly to allow the DUT charging time constant to stabilize before
measuring the insulation value. This way more consistent data can be measured.
