Controls & Indicators - continued
Control Function
P button Programmingmodebuttonthatallowsoperatorto
changetemperature,time,drytimeand/orventing
procedure. Used in conjunction with buttons 1 or 2.
(RefertoProgrammingMode).
+ (plus) button
Allowstemperature,time,ordrytimetobe
increased or changes Vent to Fast mode when in
location 1 or 2 and the P (programming) mode is
activated.
- (minus) button
Allowstemperature,time,ordrytimetobe
decreased or changes Vent to Slow mode when
inlocation1or2andtheP(programming)modeis
activated.
Door Handle refer to illustration For latching / opening door.
WaterLevelIndicator/
Reservoir Drain Tube refer to illustration
Shows amount of water in reservoir. Tube also
used for drainage of reservoir into suitable
container.
Fill Opening refer to illustration Accessforllingreservoirwithwater.
PressureReliefValveTestLever refer to illustration Allows operator to check pressure relief valve.
Printer(Optional) refer to illustration The printer (optional equipment) can be used to
provideapermanentrecordoftime,temperature,
and pressure during a cycle.

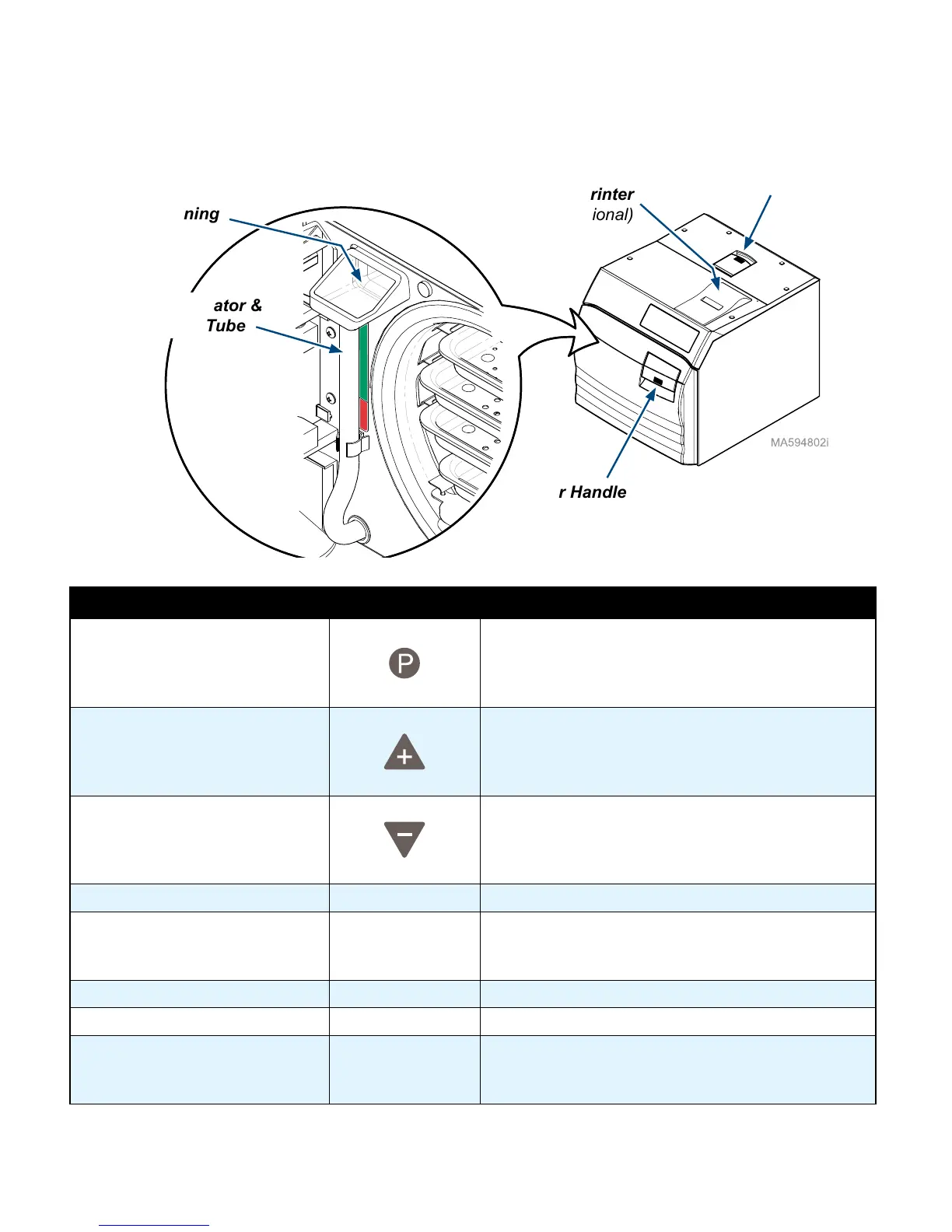

Fill Opening
Water Level Indicator &
Reservoir Drain Tube
Door Handle
Printer
(optional)
Pressure Relief
Valve Test Lever
