Controls & Indicators

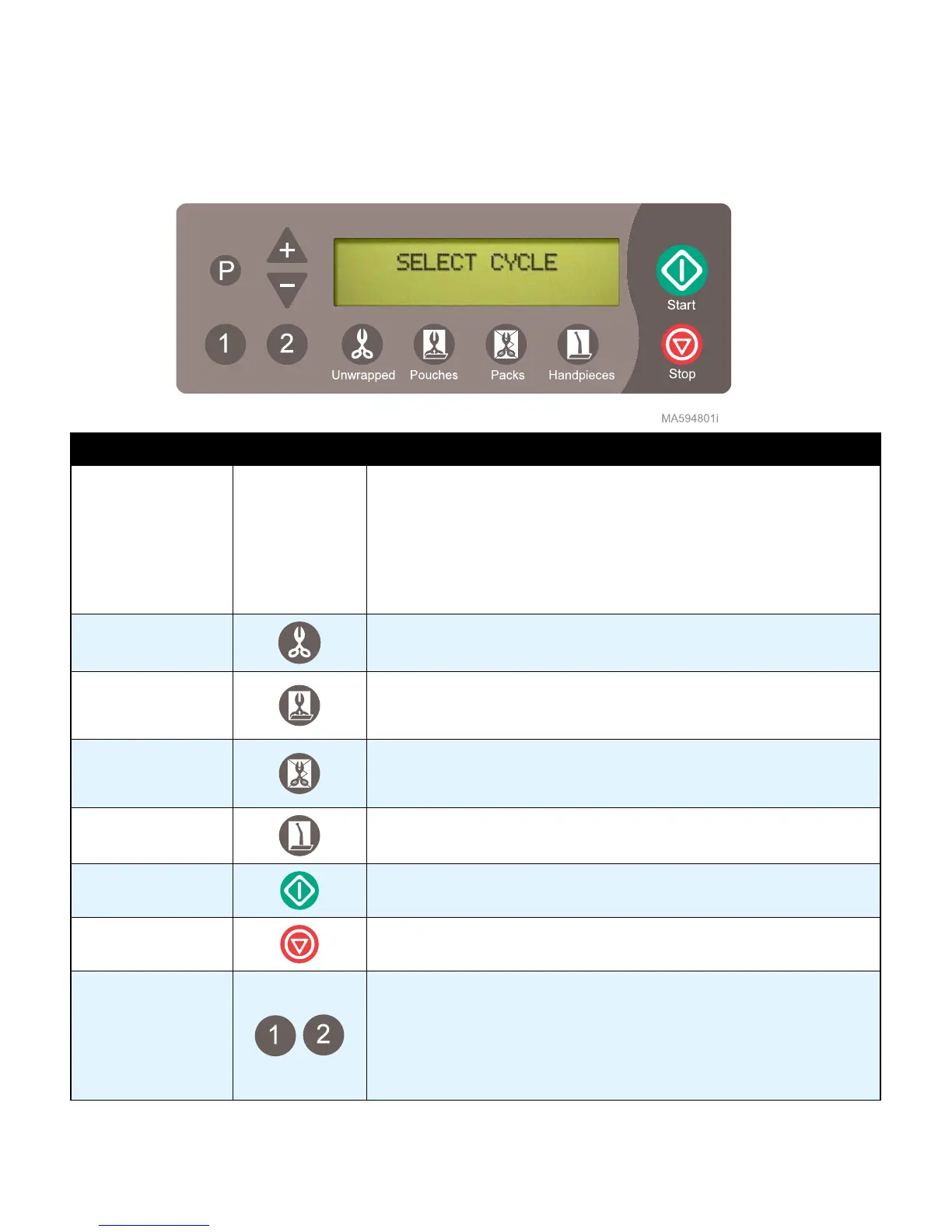

Thesterilizercontrolsandindicatorsareshownintheillustrationsonthis,andthefollowingpage.
The accompanying tables describe the function of each control / indicator.
Control Function
Display see illustration Indicatescycleselected,cycletemperatureandexposuretime
fortheselectedcycle.Duringthecycle,displayshowsmessages
describingstatusofcycle.Whencycleenterssterilizationmode,
remaining cycle time is displayed as well as temperature and
pressure. Display also shows error message if a malfunction
occurs. Refer to the Troubleshooting section of this manual for a
detailedexplanationof Informational / Error Messages.
Unwrapped button
A program cycle designed to process unwrapped instruments at:
270° F (132° C) for 3:00 minutes / 30 minute drying cycle.
Pouches button
A program cycle designed to process instruments in combination
paper / plastic sterilization pouches or wrapped instruments
at: 270° F (132° C) for 5 minutes / 30 minute drying cycle.
Packs button
AProgramcycledesignedtoprocesspacksofinstrumentsor
textilesat:250° F(121° C) for 30 minutes / 30 minute drying
cycle.
Handpieces
button
A program cycle for dental handpieces which runs at:
270° F(132° C) for 6 minutes / 30 minute drying cycle.
Start button
Initiatesselectedprogramor,whenSELECTCYCLEisdisplayed,
pressing Start will activate heater for 10 minutes.
Stop button
Terminates selected program or function.
1 or 2 buttons
NOTE: All material
run in these cycles
must be validated
for sterilization by
the user.
Programmablecyclebuttonsthatallowsanoperatortocreatetwo
different programmed cycles for special applications. Sterilization
timeandtemperature,alongwithdryingtimeandventingproce-
dure can be adjusted or changed.
