Figure 20
Dual Stud
Mounting Plate &
VetPro DC X-ray
Fixed Side

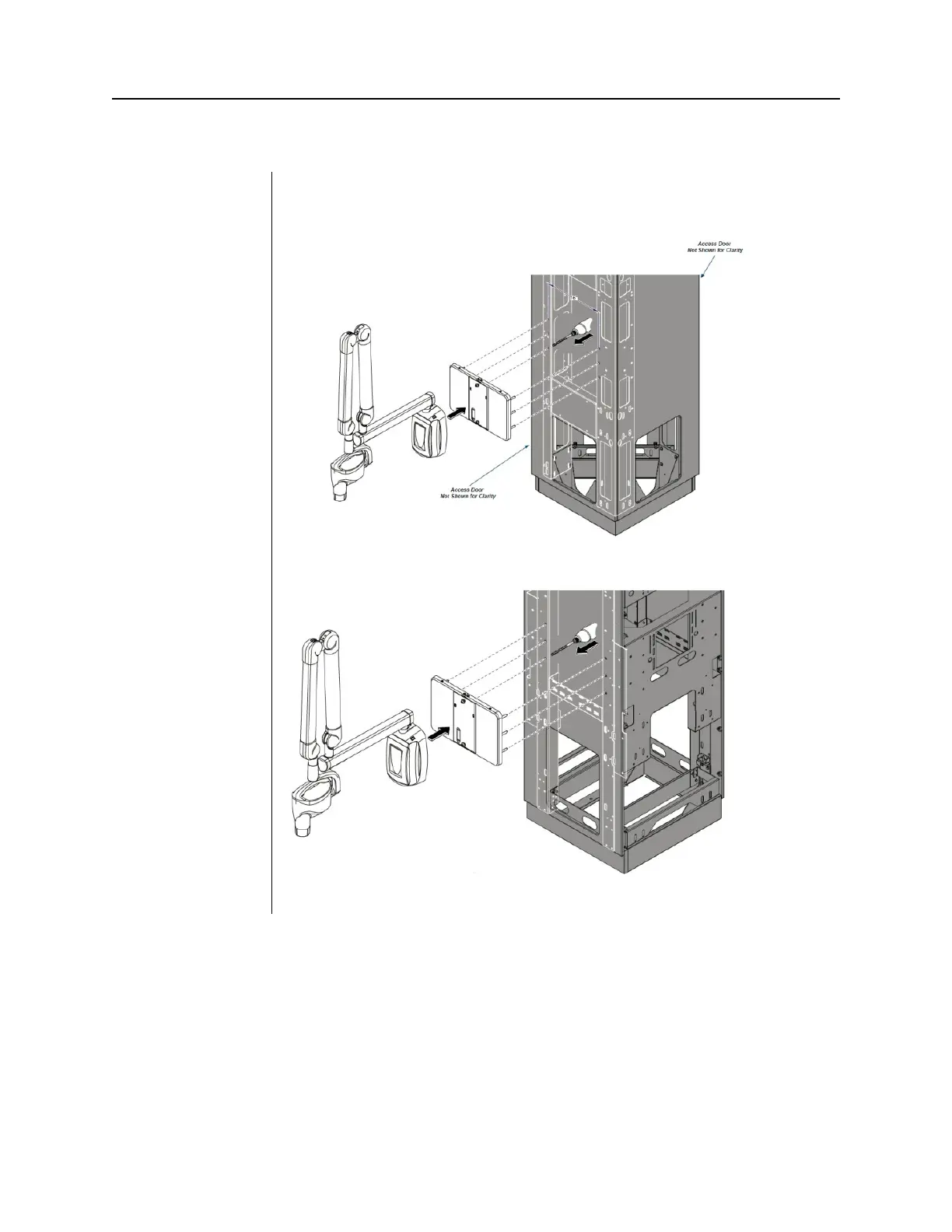

Illustrated example of a Dual Stud Mounting Plate and a VetPro DC X-ray
mounted to the fixed side of a Chase Unit.
Rail side installation
of a VetPro DC on a
Pentagonal Chase
Rail side installation
of a VetPro DC on a
Pentagonal Chase
