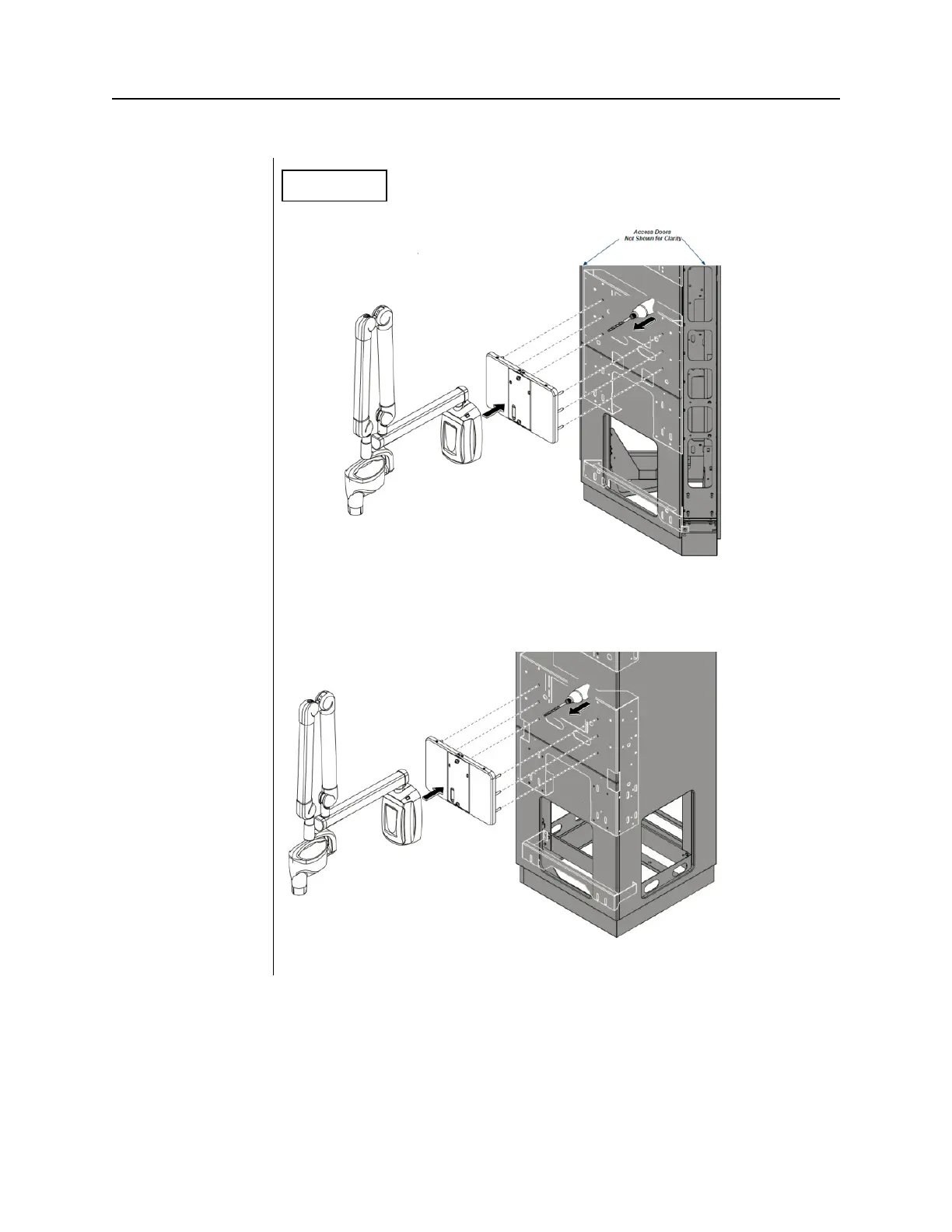

Figure 21
Dual Stud
Mounting Plate &
VetPro DC X-ray
Removable Side
Illustrated example of a Dual Stud Mounting Plate and a X-
ray mounted to the removable side of a Chase Unit.
VetPro
®
DC
Brace side installation
of a VetPro DC on a
Pentagonal Chase
Brace side installation
of a VetPro DC on a
Pentagonal Chase
