VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
49
Verification
1. On Power Supply Board 30-08041, shown in Figure 37, verify that LED D11 is
illuminated. The illuminated LED verifies that appropriate supply voltages are
present.
Stored electrical energy is present whenever D11 is illuminated.
2. On the Power Supply Control Board 30-08160, shown in Figure 37, verify that
LEDs D7 (+5VDC), D8 (+12VDC) and D9 (+24VDC) are illuminated and LED
D10 is flashing. Each illuminated LED verifies that appropriate supply voltages
are present. If the LEDs are not illuminated, refer to the “No Operator Display
but Power Switch is On” procedure in the Troubleshooting on page 73 of this
manual.
3. Turn off the VetPro DC Animal Health Dental X-ray System using the power
switch as shown in Figure 35.
The power supply board (30-08041), when energized,
contains high electrical energy. Avoid contact with this
board. After the system is turned off, electrical energy
will remain in the power supply board for several
minutes. Before performing any service on this board,
first verify that voltage has dissipated.

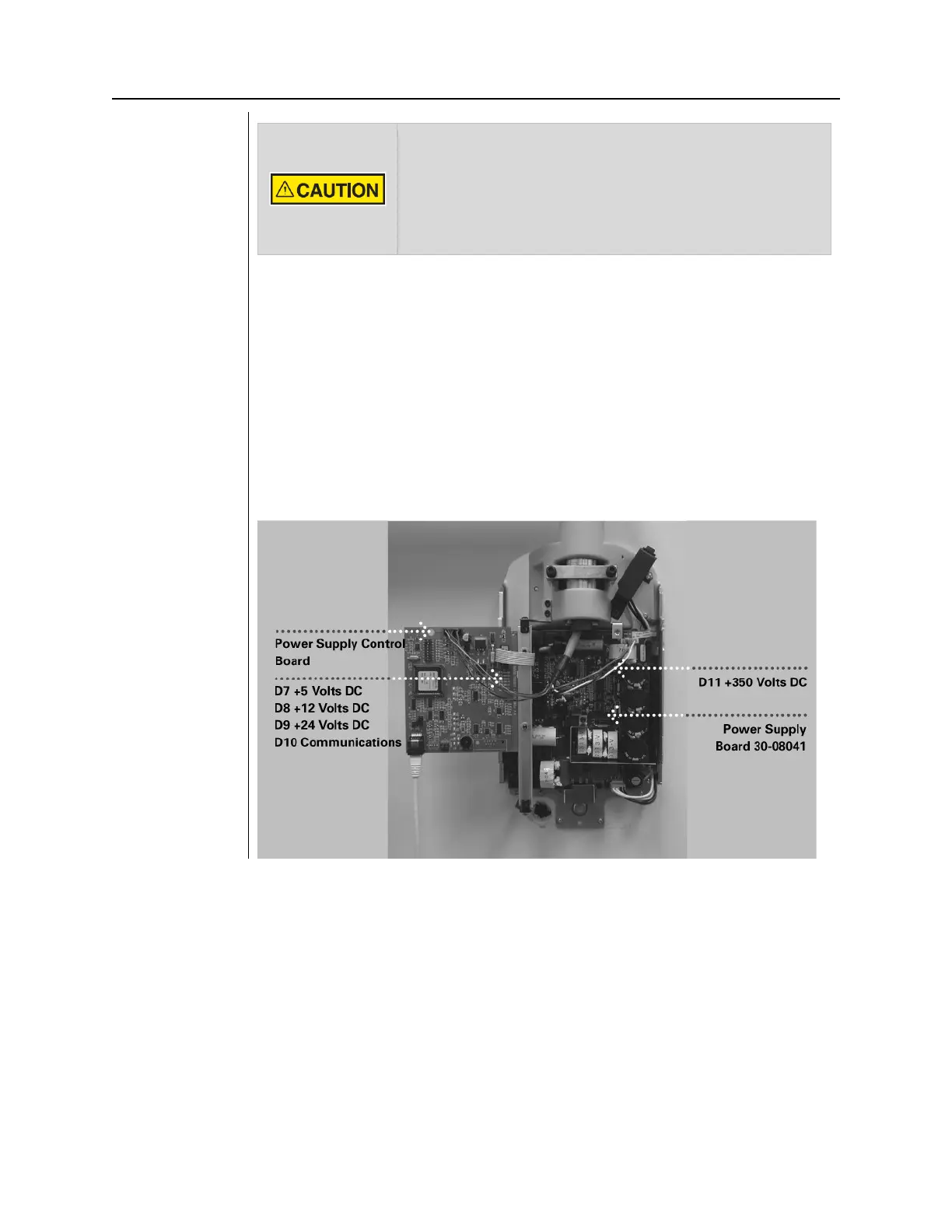

Figure 38
Circuit Board
Verification
