Technical Information
102
G1000 / G2000 Dishwashers

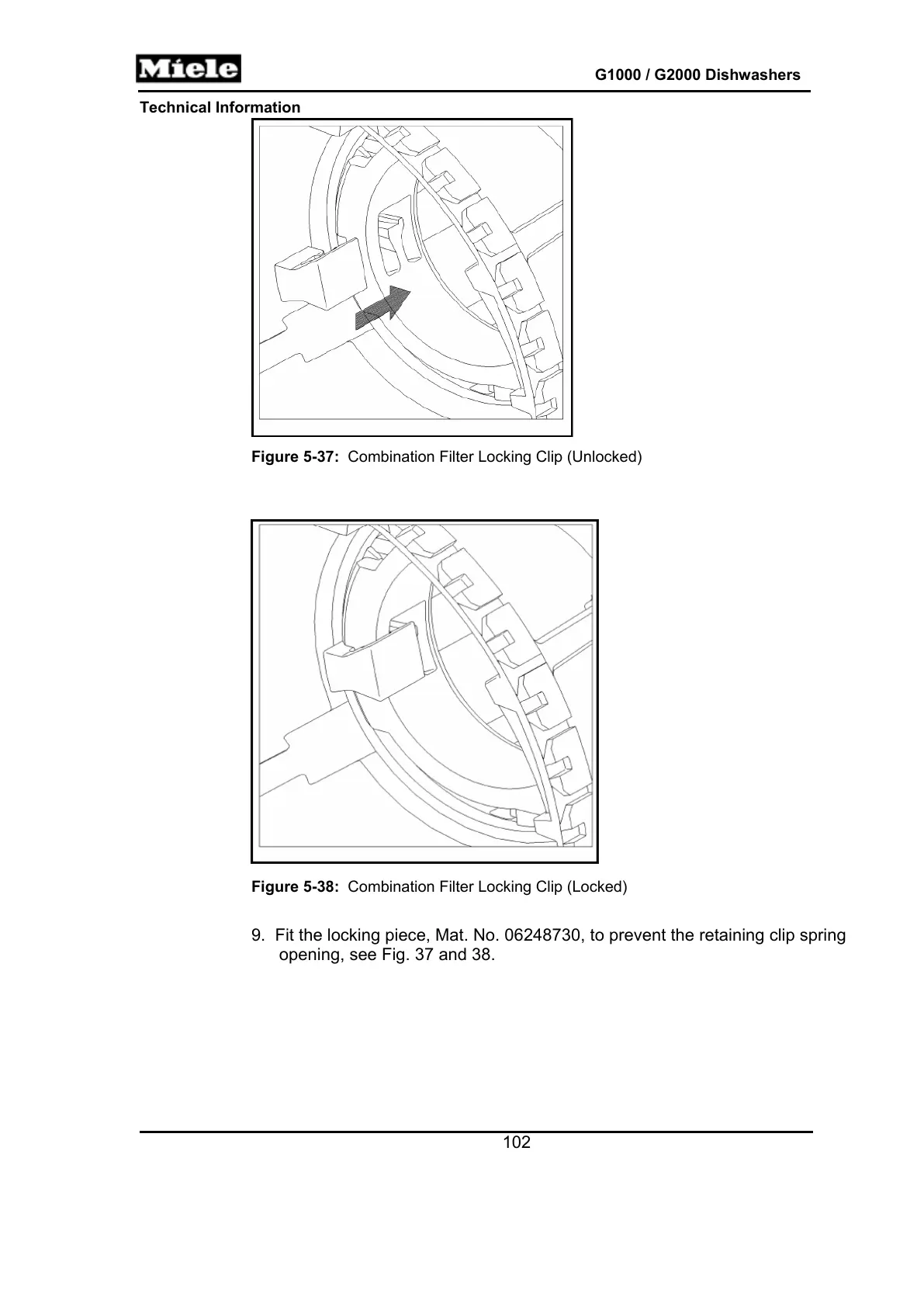

Figure 5-37: Combination Filter Locking Clip (Unlocked)
Figure 5-38: Combination Filter Locking Clip (Locked)
9. Fit the locking piece, Mat. No. 06248730, to prevent the retaining clip spring
opening, see Fig. 37 and 38.
