Technical Information
12
G1000 / G2000 Dishwashers
1.1.2 Appliance Overview – Typical Fully Integrated Model
1 Upper Spray Arm (Not Visible)
2 Cutlery Tray (Depending On Model)
3 Upper Basket
4 Middle Spray Arm
5 Air Inlet For Drying (Depending On Model)
6 Lower Spray Arm
7 Filter Combination
8 Data Plate
9 Optical Interface
10 Rinse Aid Reservoir
11 Dual Compartment Detergent Dispenser
12 Salt Container

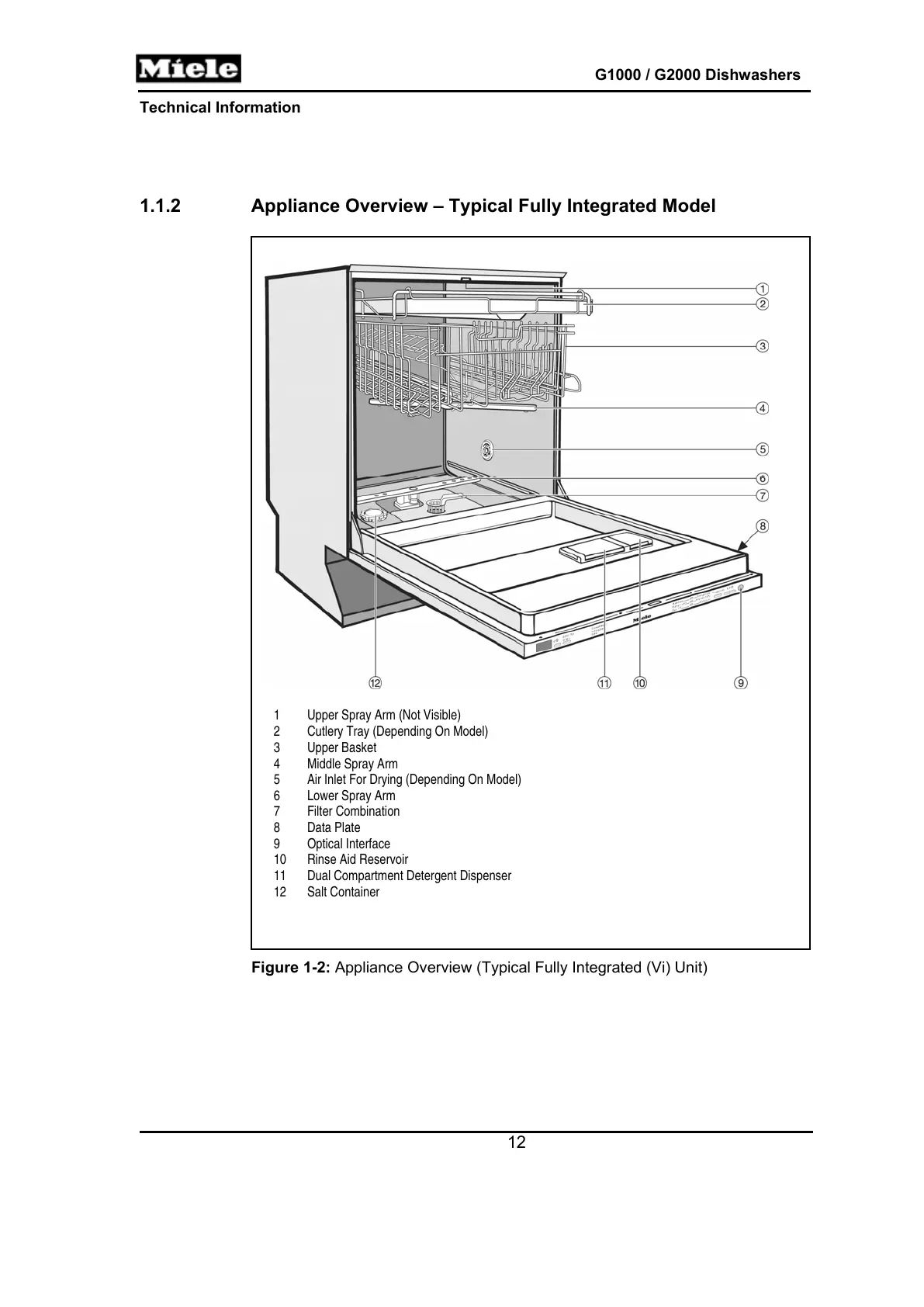

Figure 1-2: Appliance Overview (Typical Fully Integrated (Vi) Unit)
