Technical Information
G1000 / G2000 Dishwashers

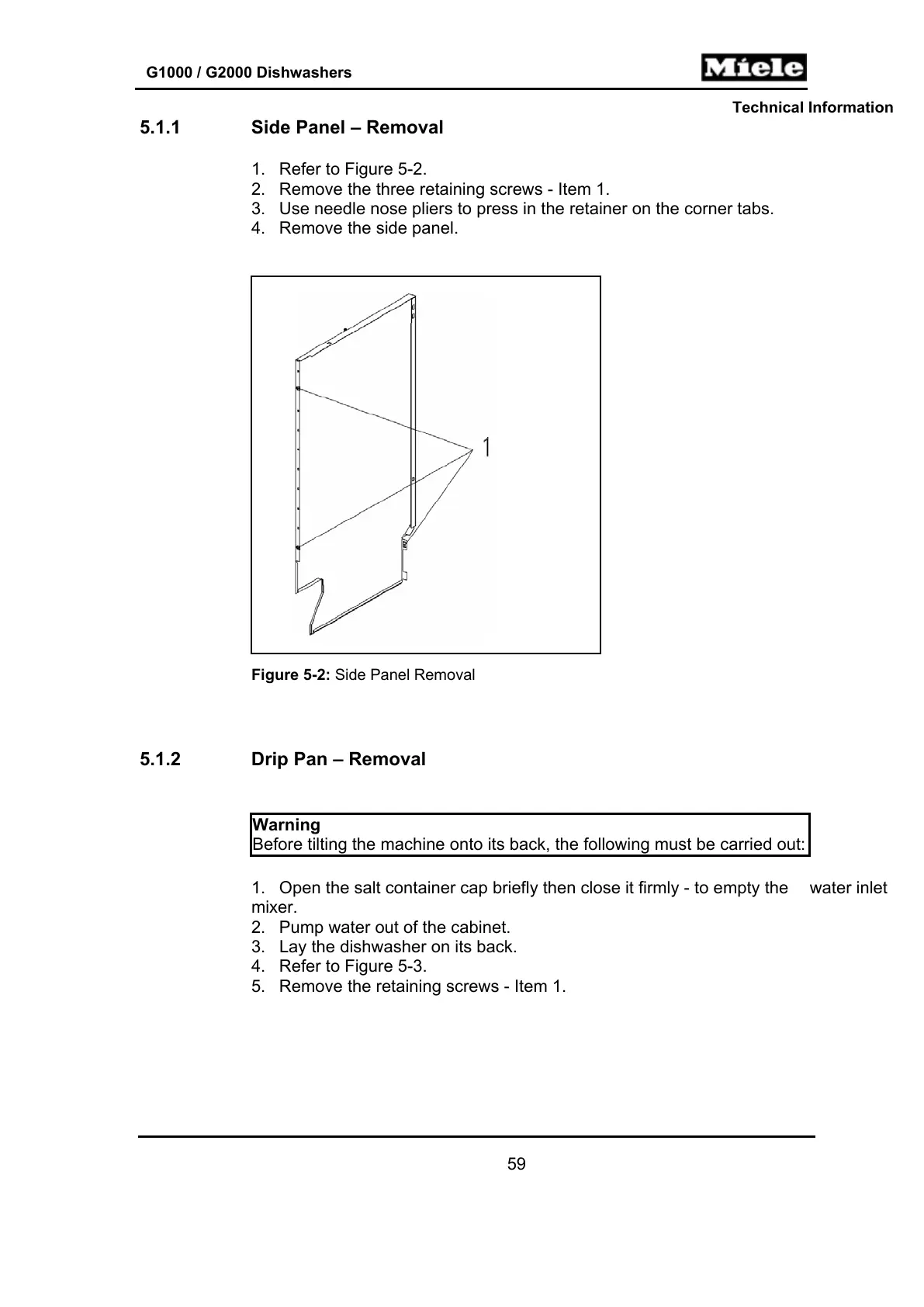

5.1.1 Side Panel – Removal
1. Refer to Figure 5-2.
2. Remove the three retaining screws - Item 1.
3. Use needle nose pliers to press in the retainer on the corner tabs.
4. Remove the side panel.
Figure 5-2: Side Panel Removal
5.1.2 Drip Pan – Removal
Warning
Before tilting the machine onto its back, the following must be carried out:
1. Open the salt container cap briefly then close it firmly - to empty the water inlet
mixer.
2. Pump water out of the cabinet.
3. Lay the dishwasher on its back.
4. Refer to Figure 5-3.
5. Remove the retaining screws - Item 1.
59
