Technical Information
G1000 / G2000 Dishwashers
5.2.4 Fascia Panel Removal

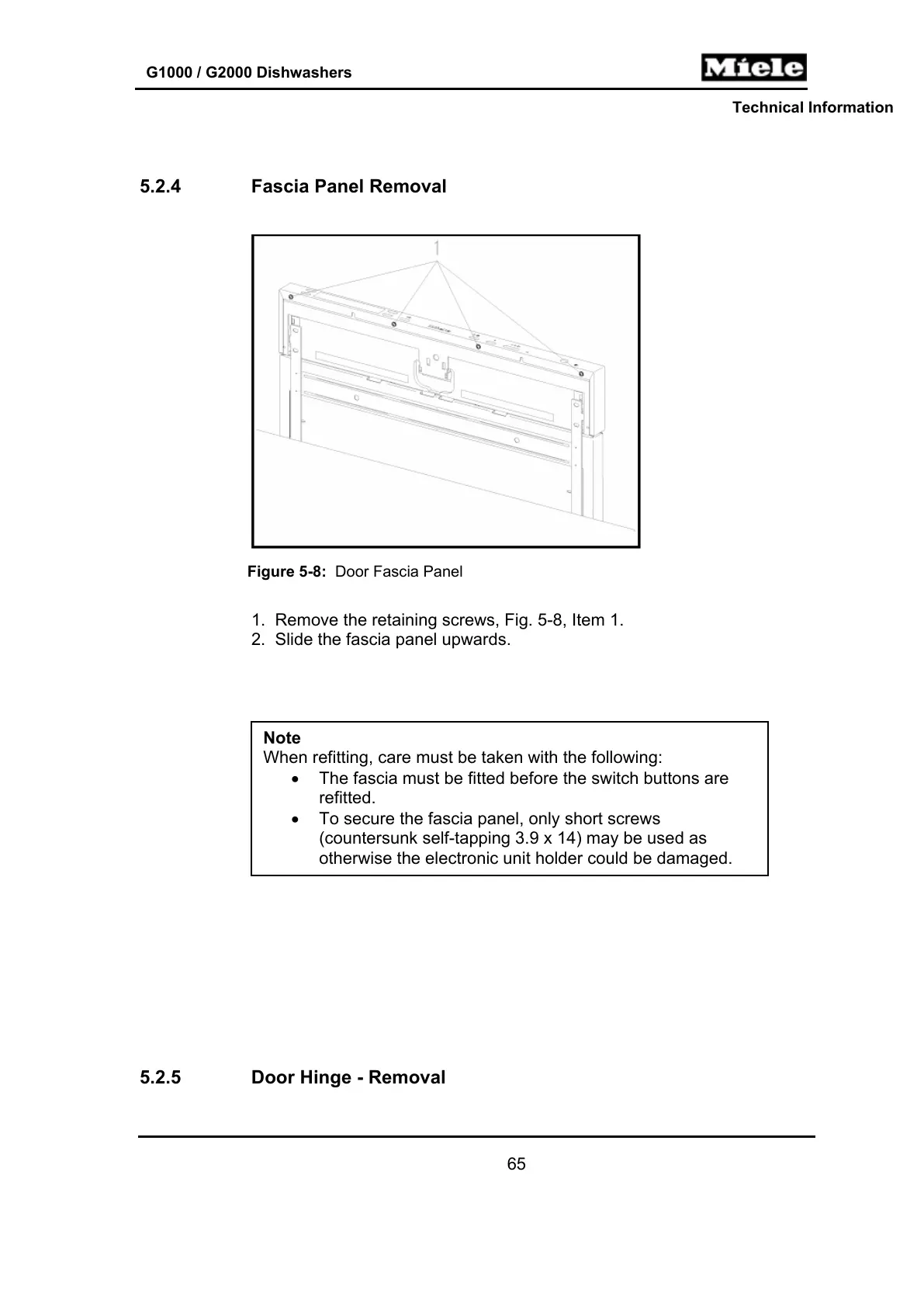

Figure 5-8: Door Fascia Panel
1. Remove the retaining screws, Fig. 5-8, Item 1.
2. Slide the fascia panel upwards.
Note
When refitting, care must be taken with the following:
• The fascia must be fitted before the switch buttons are
refitted.
• To secure the fascia panel, only short screws
(countersunk self-tapping 3.9 x 14) may be used as
otherwise the electronic unit holder could be damaged.
5.2.5 Door Hinge - Removal
65
