Miele G2000 - 4.0 Description of Function; 4.1 Cabinet Construction

Technical Information
G1000 / G2000 Dishwashers
4.0 Description of Function
4.1 Cabinet Construction
The inner cabinet is constructed of stainless steel (1.4301) welded onto four (4)
vertical U-section sub-frames. The cabinet is sound and heat-insulated with bitumen
and/or mineral wool matting.

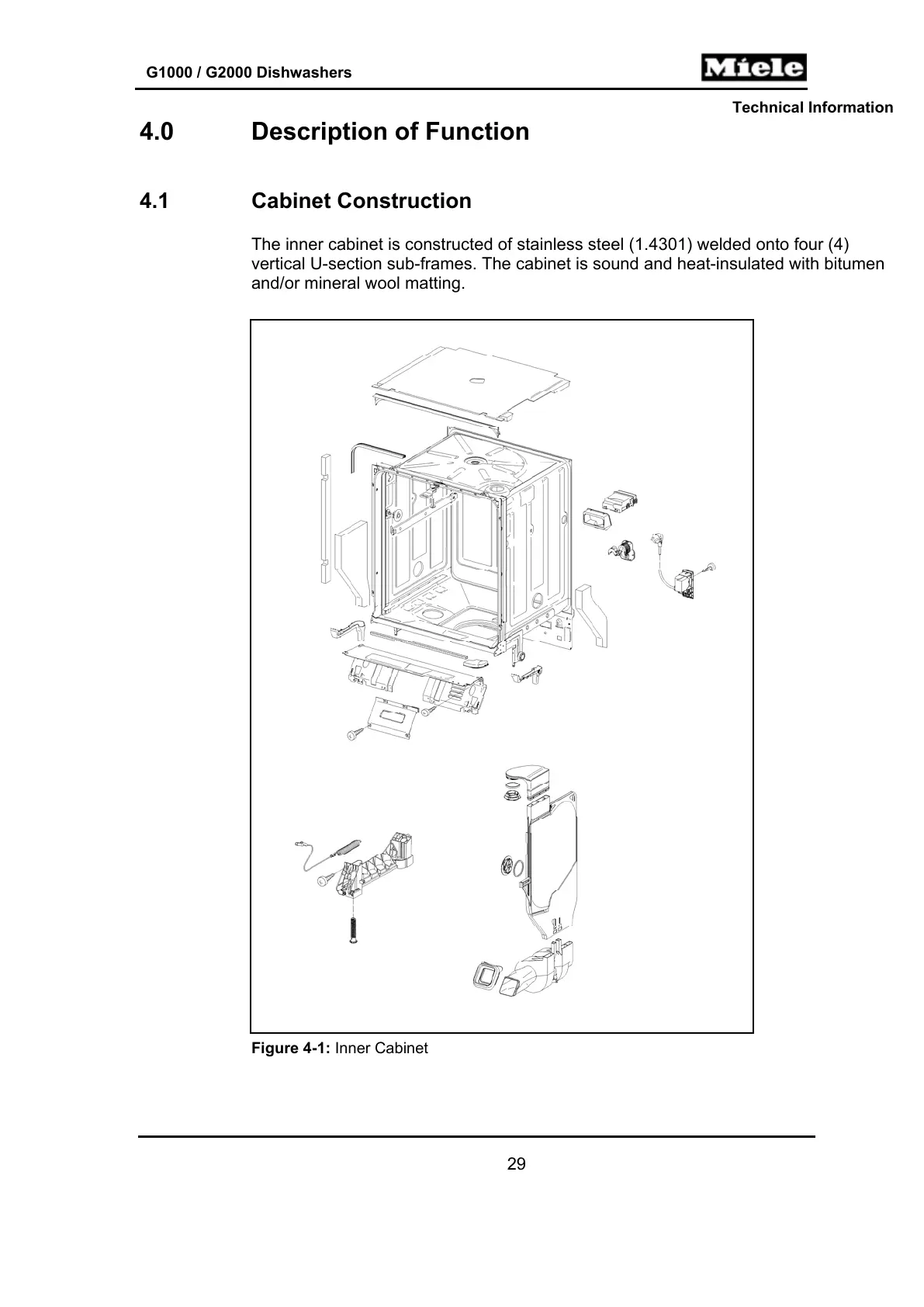

Figure 4-1: Inner Cabinet
29
