Technical Information
G1000 / G2000 Dishwashers
4.3 Water Circulation & Heating
1 Solenoid valve – Water Intake Y2 18 Soft Water Outlet to Sump
2 Ball Valve 19 Water Outlet to Salt Container
3 Water Inlet Mixer 20 Supply to Water Intake Mixer
4 Water Reservoir – Softener Reactivation 21 Non-return Device
5 Turbidity Sensor B3/10 22 Flow Meter B3/4
6 Feed Pipe – Top Spray Arm 23 Solenoid Valve – Wash Water
7 Feed Pipe – Middle Spray Arm Hardness Y5 (EGS)
8 Circulation Pump M6 + Heating R1
9 Feed to Circulation Pump
10 Feed Pipe – Bottom Spray Arm
11 Sump
12 Non-return Valve
13 Drain Pump M8
14 Salt Container
15 Water Intake from Salt Container
16 Solenoid Valve – Reactivation Y38
17 Resin Tank

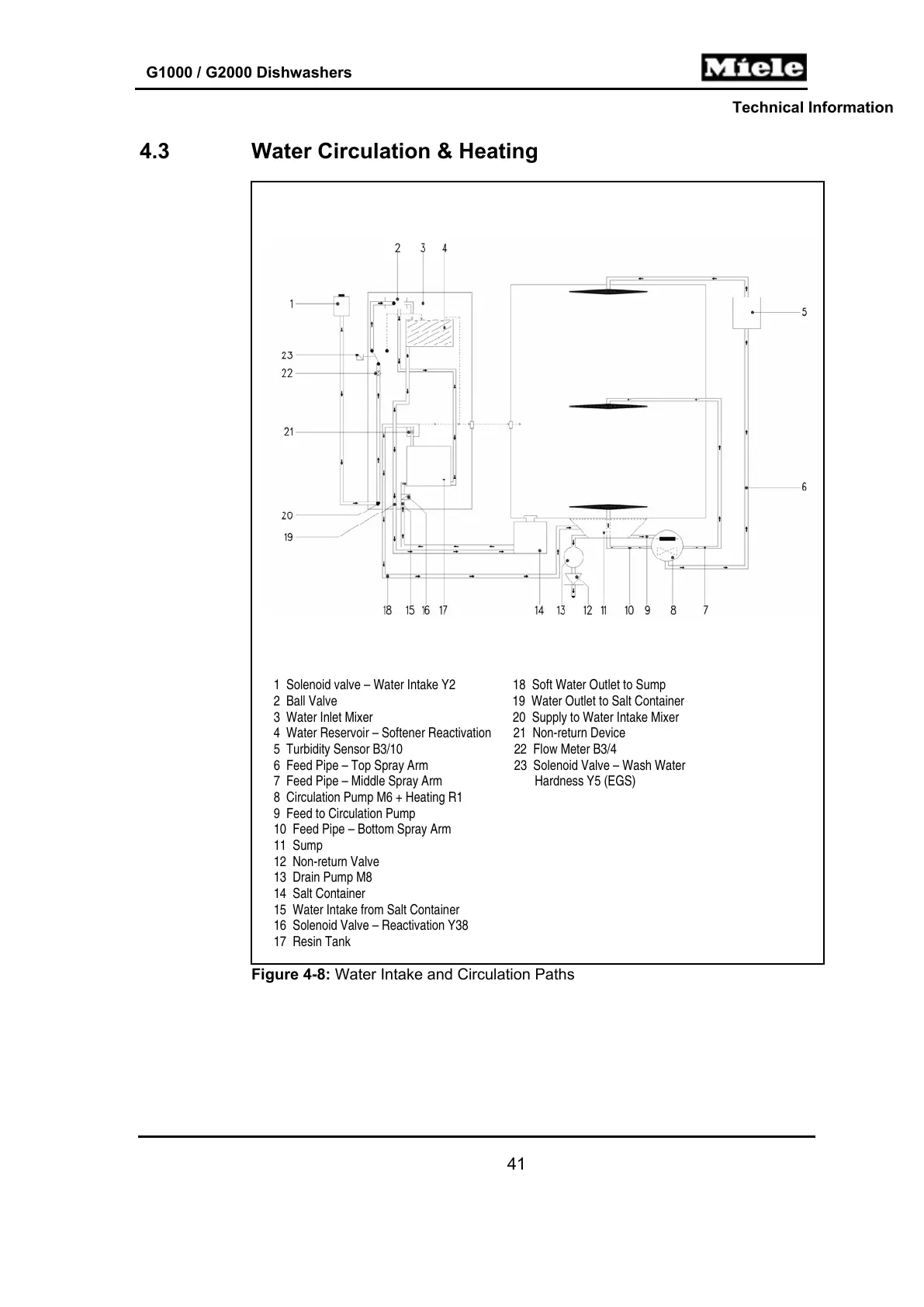

Figure 4-8: Water Intake and Circulation Paths
41
