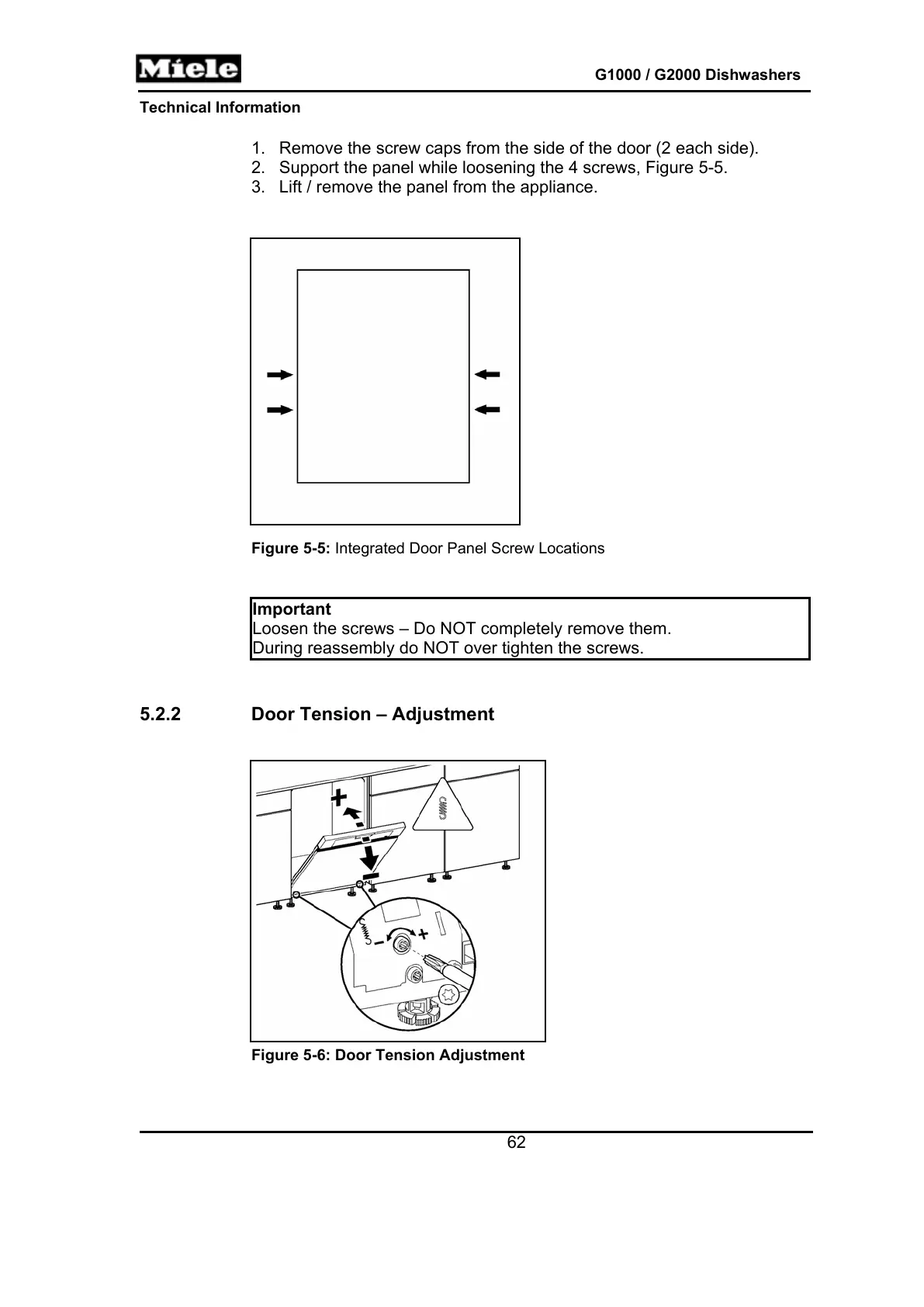

Miele G2000 - Door Tension - Adjustment

Technical Information
62
G1000 / G2000 Dishwashers
1. Remove the screw caps from the side of the door (2 each side).
2. Support the panel while loosening the 4 screws, Figure 5-5.
3. Lift / remove the panel from the appliance.
Figure 5-5: Integrated Door Panel Screw Locations
Important
Loosen the screws – Do NOT completely remove them.
During reassembly do NOT over tighten the screws.
5.2.2 Door Tension – Adjustment
Figure 5-6: Door Tension Adjustment
