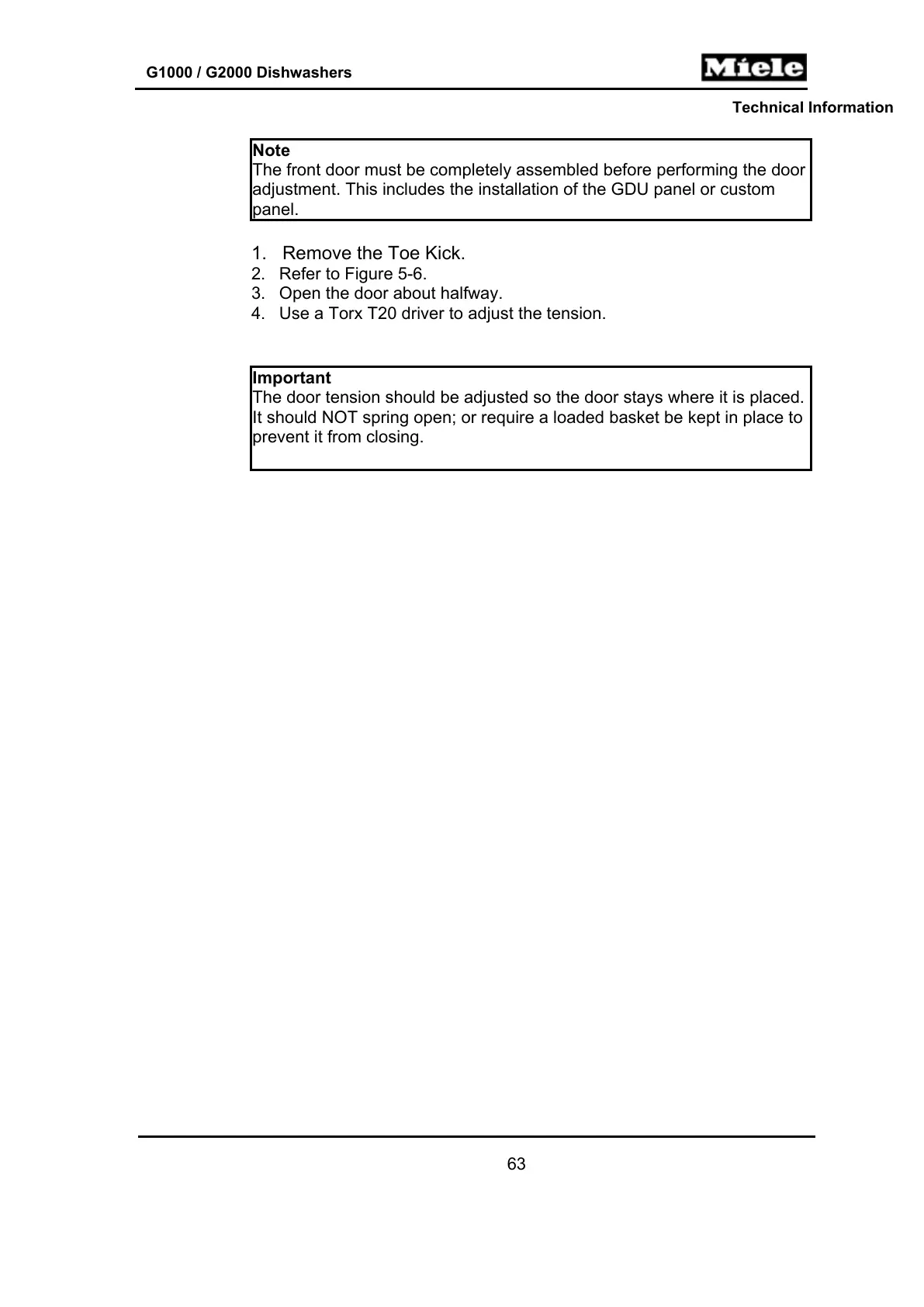

Technical Information
G1000 / G2000 Dishwashers
Note
The front door must be completely assembled before performing the door
adjustment. This includes the installation of the GDU panel or custom
panel.
1. Remove the Toe Kick.
2. Refer to Figure 5-6.
3. Open the door about halfway.
4. Use a Torx T20 driver to adjust the tension.
Important
The door tension should be adjusted so the door stays where it is placed.
It should NOT spring open; or require a loaded basket be kept in place to
prevent it from closing.
63
