Miele G2000 - Basket Runners - Removal

G1000 / G2000 Dishwashers
Technical Information
79
5. Release the retaining legs between the condenser and fan, Fig. 5-22, Item 1.
6. Pull the fan out of its connection to the condenser.

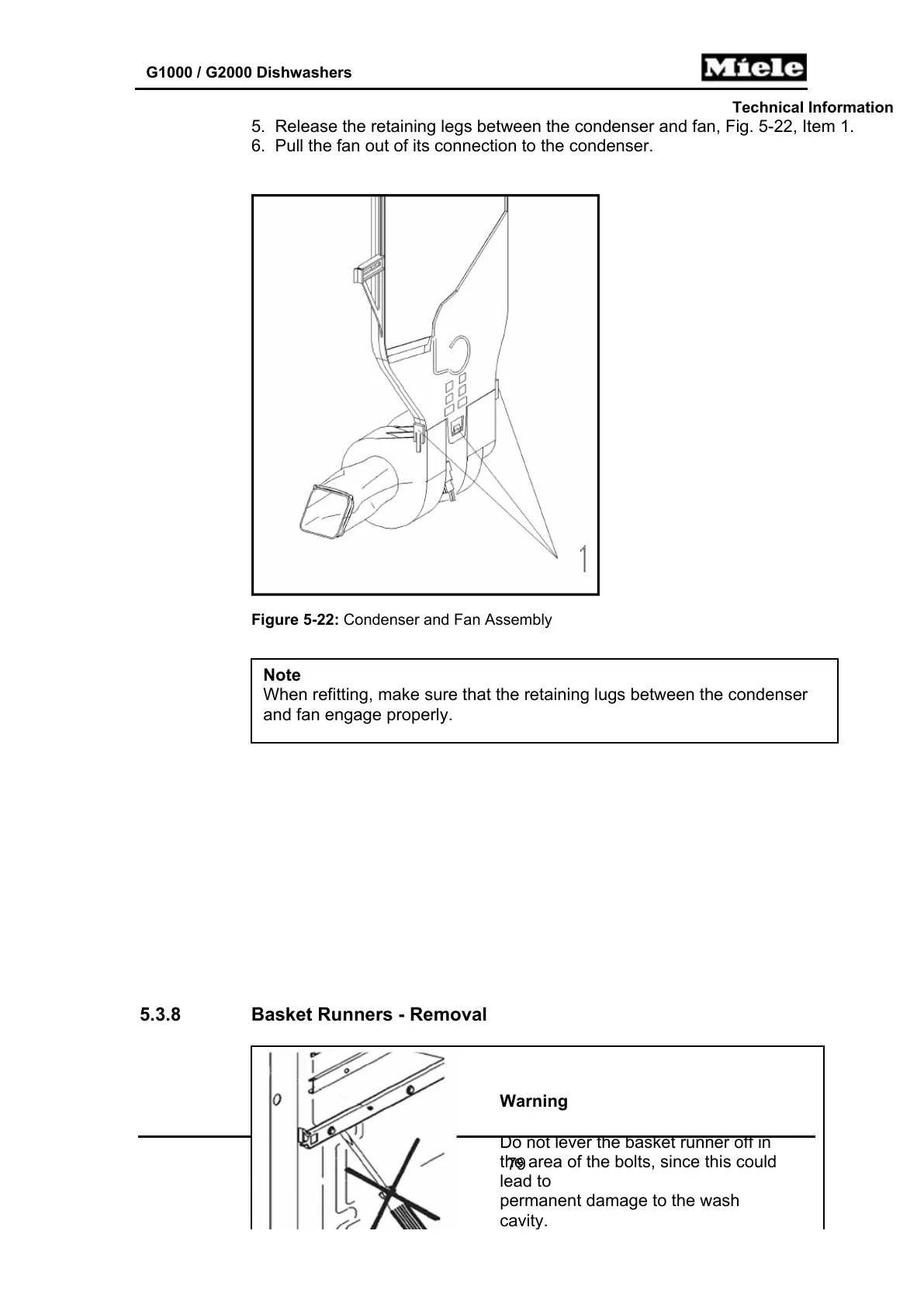

Figure 5-22: Condenser and Fan Assembly
Warning
Do not lever the basket runner off in
the area of the bolts, since this could
lead to
permanent damage to the wash
cavit
y
.
5.3.8 Basket Runners - Removal
Note
When refitting, make sure that the retaining lugs between the condenser
and fan engage properly.
