Miele G2000 - 1.0 Construction and Design; 1.1 Appliance Overview

Technical Information
G1000 / G2000 Dishwashers
1.0 Construction and Design
1.1 Appliance Overview
1.1.1 Appliance Overview – Typical Integrated Model
1 Upper Spray Arm (Not Visible)
2 Cutlery Tray (Depending On Model)
3 Upper Basket
4 Middle Spray Arm
5 Air Inlet For Drying (Depending On Model)
6 Lower Spray Arm
7 Filter Combination
8 Data Plate
9 Child Safety Lock In The Door Handle (Not Visible)
10 Rinse Aid Reservoir
11 Dual Compartment Detergent Dispenser

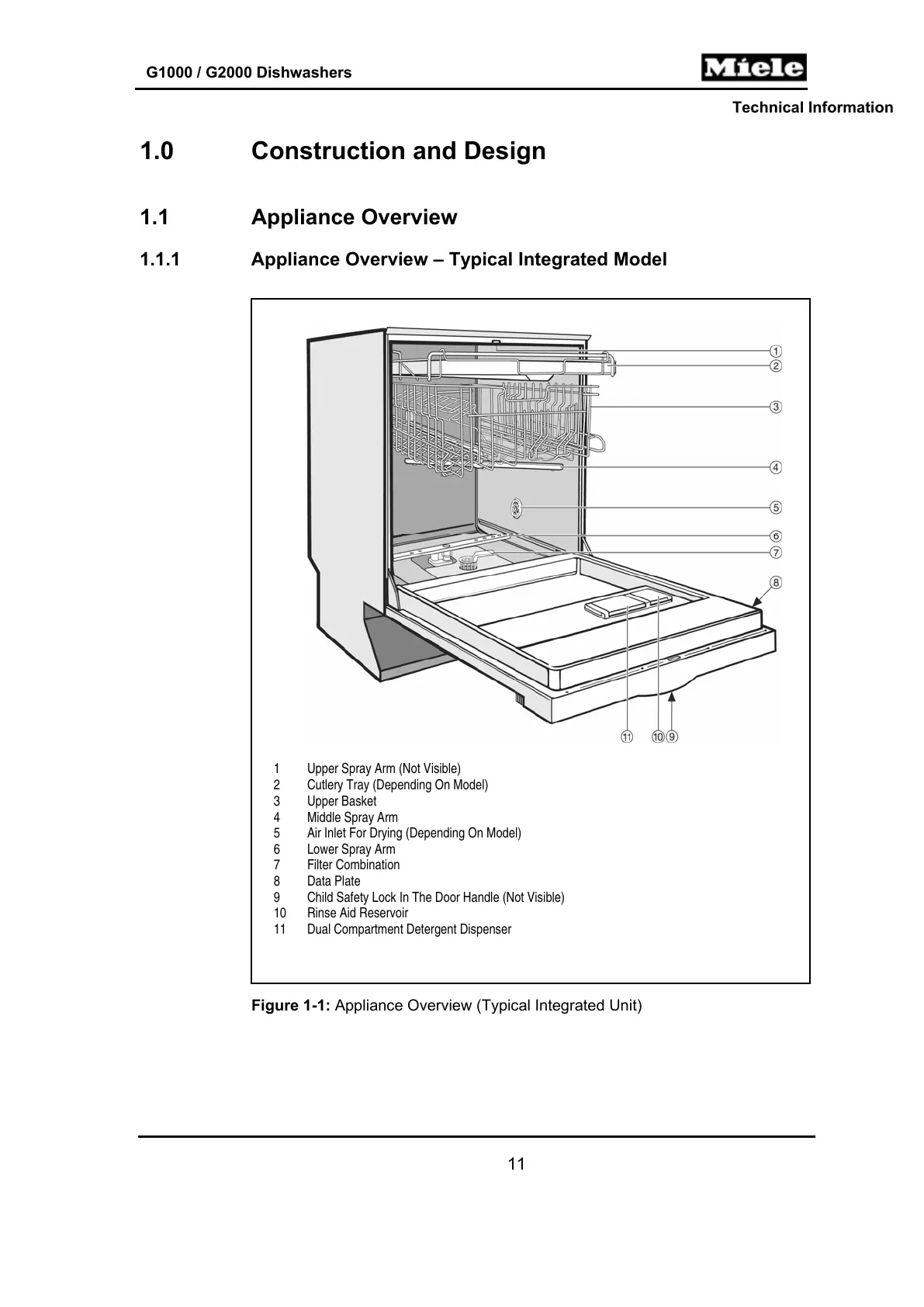

Figure 1-1: Appliance Overview (Typical Integrated Unit)
