Miele G2000 - 4.2 Water Intake

Technical Information
30
G1000 / G2000 Dishwashers
4.2 Water Intake
4.2.1 WaterProof System (WPS)
The Water Inlet Valve (Y2) consists of two (2) electro-mechanical valves mounted
within a waterproof box located at the water connection (end of the water intake
hose).
The valves are mounted in physically and electrically in series to ensure that if one
valve should fail (e.g. due to blockage caused by a foreign body) the water flow will
still be switched off by the other valve.

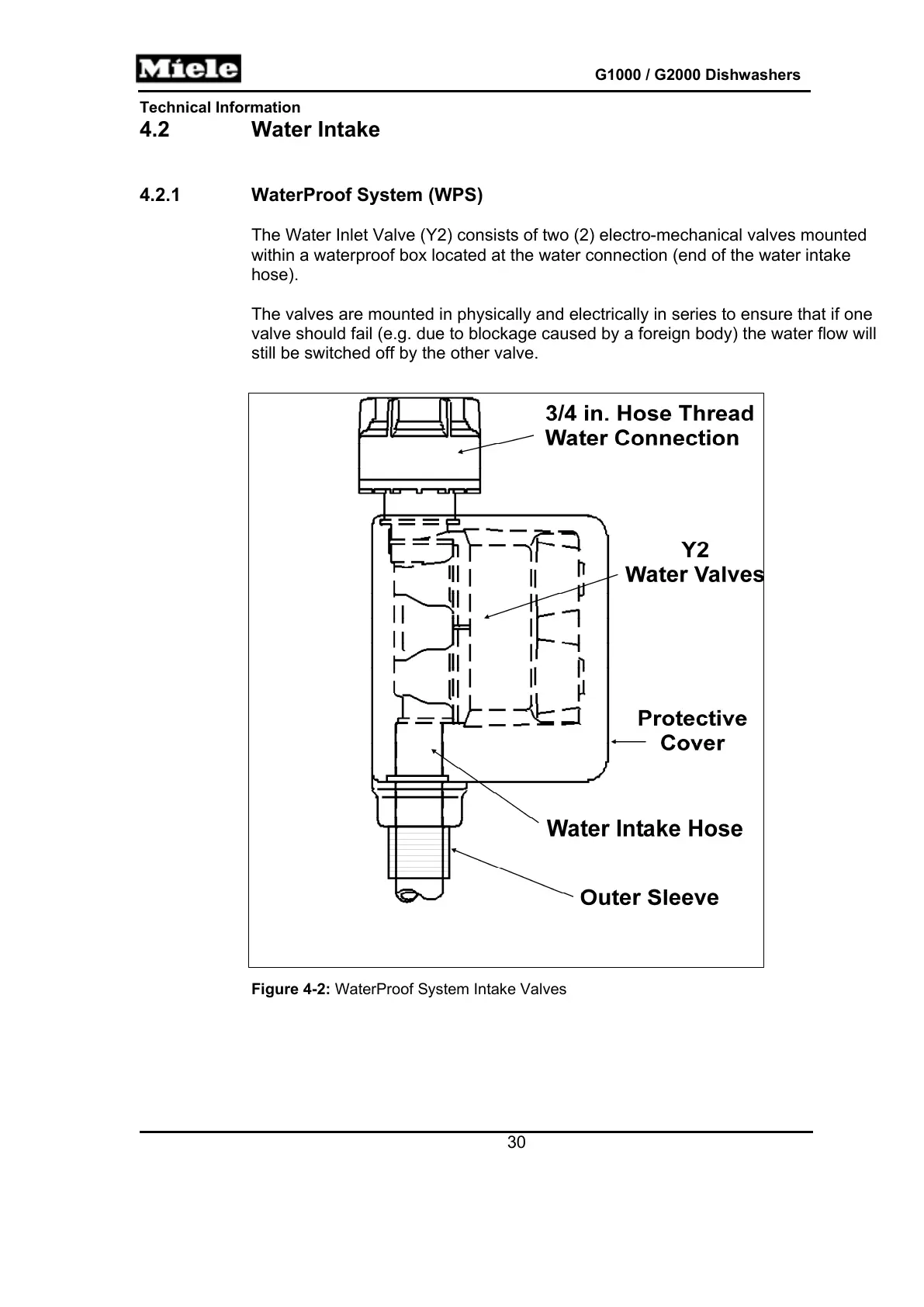

Figure 4-2: WaterProof System Intake Valves
