Technical Information
G1000 / G2000 Dishwashers

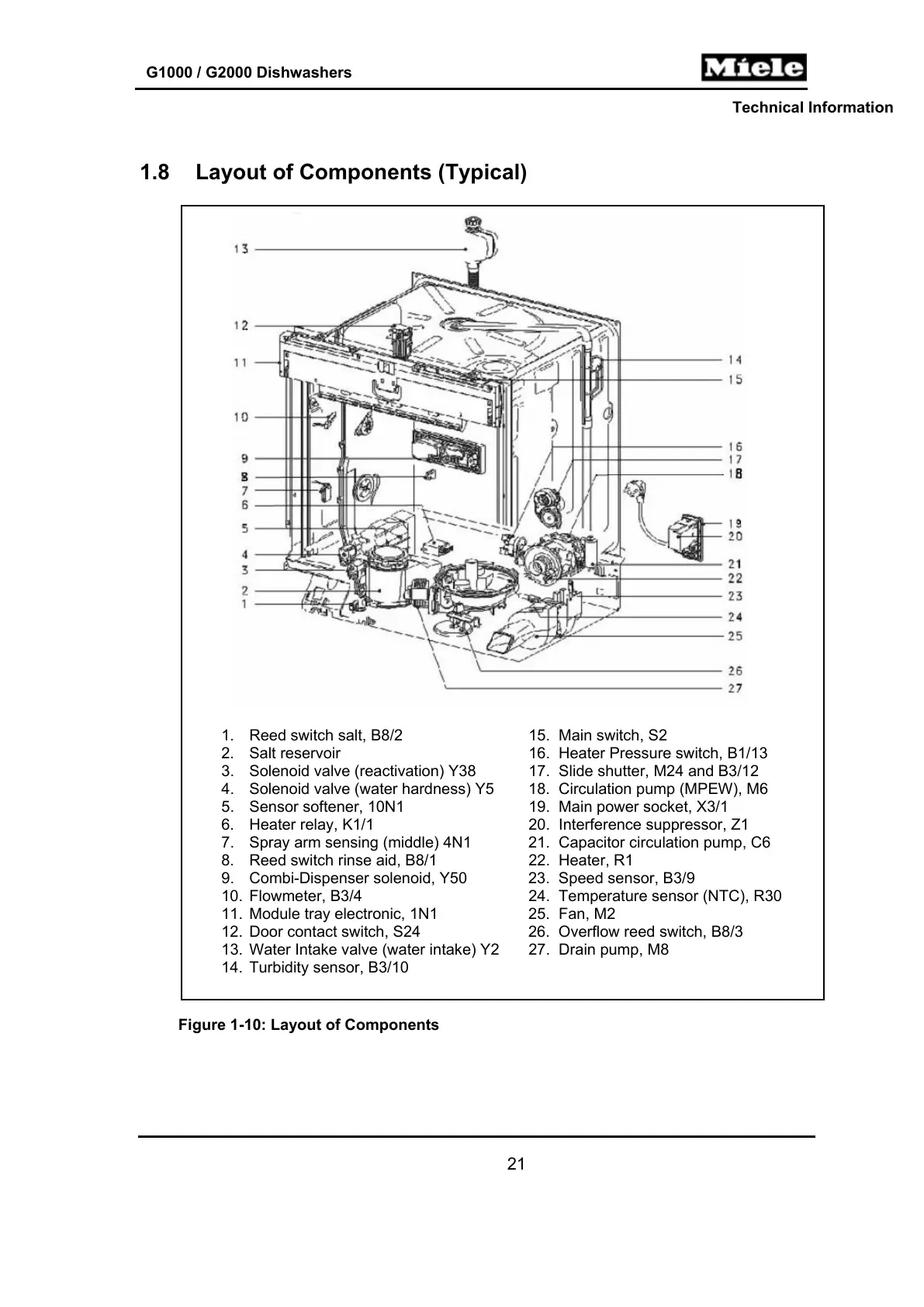

1.8 Layout of Components (Typical)
1. Reed switch salt, B8/2 15. Main switch, S2
2. Salt reservoir 16. Heater Pressure switch, B1/13
3. Solenoid valve (reactivation) Y38 17. Slide shutter, M24 and B3/12
4. Solenoid valve (water hardness) Y5 18. Circulation pump (MPEW), M6
5. Sensor softener, 10N1 19. Main power socket, X3/1
6. Heater relay, K1/1 20. Interference suppressor, Z1
7. Spray arm sensing (middle) 4N1 21. Capacitor circulation pump, C6
8. Reed switch rinse aid, B8/1 22. Heater, R1
9. Combi-Dispenser solenoid, Y50 23. Speed sensor, B3/9
10. Flowmeter, B3/4 24. Temperature sensor (NTC), R30
11. Module tray electronic, 1N1 25. Fan, M2
12. Door contact switch, S24 26. Overflow reed switch, B8/3
13. Water Intake valve (water intake) Y2 27. Drain pump, M8
14. Turbidity sensor, B3/10
Figure 1-10: Layout of Components
21
