G1000 / G2000 Dishwashers
4.4 Dispensing
4.4.1 Combination Dispenser
1 Reed Switch
2 Solenoid

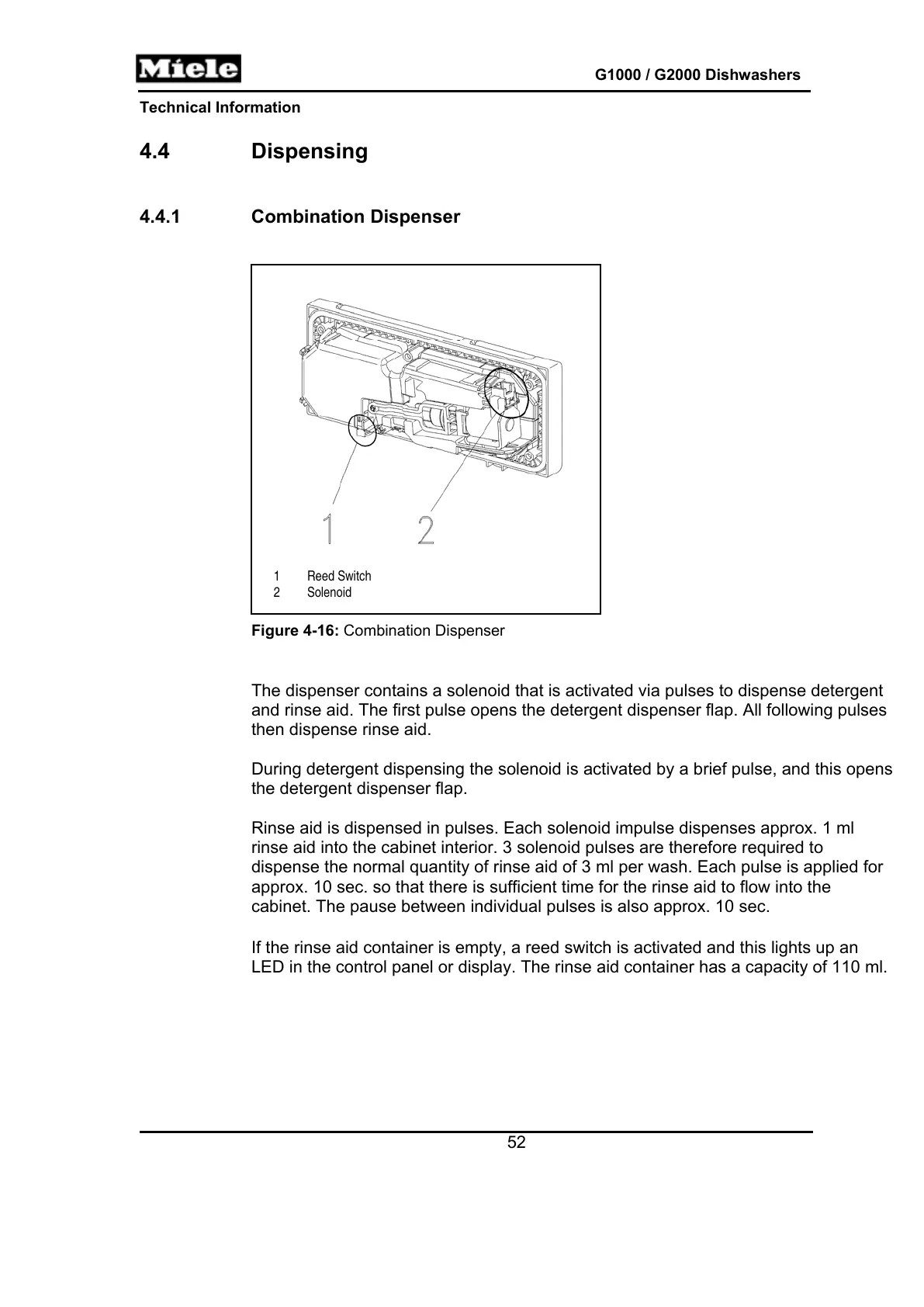

Figure 4-16: Combination Dispenser
The dispenser contains a solenoid that is activated via pulses to dispense detergent
and rinse aid. The first pulse opens the detergent dispenser flap. All following pulses
then dispense rinse aid.
During detergent dispensing the solenoid is activated by a brief pulse, and this opens
the detergent dispenser flap.
Rinse aid is dispensed in pulses. Each solenoid impulse dispenses approx. 1 ml
rinse aid into the cabinet interior. 3 solenoid pulses are therefore required to
dispense the normal quantity of rinse aid of 3 ml per wash. Each pulse is applied for
approx. 10 sec. so that there is sufficient time for the rinse aid to flow into the
cabinet. The pause between individual pulses is also approx. 10 sec.
If the rinse aid container is empty, a reed switch is activated and this lights up an
LED in the control panel or display. The rinse aid container has a capacity of 110 ml.
