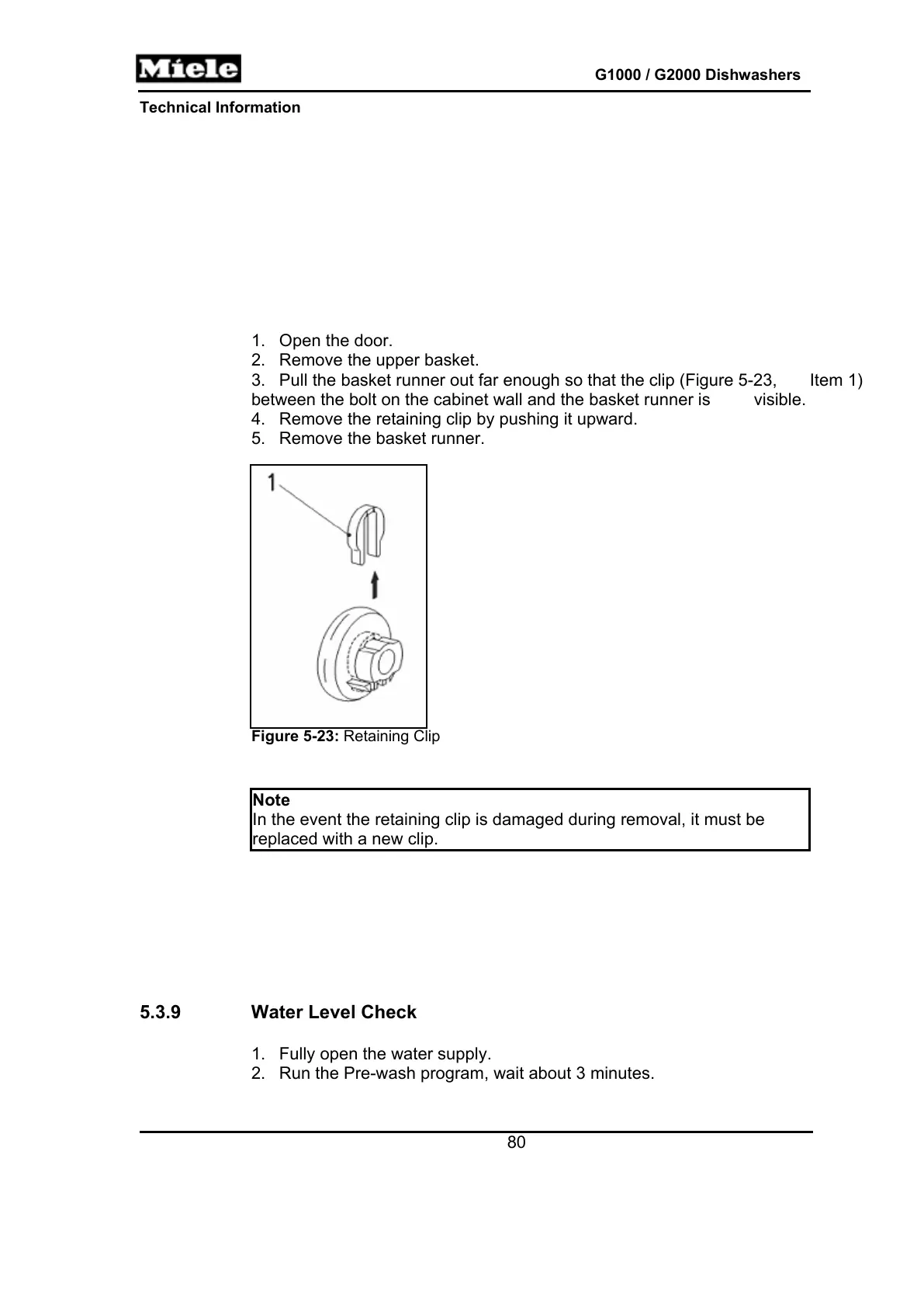

Technical Information
80
G1000 / G2000 Dishwashers
1. Open the door.
2. Remove the upper basket.
3. Pull the basket runner out far enough so that the clip (Figure 5-23, Item 1)
between the bolt on the cabinet wall and the basket runner is visible.
4. Remove the retaining clip by pushing it upward.
5. Remove the basket runner.
Figure 5-23: Retaining Clip
Note
In the event the retaining clip is damaged during removal, it must be
replaced with a new clip.
5.3.9 Water Level Check
1. Fully open the water supply.
2. Run the Pre-wash program, wait about 3 minutes.
