Miele G2000 - Steam Condenser Removal; Fan Removal

Technical Information
78
G1000 / G2000 Dishwashers

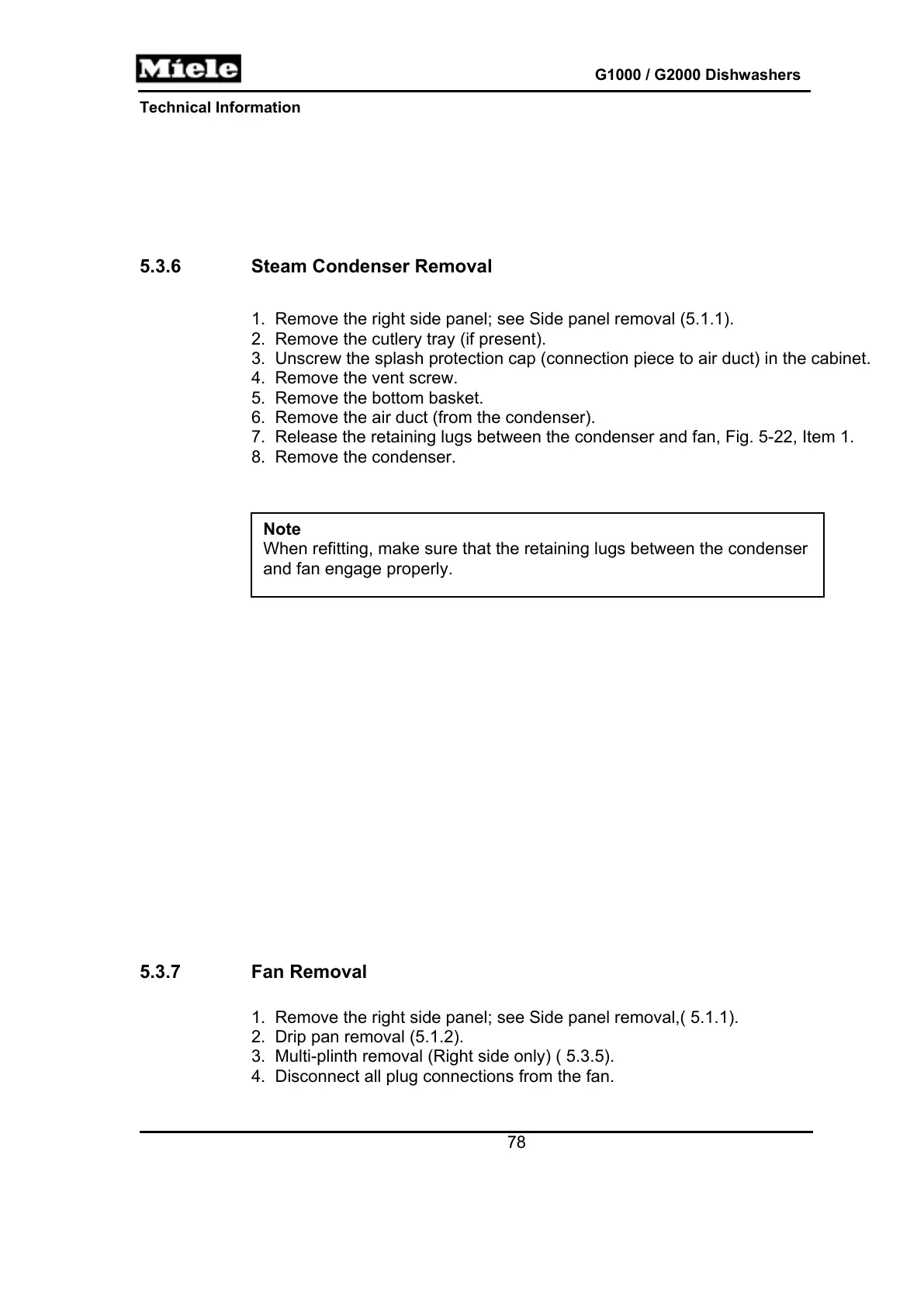

5.3.6 Steam Condenser Removal
1. Remove the right side panel; see Side panel removal (5.1.1).
2. Remove the cutlery tray (if present).
3. Unscrew the splash protection cap (connection piece to air duct) in the cabinet.
4. Remove the vent screw.
5. Remove the bottom basket.
6. Remove the air duct (from the condenser).
7. Release the retaining lugs between the condenser and fan, Fig. 5-22, Item 1.
8. Remove the condenser.
Note
When refitting, make sure that the retaining lugs between the condenser
and fan engage properly.
5.3.7 Fan Removal
1. Remove the right side panel; see Side panel removal,( 5.1.1).
2. Drip pan removal (5.1.2).
3. Multi-plinth removal (Right side only) ( 5.3.5).
4. Disconnect all plug connections from the fan.
