Technical Information
70
G1000 / G2000 Dishwashers
Note
Ensure the appliance is perfectly level.
1. Open the door.
2. Loosen the flat round screw.
3. Adjust the locking plate – as necessary.
4. Tighten the screw.

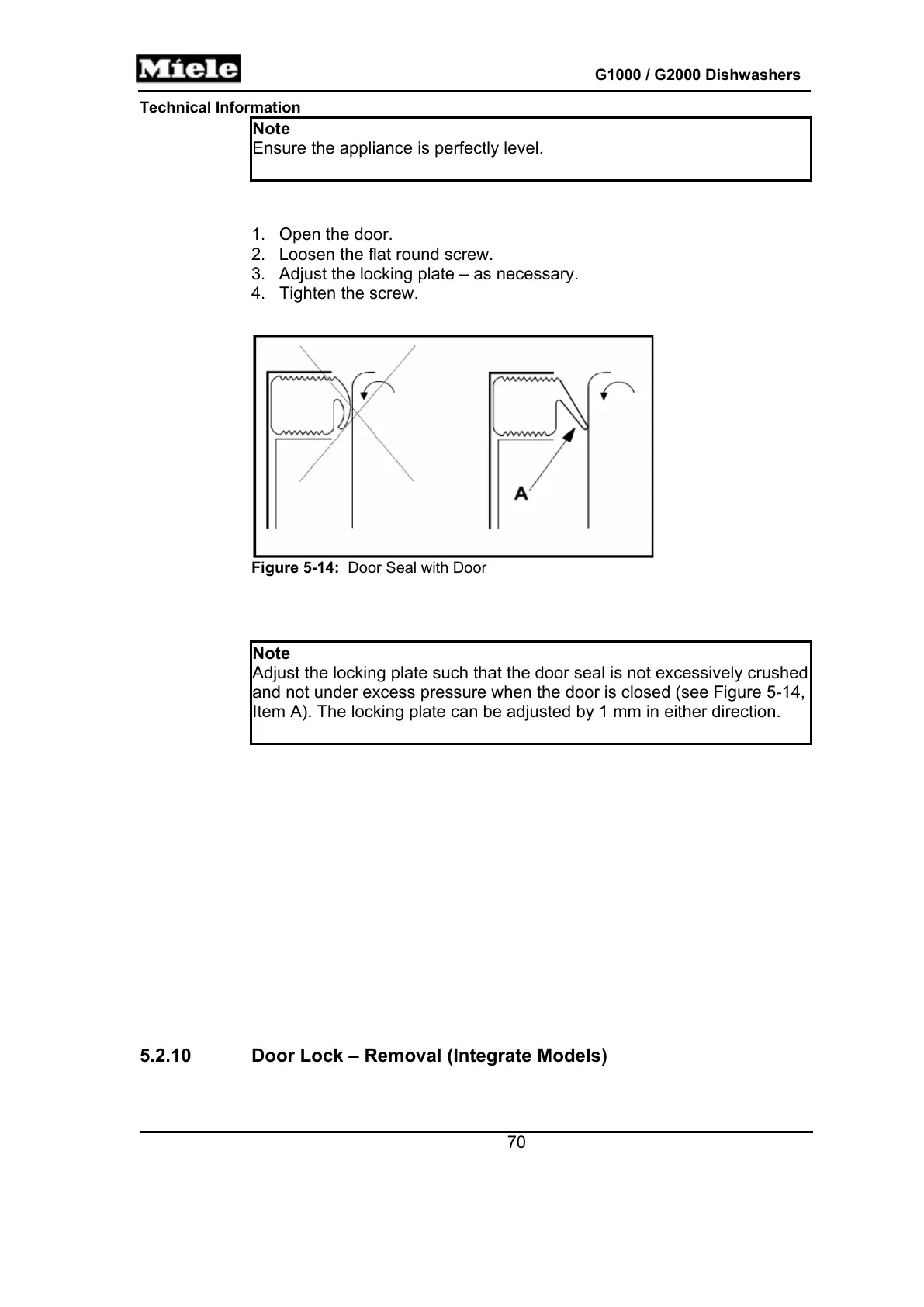

Figure 5-14: Door Seal with Door
Note
A
djust the locking plate such that the door seal is not excessively crushed
and not under excess pressure when the door is closed (see Figure 5-14,
Item A). The locking plate can be adjusted by 1 mm in either direction.
5.2.10 Door Lock – Removal (Integrate Models)
