Technical Information
G1000 / G2000 Dishwashers

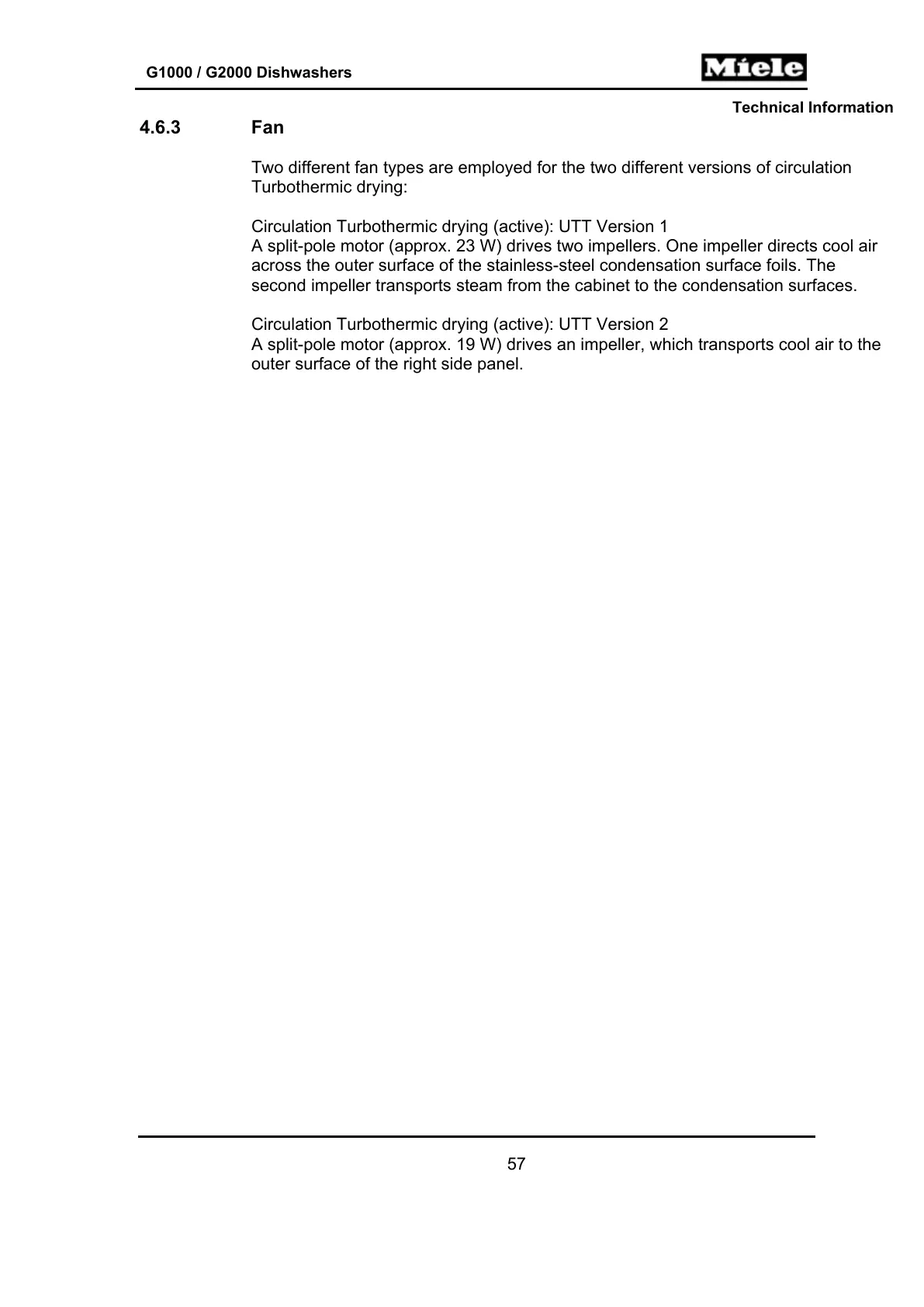

4.6.3 Fan
Two different fan types are employed for the two different versions of circulation
Turbothermic drying:
Circulation Turbothermic drying (active): UTT Version 1
A split-pole motor (approx. 23 W) drives two impellers. One impeller directs cool air
across the outer surface of the stainless-steel condensation surface foils. The
second impeller transports steam from the cabinet to the condensation surfaces.
Circulation Turbothermic drying (active): UTT Version 2
A split-pole motor (approx. 19 W) drives an impeller, which transports cool air to the
outer surface of the right side panel.
57
