Miele G2000 - Outer Door Panel - Removal

Technical Information
64
G1000 / G2000 Dishwashers
5.2.3 Outer Door Panel – Removal
Caution
Support the outer panel while removing the retaining screws.
1. Remove the front panel (5.2.1).
2. Refer to Figure 5-7.
3. Open the door and remove the countersunk screws (Item 1) from the perimeter
of the door.
4. Close the door and remove the door outer panel.

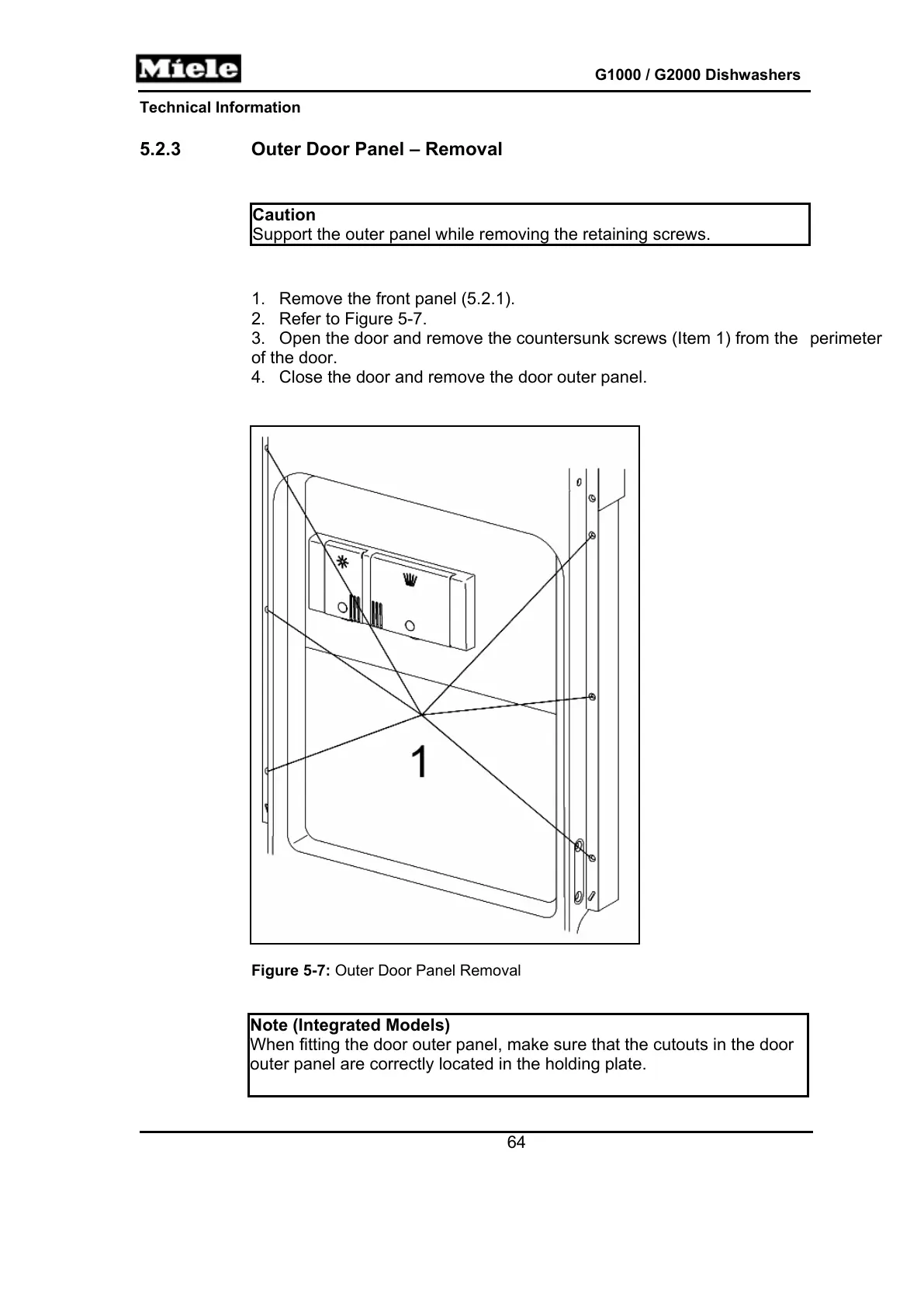

Figure 5-7: Outer Door Panel Removal
Note (Integrated Models)
When fitting the door outer panel, make sure that the cutouts in the door
outer panel are correctly located in the holding plate.
