Miele G2000 - Door Switch - Replacement (Integrated Models)

Technical Information
G1000 / G2000 Dishwashers
1. Remove the outer door panel (5.2.3).
2. Remove the retaining screw, Figure 5-15 - Item 1.
3. Press down the retaining lugs with a screwdriver, Figure 5-15 - Item 2.
4. Pull the door lock slightly to the front.
5. Remove the side screws from the inner door panel.
6. Remove the holding plate.
7. Remove the door lock from the holding plate.
8. Disconnect all plugs.

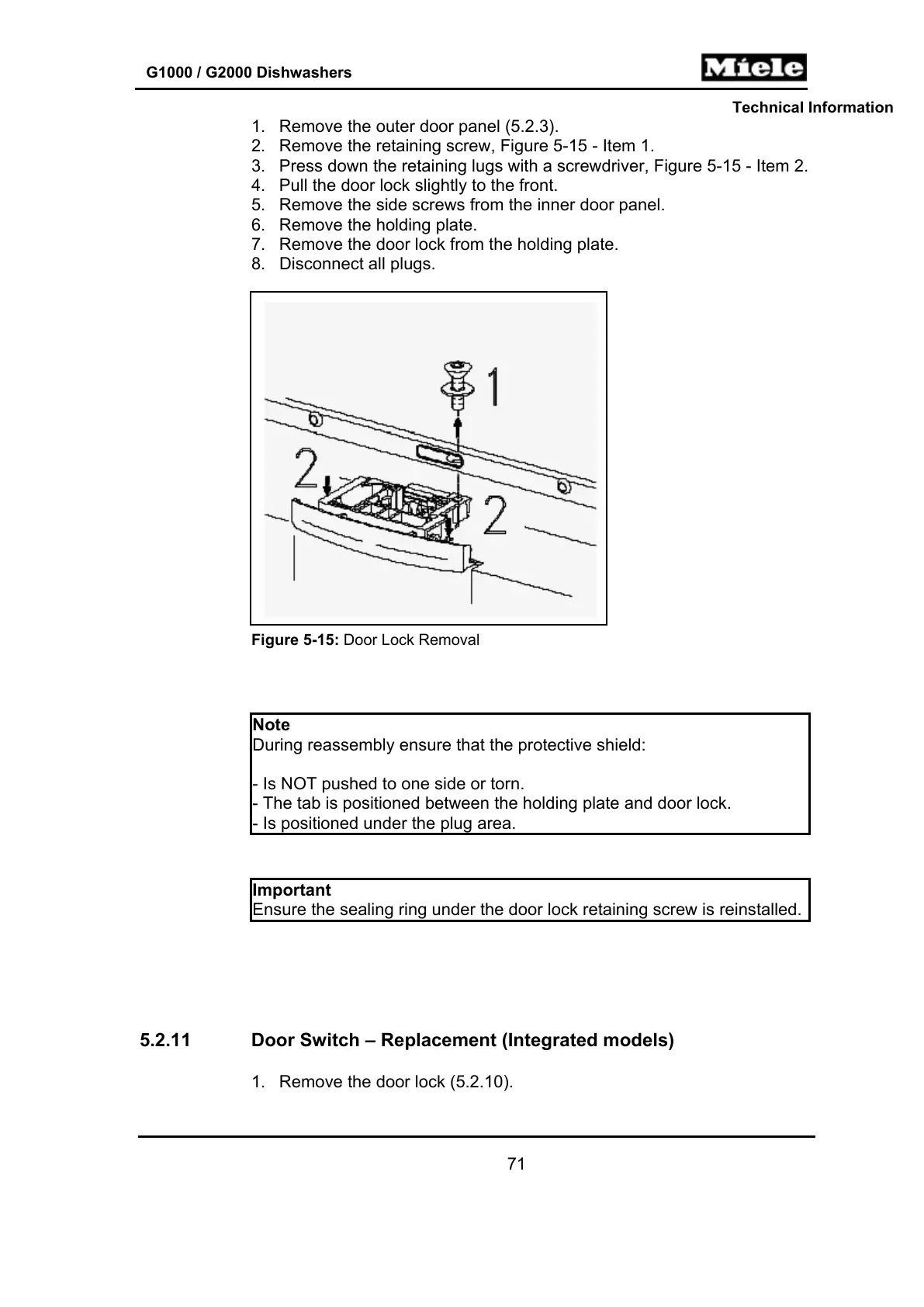

Figure 5-15: Door Lock Removal
Note
During reassembly ensure that the protective shield:
- Is NOT pushed to one side or torn.
- The tab is positioned between the holding plate and door lock.
- Is positioned under the plug area.
Important
Ensure the sealing ring under the door lock retaining screw is reinstalled.
5.2.11 Door Switch – Replacement (Integrated models)
1. Remove the door lock (5.2.10).
71
