Miele G2000 - Cable Holder - Removal; Bottom Door Seal - Removal

Technical Information
68
G1000 / G2000 Dishwashers
1. Remove the outer door panel (5.2.3).
2. Disconnect the connections from the dispenser
3. Remove the retaining screws (Figure 5-12, Item 1).
4. Release the retaining clips (2 on top & 1 on bottom) and press out the dispenser
unit.
5. Ensure the new dispenser functions correctly using the service mode.

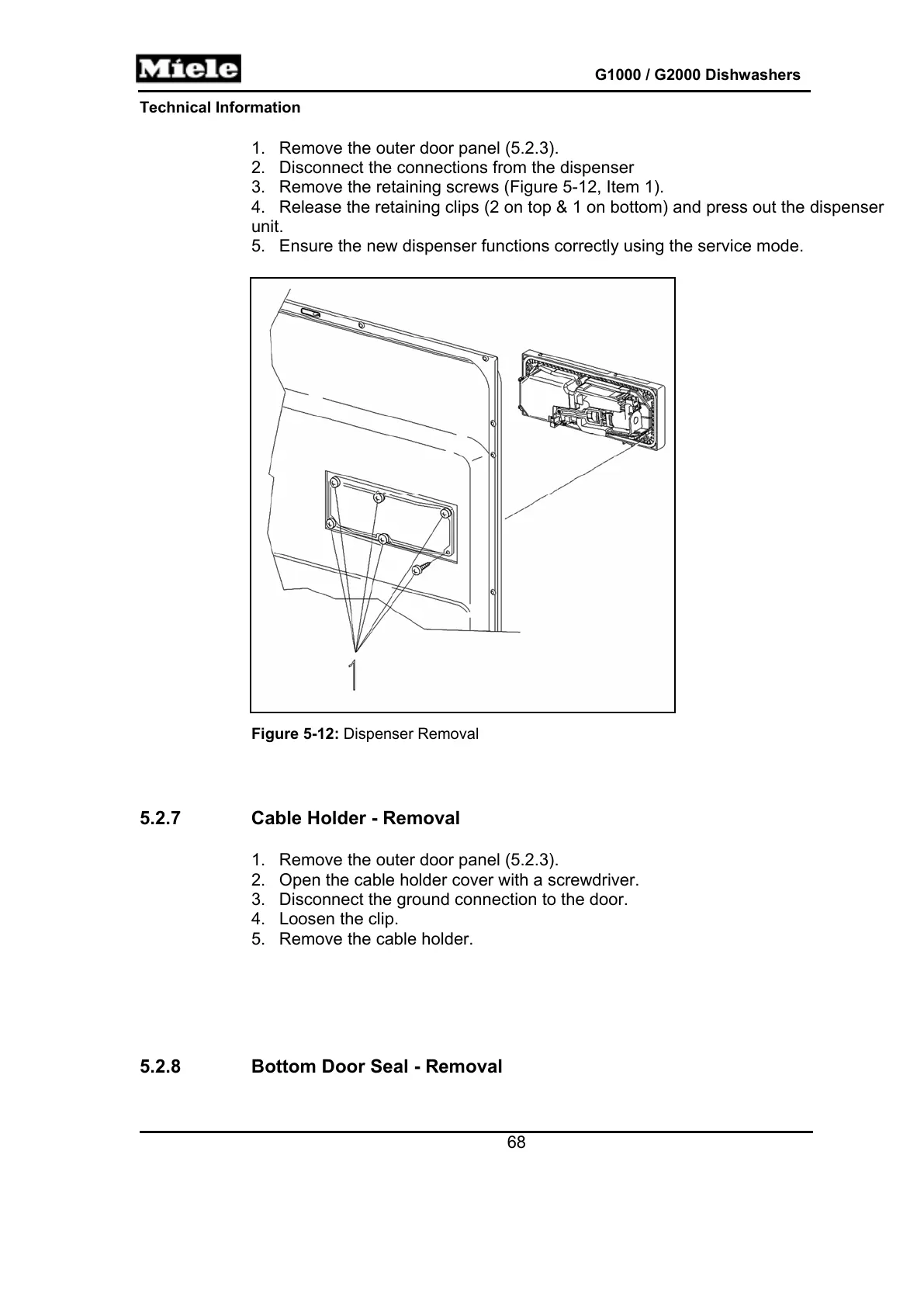

Figure 5-12: Dispenser Removal
5.2.7 Cable Holder - Removal
1. Remove the outer door panel (5.2.3).
2. Open the cable holder cover with a screwdriver.
3. Disconnect the ground connection to the door.
4. Loosen the clip.
5. Remove the cable holder.
5.2.8 Bottom Door Seal - Removal
