Technical Information
66
G1000 / G2000 Dishwashers
Note
Door hinges must be replaced in pairs.
1. Remove the outer door panel (5.2.3).
2. Remove the right and left side panels (5.1.1).
3. Close the door.
4. Relax the tension in the ropes of the tension springs.
5. Refer to Figure 5-9.
6. Disconnect the ropes from the tension springs - Item 1 (Use special tool Miele
Mat. # 05054690 to decrease tension to spring).
7. Open the hinge by bending it upward - Item 2.
8. Disconnect the ground cable.
9. Remove the cable.
10. Unhinge the door and place it onto pad.
11. Remove the seal at door.

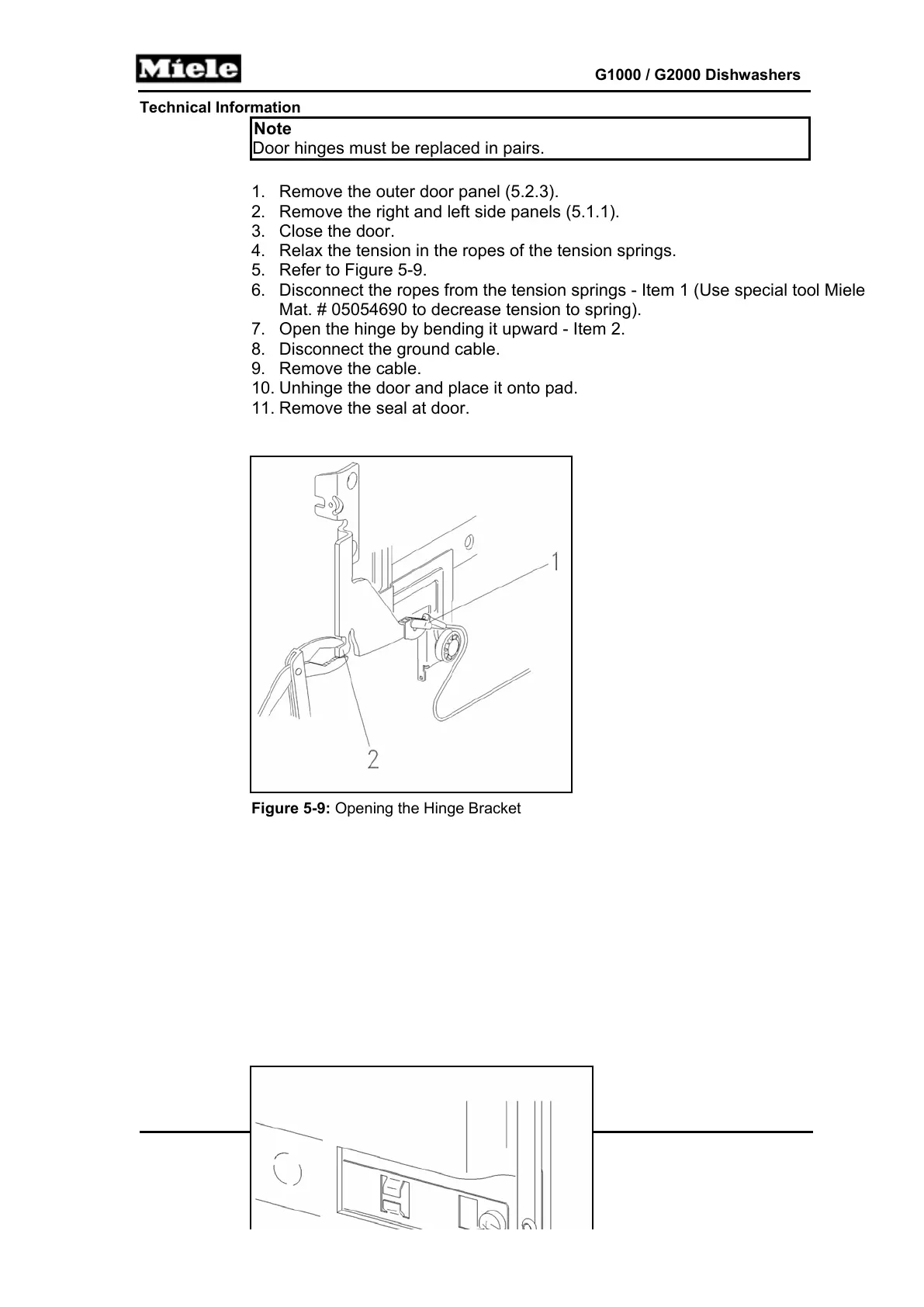

Figure 5-9: Opening the Hinge Bracket
