G1000 / G2000 Dishwashers
2. Pump housing cap removal (5.4.15.1).
3. Slide shutter removal (5.4.15.2).

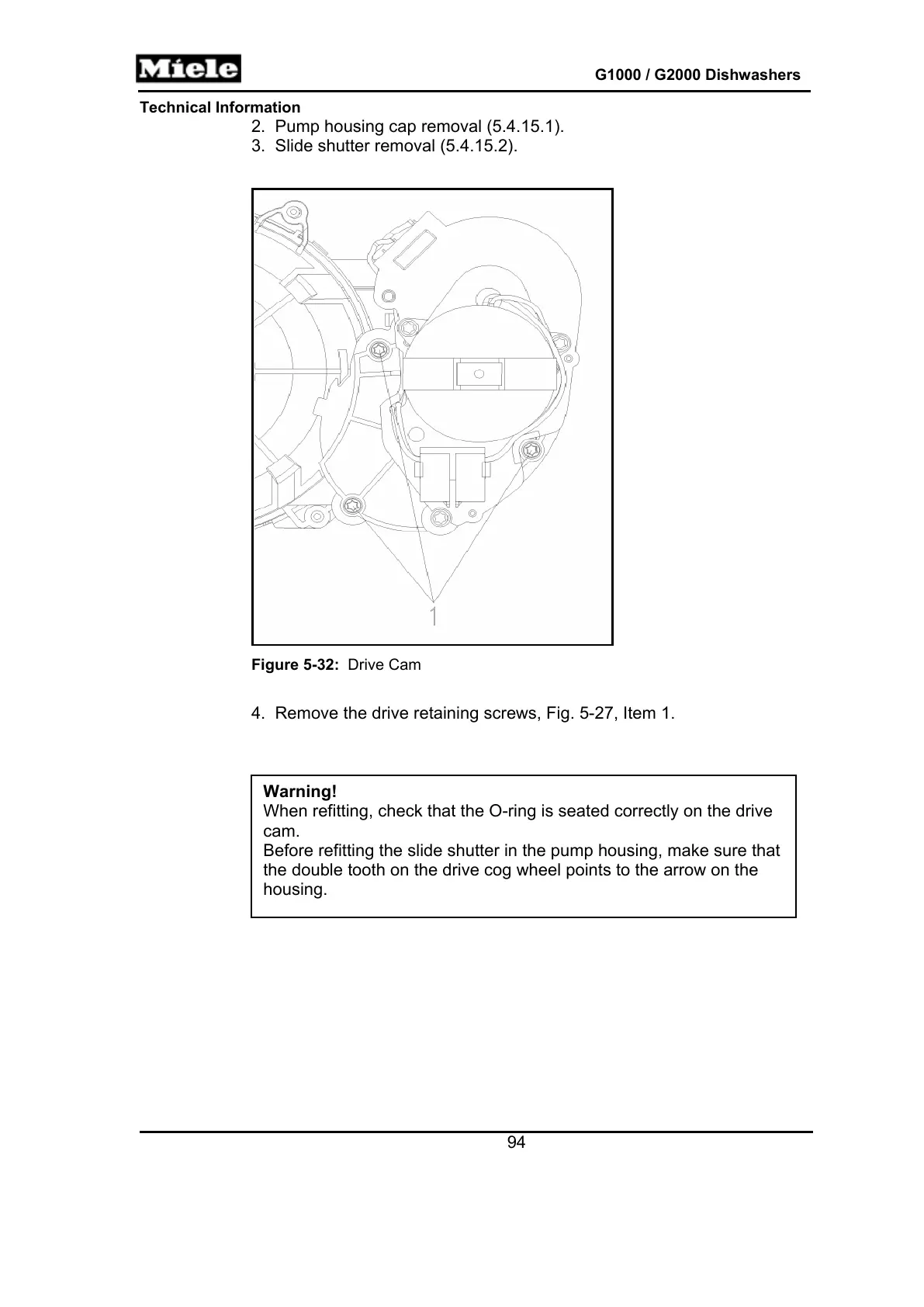

Figure 5-32: Drive Cam
4. Remove the drive retaining screws, Fig. 5-27, Item 1.
Warning!
When refitting, check that the O-ring is seated correctly on the drive
cam.
Before refitting the slide shutter in the pump housing, make sure that
the double tooth on the drive cog wheel points to the arrow on the
housing.
