Technical Information

T 80xx

2 T 8002, T 8003, T 8005

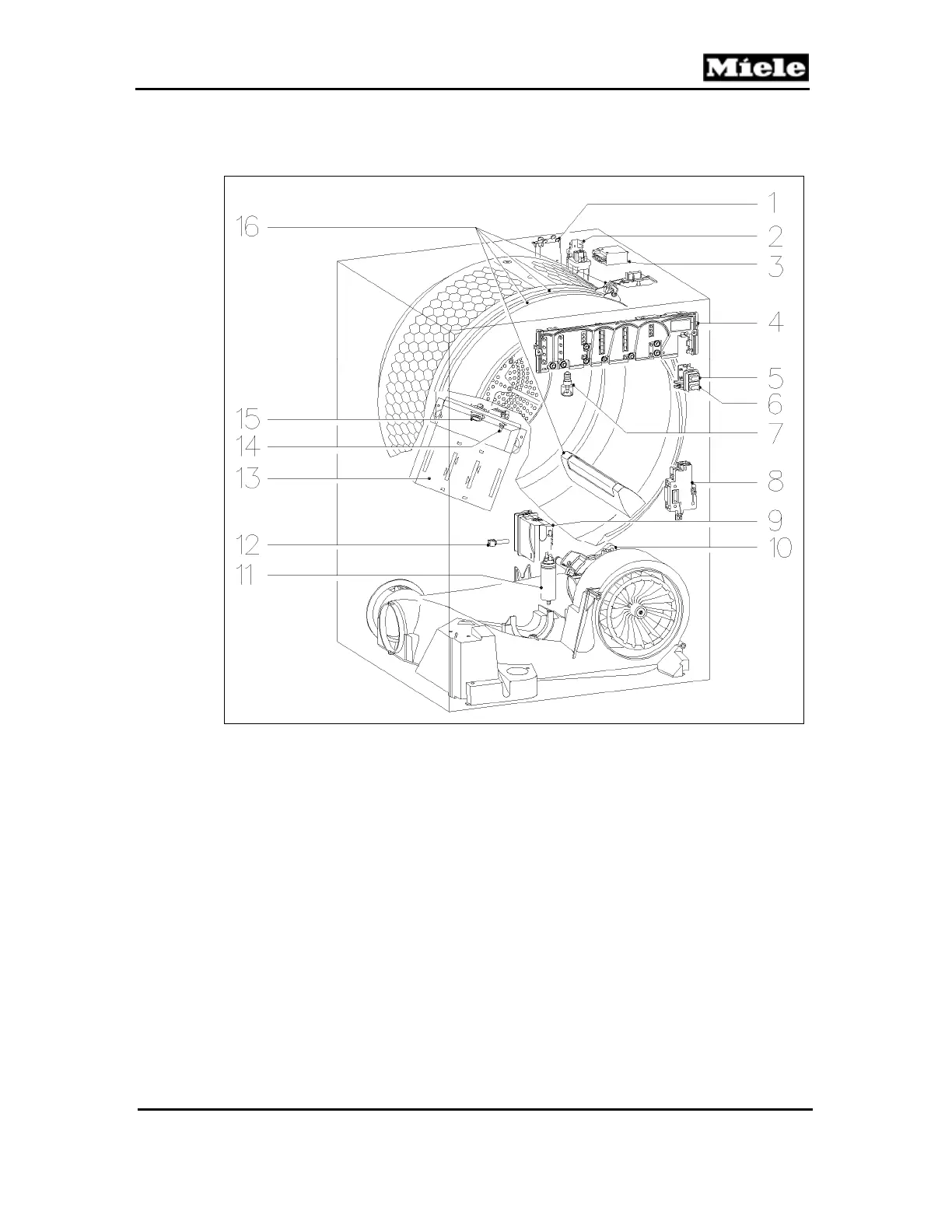

Figure D-2: T 8002/T 8003/T 8005 Component Layout

1 (2K1/1) Heater relay 2 9 (2N1) RemoteVision interface

2 (Z/1) Interference suppression capacitor 10 (M5) Motor

3 (1K1/1) Heater relay 1 11 (C5) Motor capacitor

4 (1N1) Electronic (EPWL) 12 (1R30) Drying-air NTC

5 (S2) Power (on/off) switch 13 (R1, R2) Heater bank

6 (S4) Door pushbutton (mechanical via Bowden

cable)

14 (2R30) Heater bank NTC

7 (H3/6) Drum light 15 (F2) Fuse

8 (A2) Door lock 16 (B3/1) Residual-moisture sensor assembly

Table of Contents2
Warning and Safety Instructions6
General Information6
Fire Danger Due to Excessive Lint6
Restoring the Ground Connection after Dismantling the Front and Side Panels7
Modification History8
C Technical Data9
Table C-1: Technical Data, Novotronic IV (Single-Board Electronic)9
D Layout of Electrical Components10
Optical Interface10
Figure D-1: Optical Interface for MDU10
8002, T 8003, T 800511
Figure D-2: T 8002/T 8003/T 8005 Component Layout11
8012 C, T 8013 C12
Figure D-3: T 8012 C/T 8013 C Component Layout12
8019 CI13
Figure D-4: T 8019 CI Component Layout13
8023 C14
Figure D-5: T 8023 C Component Layout14
Casing, Front Panel15
Service15
Lid Removal15
Figure 010-1: Lid Removal15
Toekick Removal16
Removing the Front Panel16
Side Panel Removal16
Metal Support Bracket Removal16
Figure 010-2: Metal Support Bracket17
Door, Lock18
Function18
Door Lock (A2)18
Service18
Door Assembly Removal18
Door Disassembly18
Removing the Door Lock19
Figure 020-1: Door Panel Retainers19
Figure 020-2: Door Cap Screws19
Figure 020-3: Door Lock Removal20
Drum, Rear Bearing, Residual-Moisture Sensor, Heater Bank21
Technical Data22
Table 030-1: Technical Data22
Function23
Residual Moisture Measurement23
Drying-Air NTC (1R30)23
Heater Bank NTC (2R30)23
Table 030-2: Heater Bank and Drying-Air NTC Resistance Values23
Interior Drum Light (H3/6)24
Fault Repair24
Temperature Limiter (Thermostat) F2 Has Tripped24
Service25
Heater Bank Removal25
Figure 030-1: Heater Bank Removal26
Heater Bank NTC Removal27
Temperature Limiter Removal27
Rear Bearing Removal27
Figure 030-2: Similar Illustration. some Models Have Only One Temperature Limiter27
Figure 030-3: Bearing Housing Attachment28
Figure 030-4: Rear Bearing28
Residual Moisture Sensor Removal29
Lightbulb Replacement29
Figure 030-5: Residual Moisture Sensor29
Drive, Fan30
Technical Data30
Figure 040-1: Drive/Fan - T 8002, T 8003, T 800530
Table 040-1: Fan and Drive Data30
Figure 040-2: Drive/Fan - T 8012 C, T 8013 C, T 8023 C31
Figure 040-3: Drive/Fan - T 8019 CI31
Function32
Preferred Orientation/Counter Orientation32
Service32
Drum Rib Removal32
Contact Strip Removal32
Fan Impeller Replacement32
Figure 040-4: Drum Rib32
Figure 040-5: Fan Impeller Removal33
Motor/Drive Replacement34
Figure 040-6: Motor and Drive Belt35
Fill Ring, Air Shield, Front Bearing36
Service37
Fill-Ring NTC Removal37
Air Shield Removal37
Figure 050-1: Air Shield37
Air Shield Installation38
Extractor Module Replacement38
Figure 050-2: Condensate Box Seal38
Condensate Box39
Function40
Heat Exchanger40
Service40
Condensate Box Removal40
Figure 060-1: Condensate Box40
Condensate Pump41
Technical Data42
Service42
Rear Service Panel Removal42
Condensate Pump Removal42
Figure 070-1: Rear Service Panel42
Table 070-1: Technical Data42
Figure 070-2: Condensate Pump43
Fascia Panel, Electronic44
Technical Data45
Function45
Programming Functions45
Table 090-1: Technical Data45
Table 090-2: Residual Moisture Level Adjustment - Normal Wash45
Table 090-3: Residual Moisture Level Adjustment - Wrinkle-Free45
Service Functions46
Overriding the Time Control47
Load Recognition47
Residual-Moisture Sensing47
Heater (R1, R2) Safety Function48
Insufficient-Air Detection48
Dryer Function after a Power Interruption48
Fault Repair48
Child Lock" LED Flashes48
End/Anti-Crease" LED Lights up49
Container" LED Lights up49
Filter/Vent" LED Lights up50
All Leds Flash/Demo Mode Active50
F0 - no Fault51
F1 - Short Circuit in Heater Bank NTC (2R30)51
F2 - Open Circuit in Heater Bank NTC (2R30)51
F3 - Short Circuit in Fill-Ring NTC (1R30)52
F4 - Open Circuit in Fill-Ring NTC (1R30)52
F41 - Electronic Fault (Faulty Eeprom/Faulty Data)53
F43 - Wrong Model Detected53
F50 - Drive Stalls and Heater Is on for 3 Seconds53
F55 - Overriding Time Limit Exceeded, Approximately 180 Minutes54
F66 - Air Leakage55
Laundry Is Overdried/F55 (Overriding Time Limit Exceeded)55
Appliance Not Functioning/Wrong Version Detected55
Service56
Programming Mode Summary56
Activating/Deactivating the Demonstration Mode57
Table 090-4: Programming Mode Summary57
Service Mode Summary58
Table 090-5: Service Mode Summary60
Removing the Fascia Panel61
Control/Power Electronic Removal61
Figure 090-1: Removing the Fascia Panel61
Electronics Support Bracket (Plastic) Removal62
Figure 090-2: Control/Power Electronic Screws62
Figure 090-3: Pushbutton Switch Assembly62
Figure 090-4: Plastic Support Bracket63
Electrical Components64
Service64
Heater Relay (1K1/1, 2K1/1) Removal64
Remotevision Module Removal64
Technical Service Bulletins65
Dryer Venting Information65
Laundry Detergent Notice: Purex Complete 3-In1 Laundry Sheets67
Dryer Duct Length67
5.5-Kilo Dryer Electrical Requirements70
