Technical Information
19
T 80xx

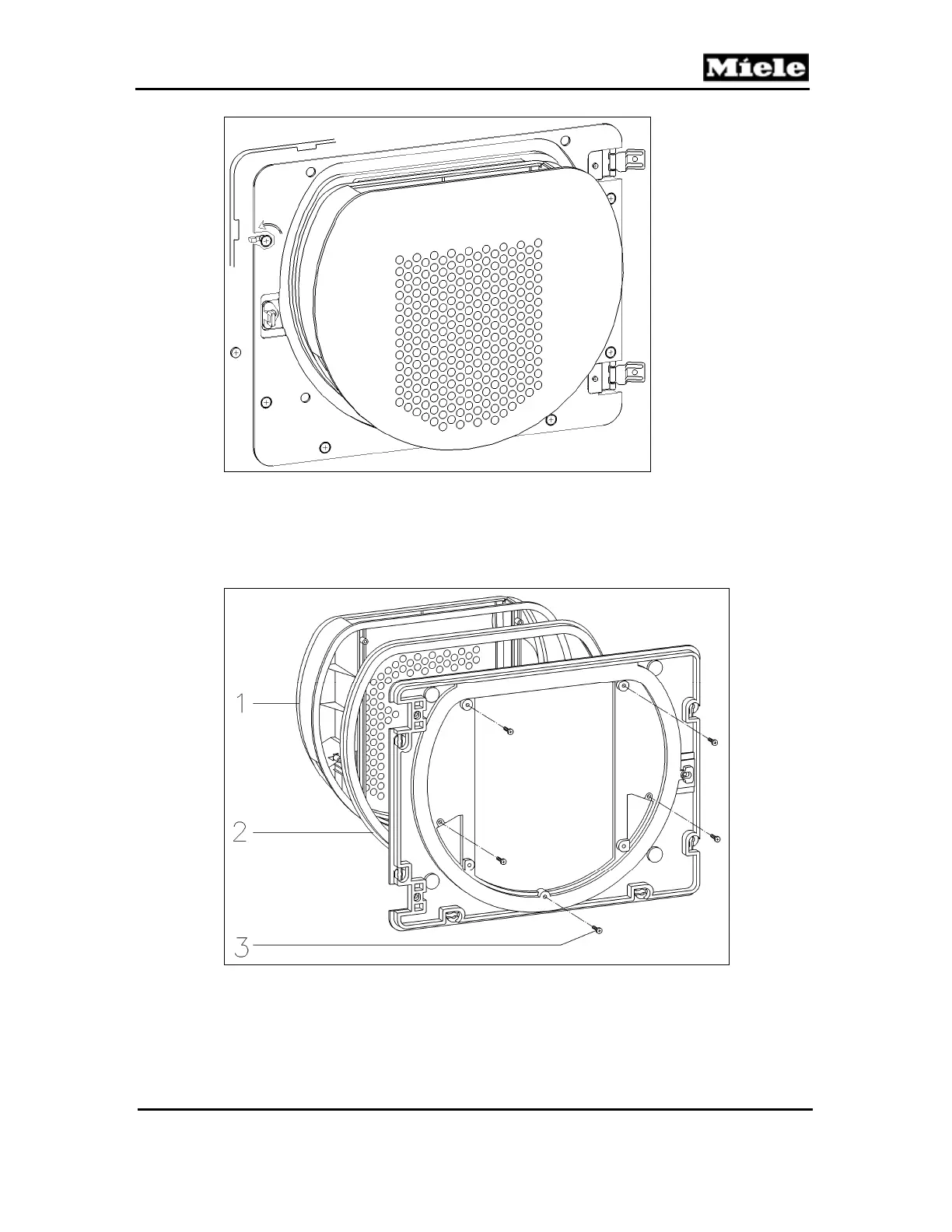

Figure 020-1: Door Panel Retainers
7. Remove the insulation from the inner door panel.
8. Remove the five T20 screws securing the door cap to the inner door
panel (Figure 020-2, Item 3). Take off the door cap (Figure 020-2, Item 1)
and remove the seal (Figure 020-2, Item 2).
Figure 020-2: Door Cap Screws
4.3 Removing the Door Lock
1. Disconnect the appliance from the power supply.
2. Remove the front panel; see Section 010-4.3.
