4.3 Air Shield Installation
1. Before reinstalling the air shield, take off the condensate box seal.

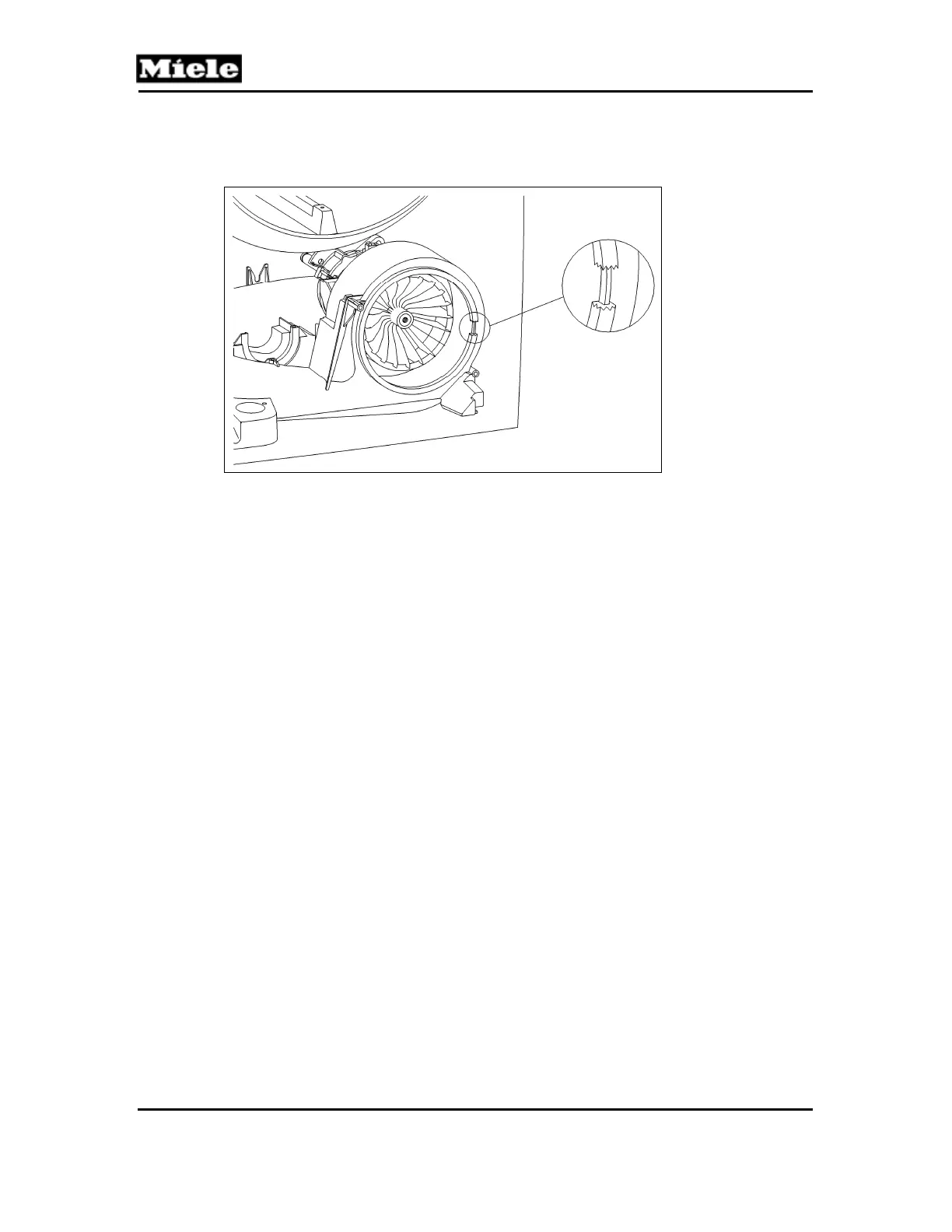

Figure 050-2: Condensate Box Seal
2. Install the condensate box seal on the condensate box.
3. Install the air shield.
4.4 Extractor Module Replacement
1. Disconnect the appliance from the power supply.
2. Remove the front panel; see Section 010-4.3.
3. Remove the fan impeller (Section 040-4.3) and drive (Section 040-4.4).
4. Remove the T30 screw securing the extractor module to the rear panel of
the machine.
5. Pull the extractor module forward slightly to release it from the rear panel,
then remove it sideways and out of the machine.
