Miele T 80 Series - Drive and Fan Systems

Technical Information
30
T 80xx
040 Drive, Fan
1 Technical Data
Condenser and vented dryers:
Drive, fan
Drive/motor (M5) for drying air, cooling air and drum;
approximate rating 250W
Vented dryer: Fan flow rate,
disconnected
Approximately 100cfm (170m
3
/h). Operating range limit
approximately 65cfm (110m
3
/h) for a 66' (20m) pipe,
diameter 3.9” (100mm), straight-run without additional
structures.
Condenser dryer: Fan flow rate,
cool-air side
Approximately 129cfm (219m
3
/h)
Condenser dryer: Fan flow rate,
drying-air side
68 - 71 cfm (116 - 121 m
3
/h)
Table 040-1: Fan and Drive Data

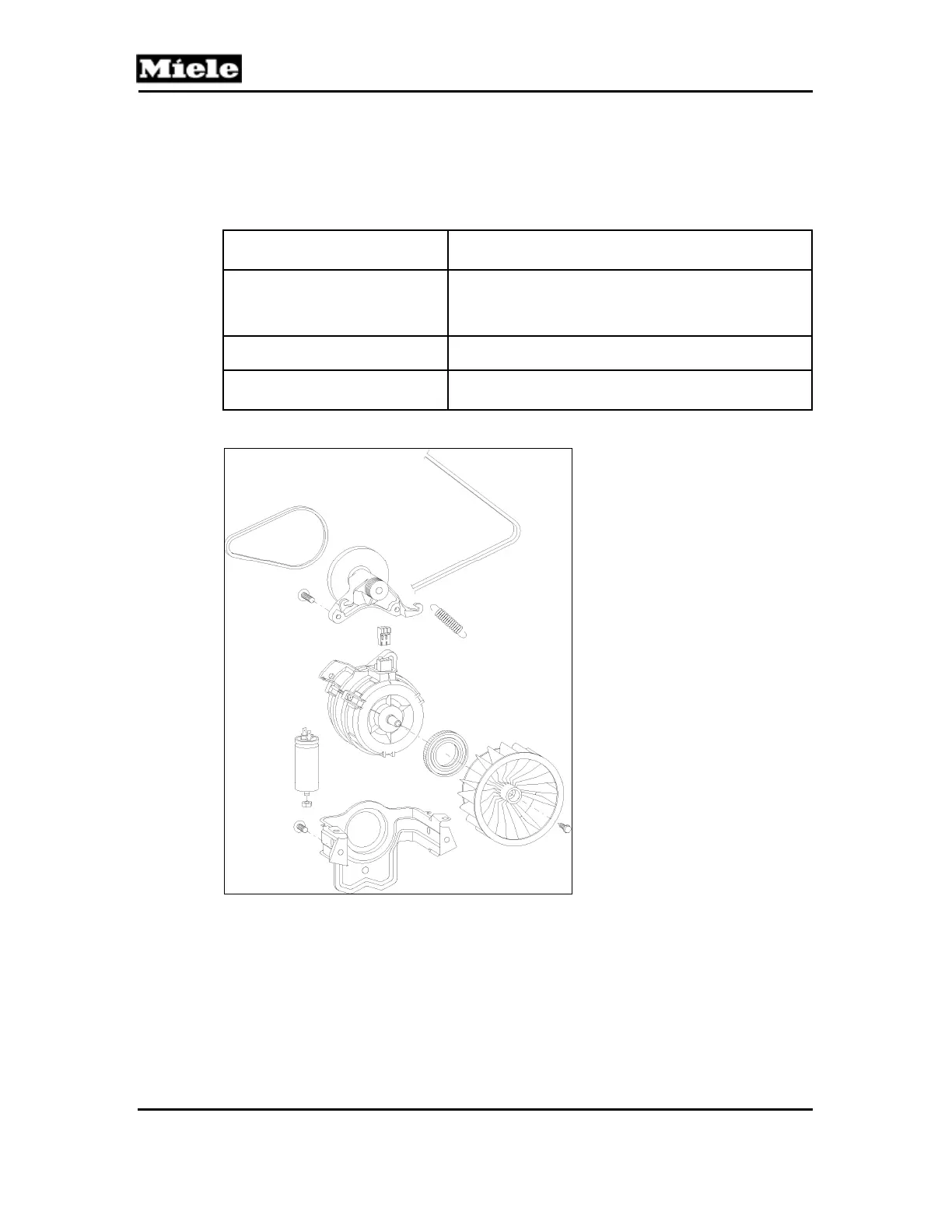

Figure 040-1: Drive/Fan - T 8002, T 8003, T 8005
