Technical Information
26
T 80xx

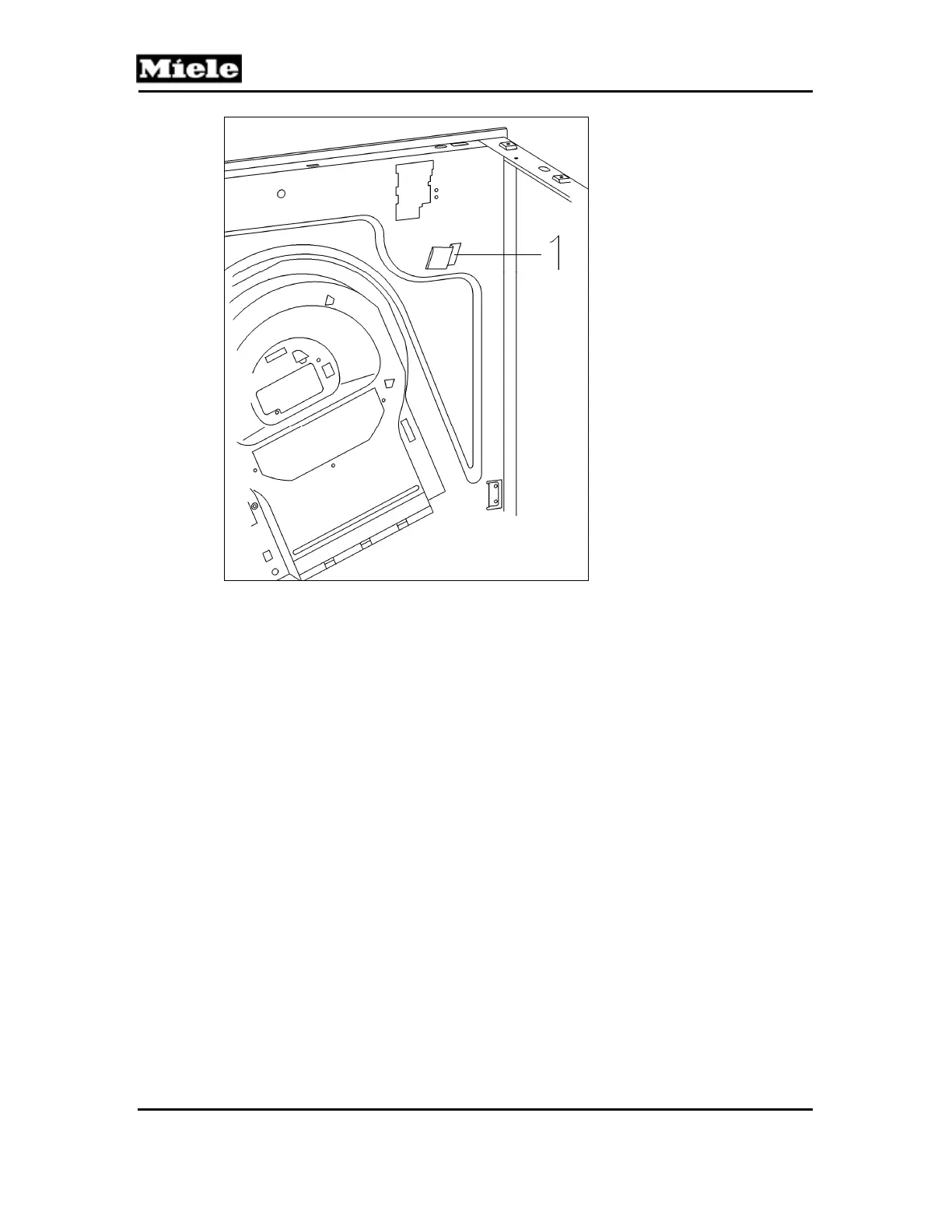

Figure 030-1: Heater Bank Removal
9. Disconnect the connections from the heater bank NTC and the
temperature limiter (Figure 030-2, Items 2 and 3).
10. Remove the T20 screw securing each temperature limiter bracket (Figure
030-2, Item 3); remove the temperature limiter assemblies from the
heater bank housing.
11. Remove the two T20 screws securing the heater bank to the appliance
rear panel (Figure 030-2, Item 1) and take off the heater bank.
