Miele T 80 Series - Component Layout - T8019 CI

Technical Information
13
T 80xx
4 T 8019 CI

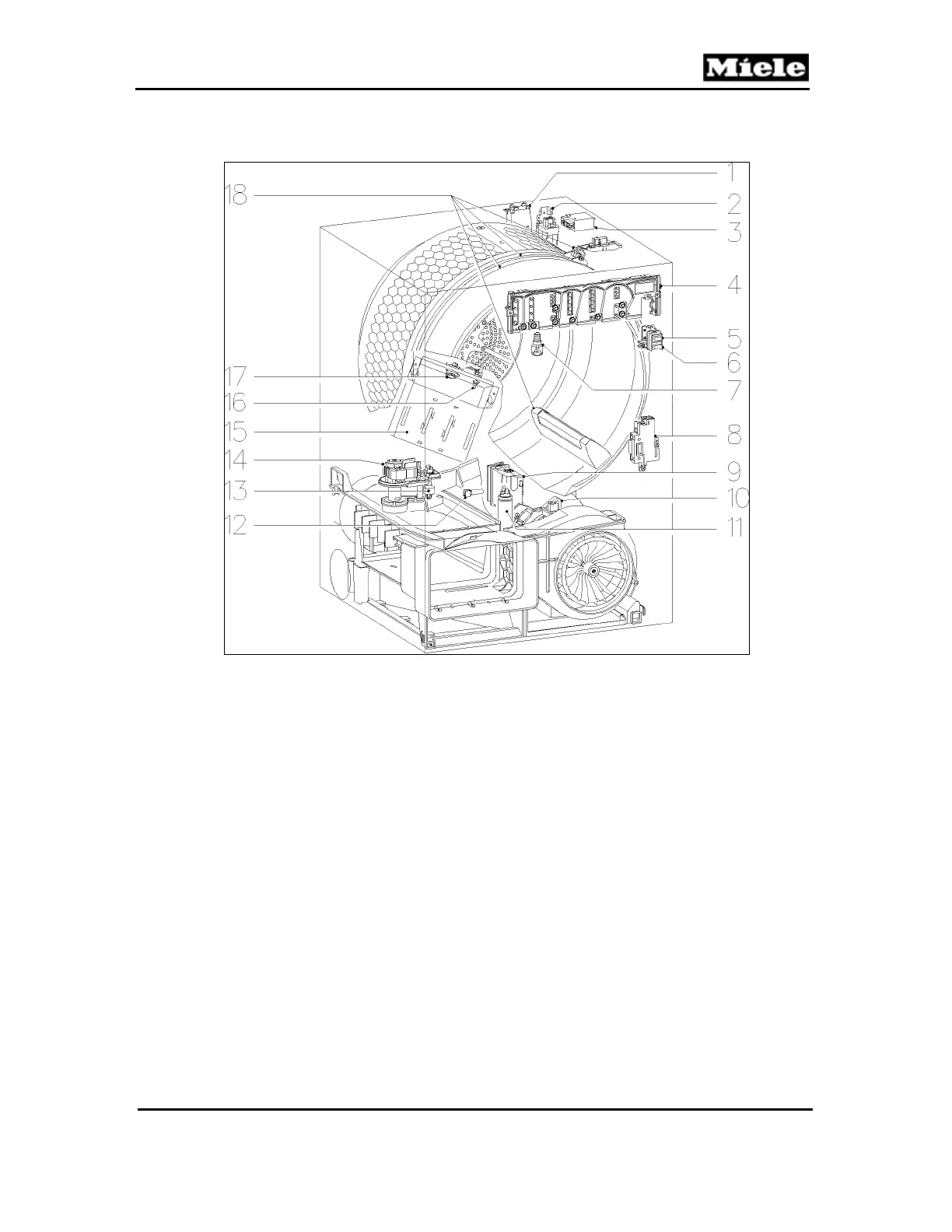

Figure D-4: T 8019 CI Component Layout
1 (2K1/1) Heater relay 2 10 (M5) Motor
2 (Z/1) Interference suppression capacitor 11 (C5) Motor capacitor
3 (1K1/1) Heater relay 1 12 (1R30) Drying-air NTC
4 (1N1) Electronic (EPWL) 13 (B8/7) Condensate float switch
5 (S2) Power (on/off) switch 14 (M13) Condensate pump
6 (S4) Door pushbutton (mechanical via Bowden
cable)
15 (R1, R2) Heater bank
7 (H3/6) Drum light 16 (2R30) Heater bank NTC
8 (A2) Door lock 17 (F2) Fuse
9 (2N1) RemoteVision interface 18 (B3/1) Residual-moisture sensor assembly
