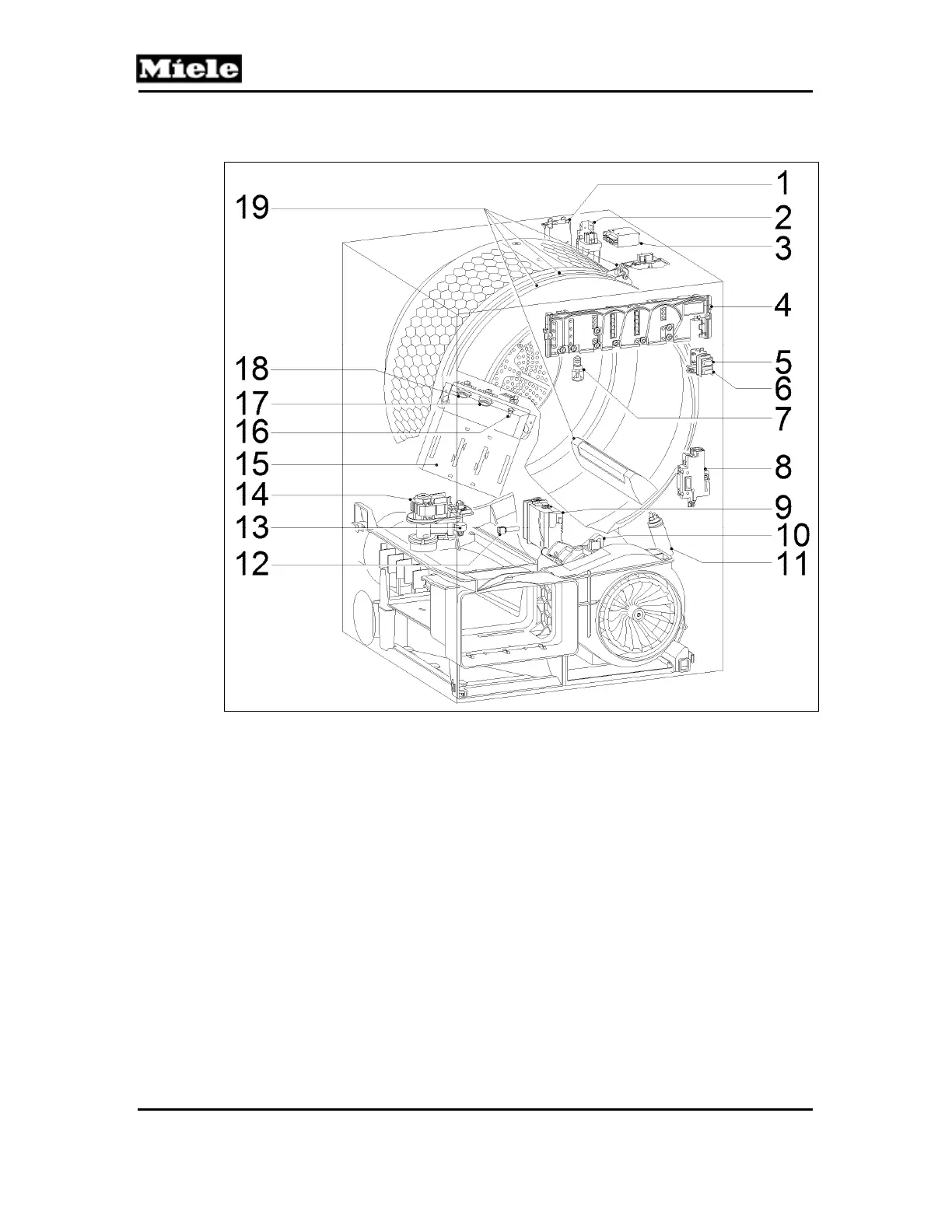

Figure D-5: T 8023 C Component Layout
1 (2K1/1) Heater relay 2 11 (C5) Motor capacitor
2 (Z/1) Interference suppression capacitor 12 (1R30) Drying-air NTC
3 (1K1/1) Heater relay 1 13 (B8/7) Condensate float switch
4 (1N1) Electronic (EPWL) 14 (M13) Condensate pump
5 (S2) Power (on/off) switch 15 (R1, R2) Heater bank
6 (S4) Door pushbutton (mechanical via Bowden
cable)
16 (2R30) Heater bank NTC
7 (H3/6) Drum light 17 (1F2) Fuse
8 (A2) Door lock 18 (2F2) Fuse
9 (2N1) RemoteVision interface 19 (B3/1) Residual-moisture sensor assembly
10 (M5) Motor
