Technical Information
15
T 80xx
010 Casing, Front Panel
4 Service
4.1 Lid Removal
1. Disconnect the machine from the power supply.
2. Remove the screw caps from the lid, if applicable, using a lid opener. See
Figure 010-1.
Note:
The lid contains locking clips which hold it onto the casing frame.
3. Loosen the T20 screws a maximum of 5 turns. Do not unscrew the
screws completely.
4. Press in on the screws.
5. Lift the lid at the front and slide it back to release it from its retainers.
Take the lid off.

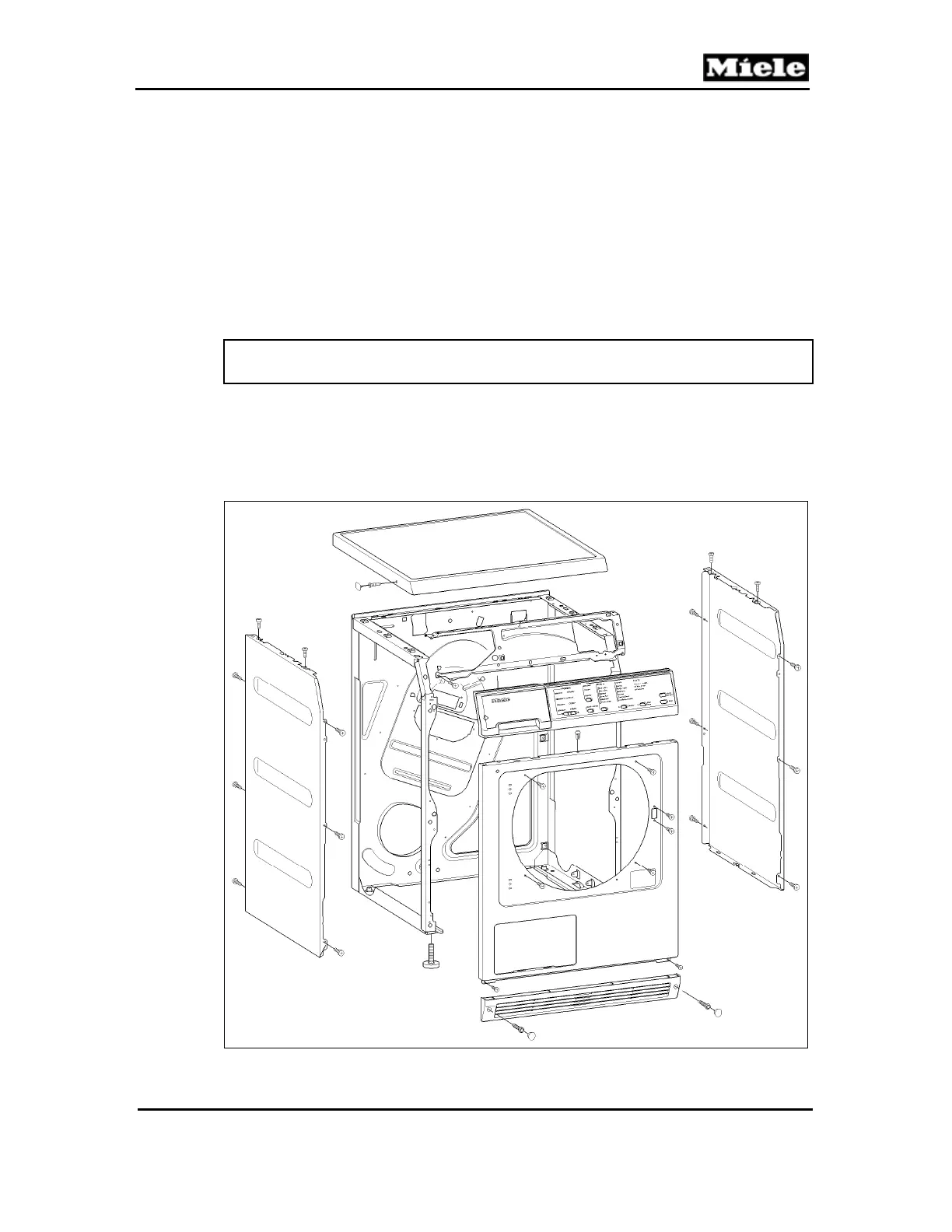

Figure 010-1: Lid Removal
