Technical Information
35
T 80xx

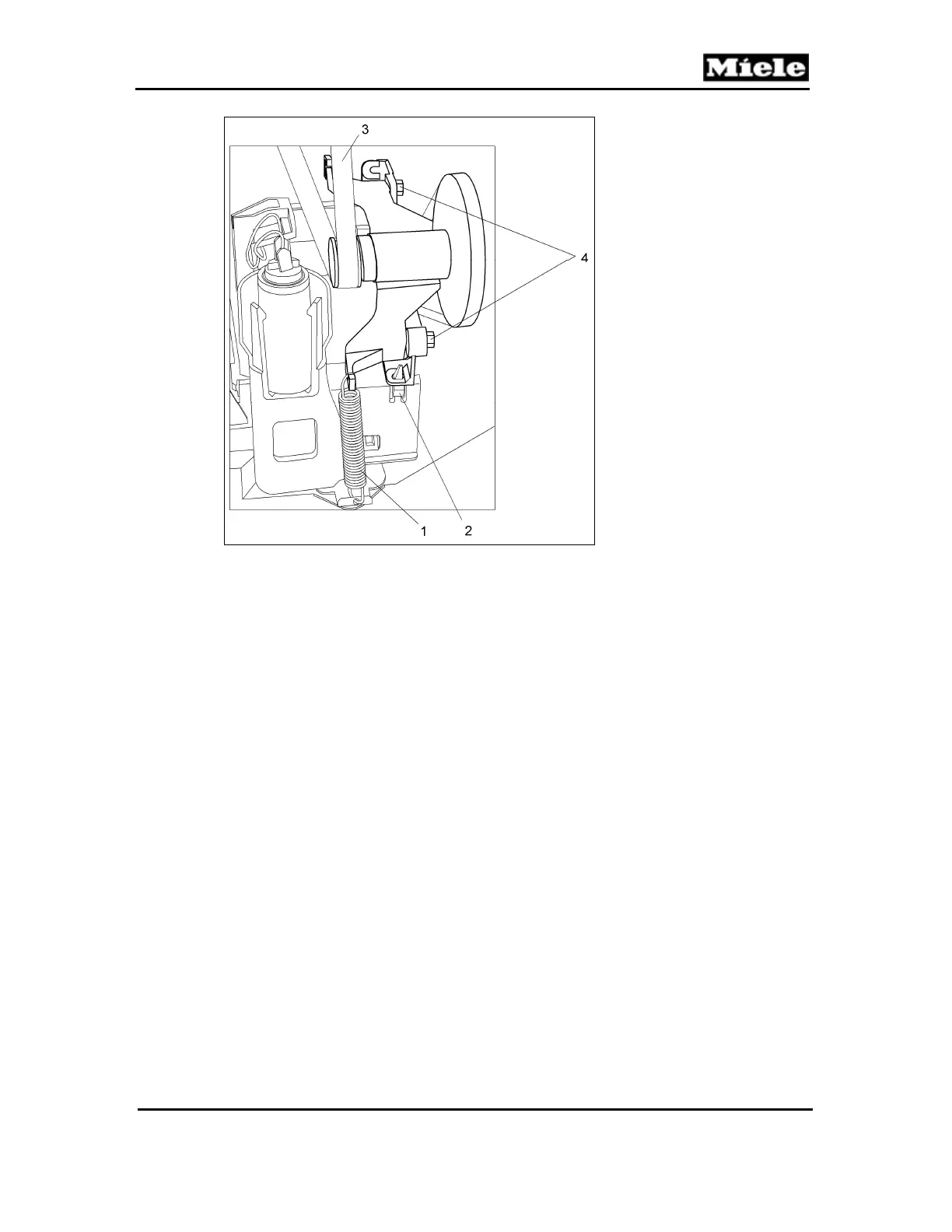

Figure 040-6: Motor and Drive Belt
17. Install the new motor. Re-secure the motor bracket with the two T30
screws. Reconnect the Molex connection and the ground wire.
18. Reinstall the drum, the rear bearing, and the drum belt.
19. Hook the tension spring back onto the intermediate drive notch, using
needlenose pliers as necessary.
20. Reposition the drum belt and spin the drum to ensure proper installation
on the motor drive.
21. Reinstall the fan impeller.
22. Reinstall the air shield.
23. Reinstall the heater bank.
24. Reinstall the metal bracket in front of the air shield.
25. Reinstall the right side panel, making sure that the grounding screws are
in their proper positions.
26. Reinstall the front panel.
27. Reinstall the electronic's support panel, the electronic, and the fascia
panel.
28. Reconnect the machine to the power supply and test it for correct
operation.
29. Once correct operation has been verified, reinstall the lid.
