Technical Information

T 80xx

5. Pull off the hose and disconnect the two Molex plugs from the condensate

pump.

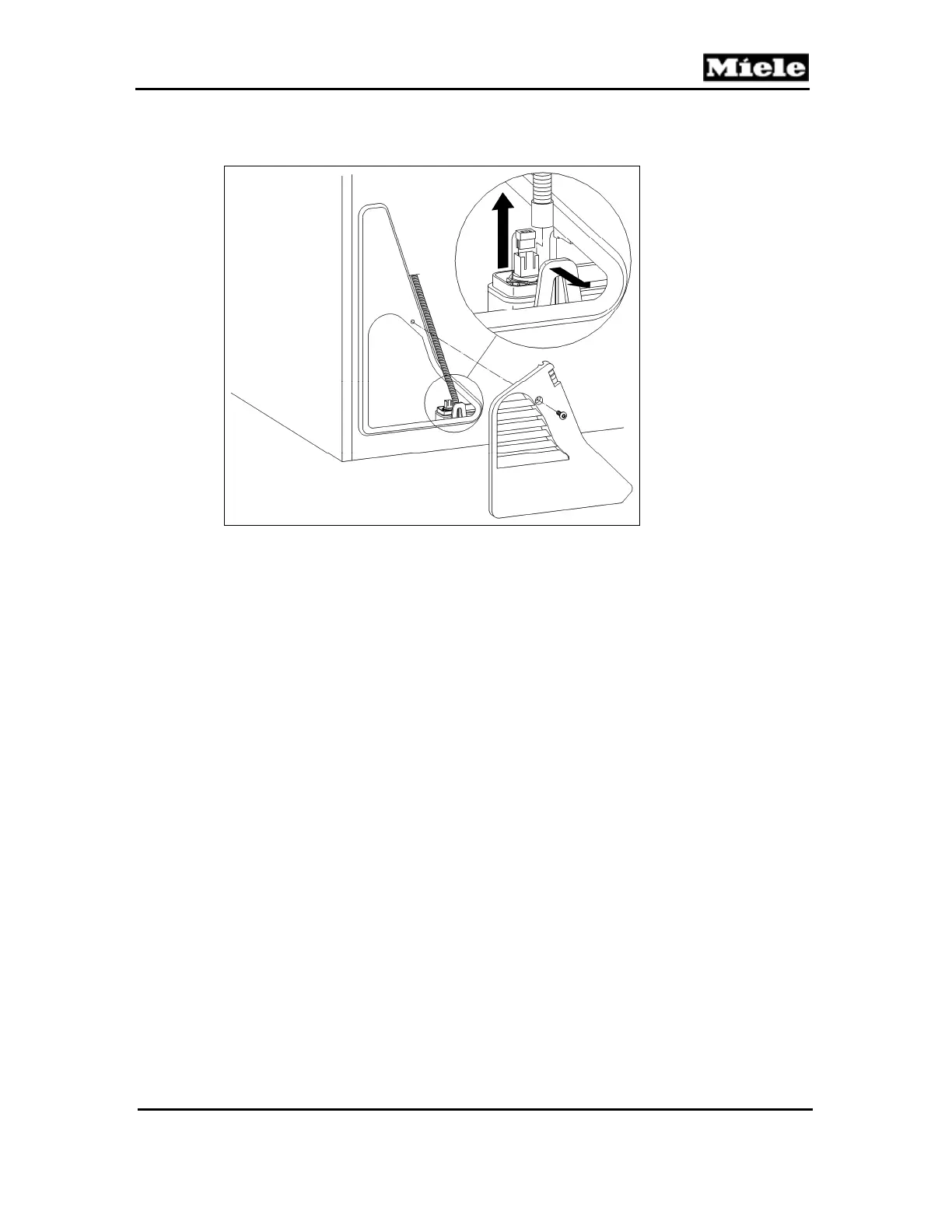

Figure 070-2: Condensate Pump
