Miele T 980x - Electrical Component Layouts; T 980 x Component Layout Diagram

Technical Information
10
T 980x/T 982x
D Layout of Electrical Components
1 T 980x

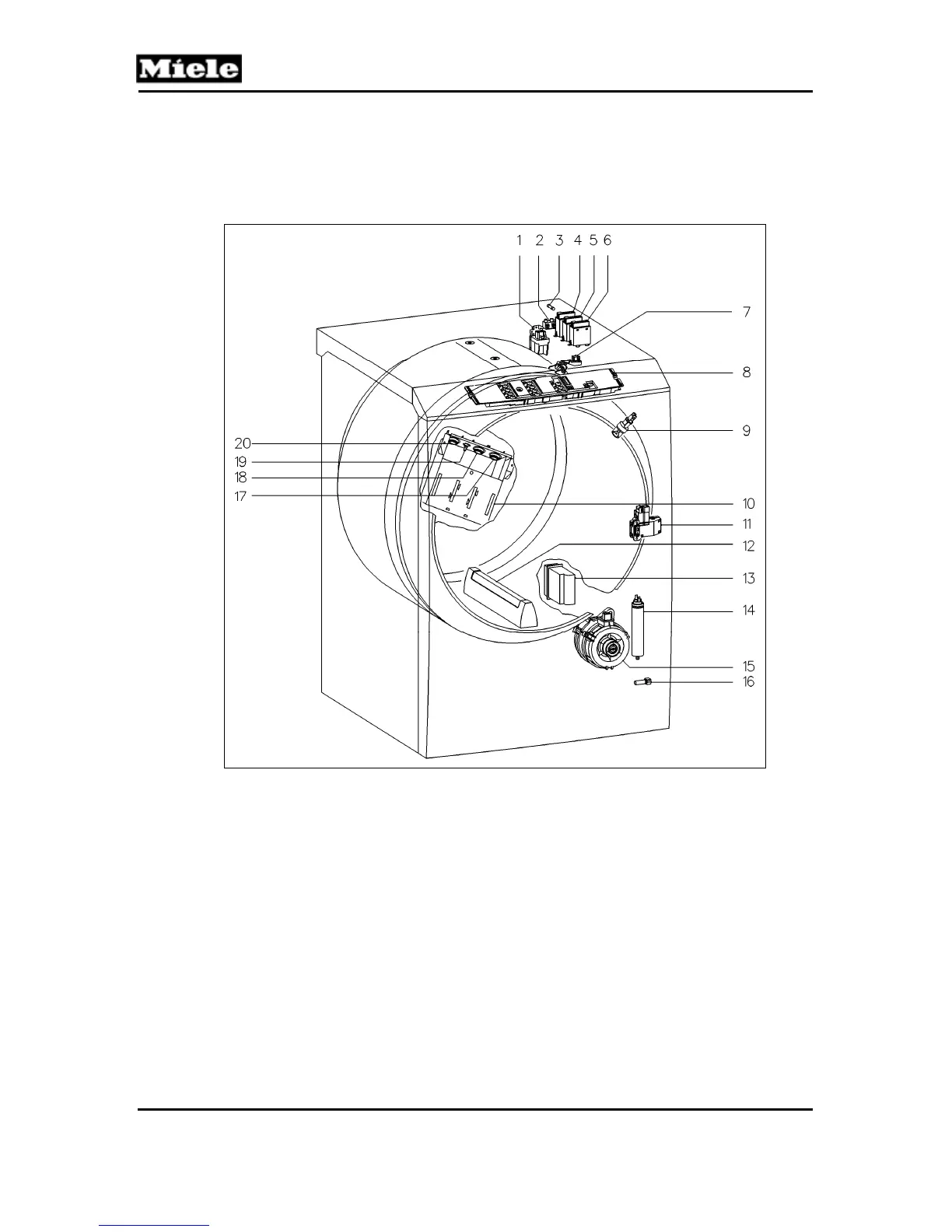

Figure D-1: T 980x Component Layout
1 (Z/1) Interference suppression capacitor 11 (A2) Door lock
2 (X3/1) Terminal block 12 (B3/1) Residual moisture sensor - Drum rib
3 (F2) Fuse 13 (WLAN) RemoteVision (optional)
4 (1K1/1) Heater relay 14 (C5) Motor capacitor
5 (2K1/1) Heater relay 15 (M5) Motor
6 (3K1/1) Heater relay 16 (1R30) Drying air NTC
7 (B3/1) Residual moisture sensor 17 (3F1) Temperature limiter w/manual reset
8 (1N1) Electronic (EPWL) 18 (2F1) Temperature limiter w/manual reset
9 (H3/6) Drum light 19 (2R30) Heater bank NTC
10 (R1, R2, R3) Heater bank 20 (1F1) Temperature limiter w/manual reset
