Miele T 980x User Manual

Technical Information
26
T 980x/T 982x

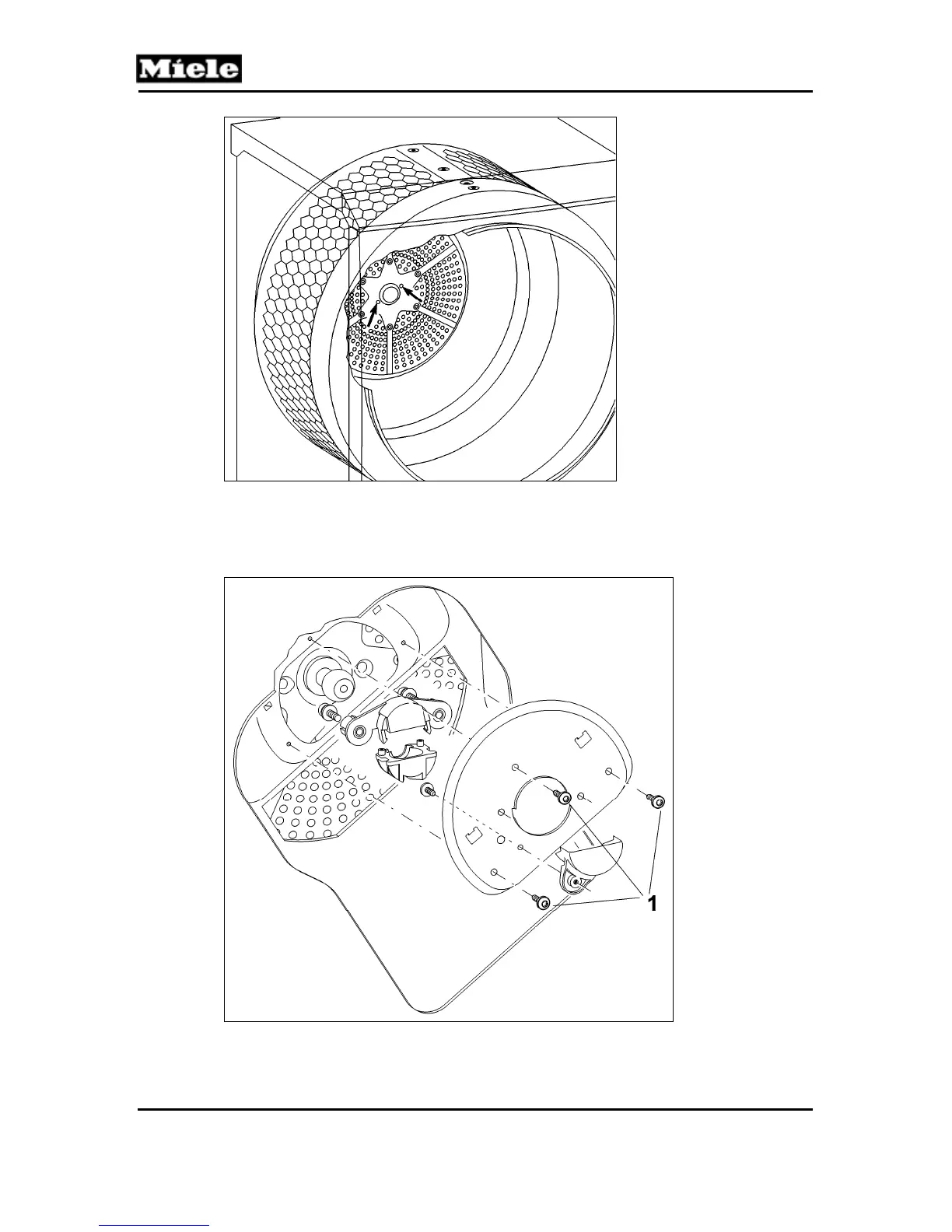

Figure 030-2: Bearing Housing Attachment
8. Remove the three T20 screws securing the bearing cover at the rear of
the machine; see Figure 030-3, Item 1.
9. Unlock the rear bearing and take it off.
Figure 030-3: Rear Bearing

Miele T 980x Specifications

General

Appliance type	Tumble dryer
Capacity	5 kg
Color	White
Loading type	Front load
Programs	Cotton, Synthetic, Delicate
Dimensions (H x W x D)	850 x 595 x 580 mm
