Miele T 980x - Removing the Door Lock; Figure 020-2: Door Lock Removal

Technical Information
19
T 980x/T 982x
4.4 Removing the Door Lock
1. Disconnect the appliance from the power supply.
2. Take off the front panel; refer to Section 010-4.2.
3. Remove the two T20 screws securing the door lock to the front panel.
See Figure 020-2.

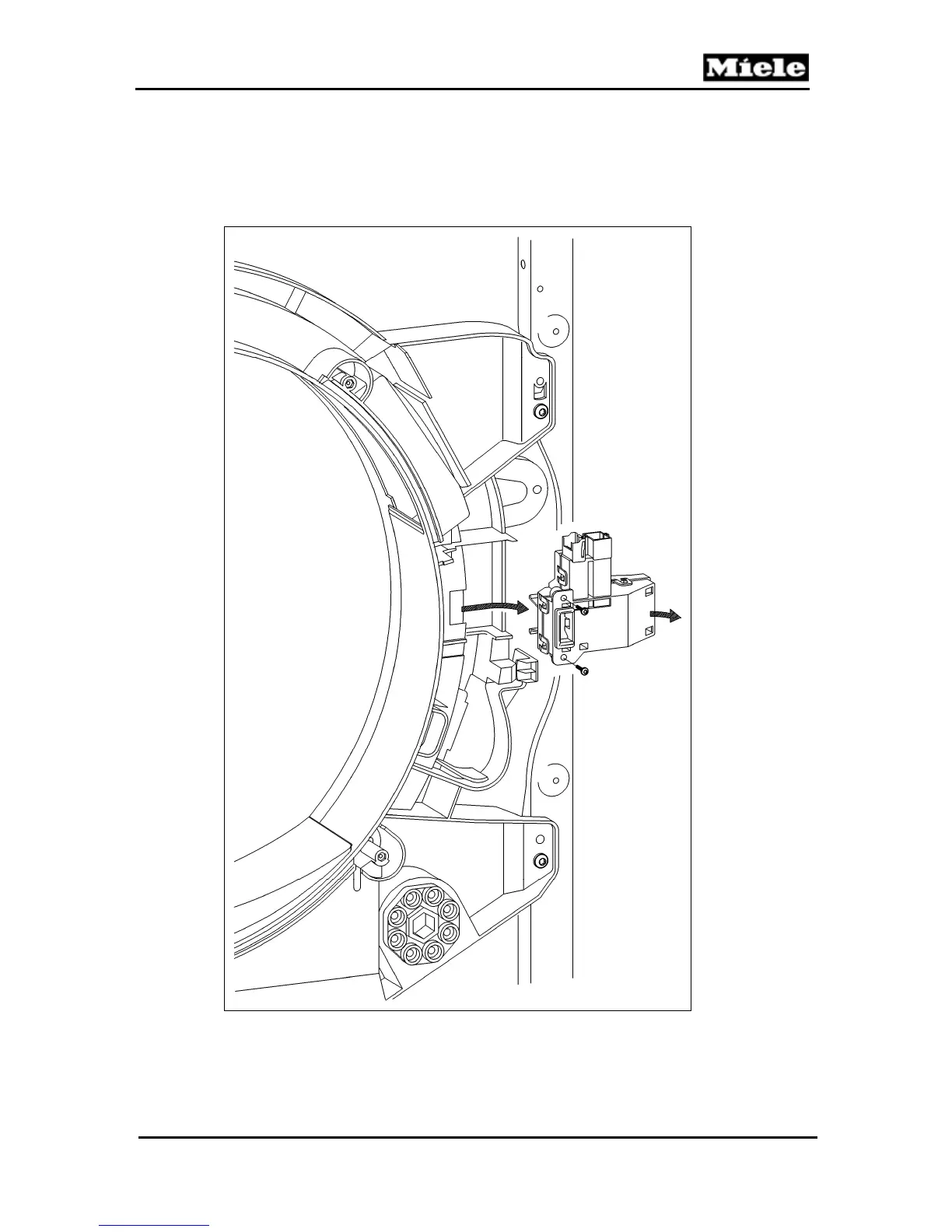

Figure 020-2: Door Lock Removal
