MacroPATH and MacroPATH Basic QX Series

MM161-001 – Operator Manual

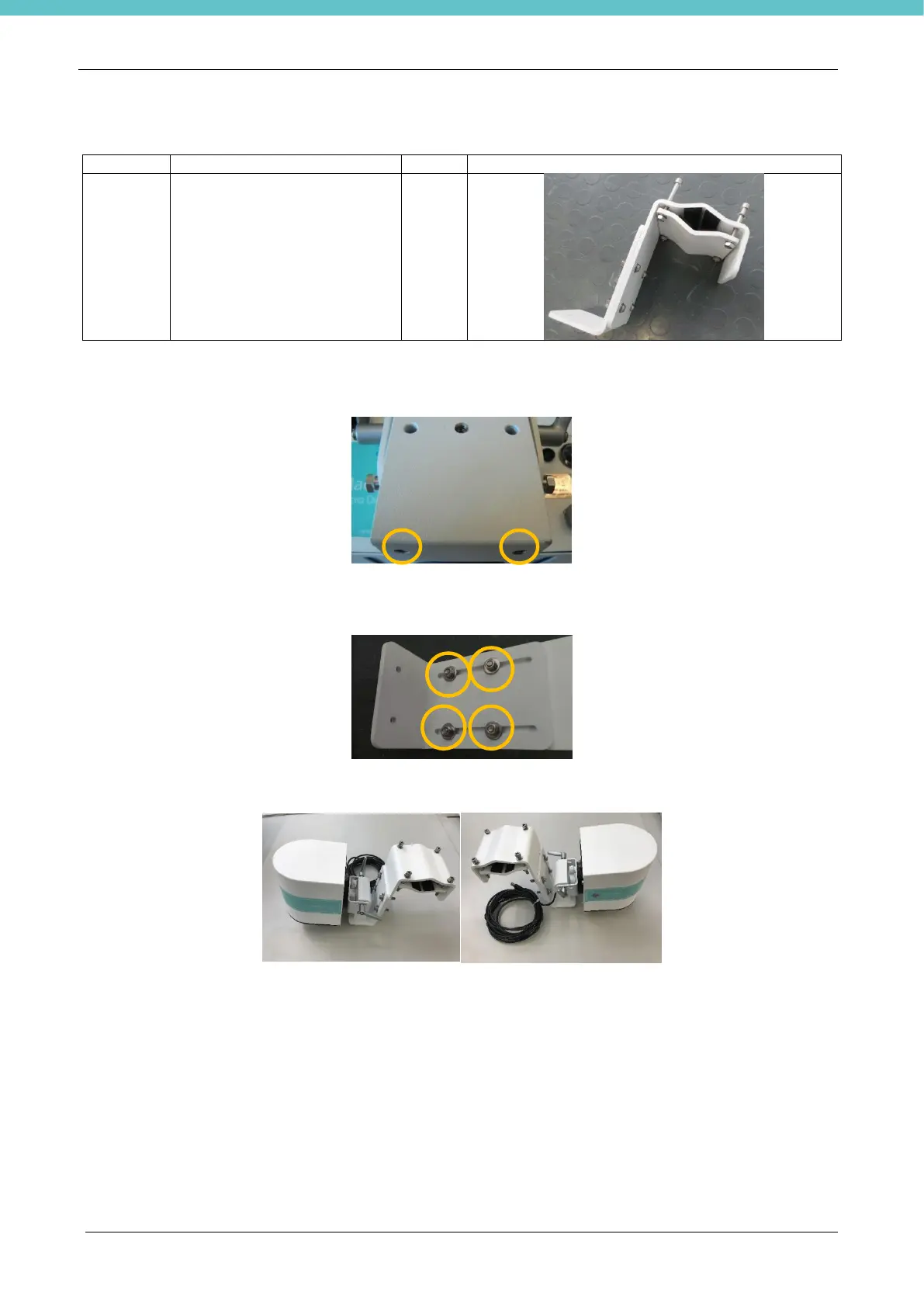

6.6. Tube clamp camera mount

CODE

DESCRIPTION

Q.TY


370540

Clamping bracket for fastening

the camera on Ø30 to Ø50mm

round section crosspiece.

Secure the clamping bracket to the camera using the bottom holes with the 2 M6x16 screws (with washers)

supplied.

To change the distance between the camera and the surface, adjust the four screws:

Final configuration:

Milestone MacroPATH Series - Page 81
