OM-277115 Page 77
1
6
10
2
7
11
3
8
12
4
9
5
269781-A
. Hardware is common and
not available unless listed.
3

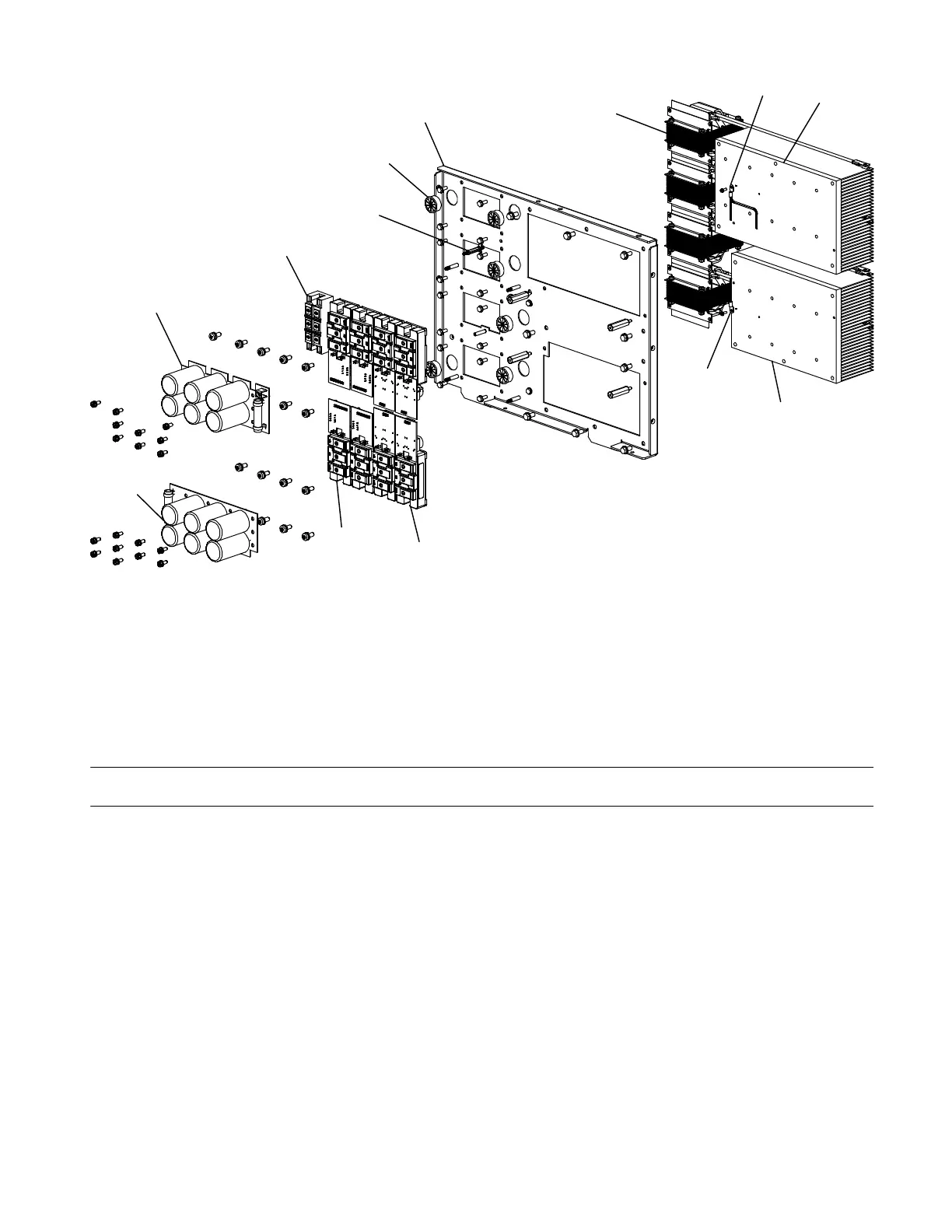

Figure 12-3. Left-Hand Windtunnel w/Components
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 12-3. Left-Hand Windtunnel
w/Components (Figure 12-1, Item 13)
Quantity
350
Model
500
Model
1 L1-L4 252375 Inductor, Input 2 4.. .... .... .. .......................................... .....
2 265242 Windtunnel, Lh 1 1.. .............. .. ......................................... .....
3 PC2-PC3 248920 Circuit Card Assy, Capacitor (500) 0 2.. .. .. .. ......................... .....
3 PC2-PC3 265947 Circuit Card Assy, Capacitor (350) 2 0.. .. .. .. ......................... .....
4 284838 Kit, Transistor IGBT Module 500 (Inverter) 0 1.. .............. .. .................. .....
4 284839 Kit, Transistor IGBT Module 350 (Inverter) 1 0.. .............. .. .................. .....
5 284836 Kit, Transistor IGBT Module 500 (Boost) 0 1.. .............. .. .................... .....
5 284837 Kit, Transistor IGBT Module 350 (Boost) 1 0.. .............. .. .................... .....
6 252449 Thermistor, Ntc 30k Ohm @ 25 Deg C 8.00in Lead 1 1.. .............. .. ....... .....
7 173632 Thermistor, Ntc 30k Ohm @ 25 Deg C 12.00in Lead 1 1.. .............. .. ....... .....
8 262497 Stand-off Support, PC Card .156 Dia W/P&L 1.125 1 1.. .............. .. .......... .....
9 153403 Bushing, Snap-in Nyl .750 Id X 1.000 Mtg Hole Cent 4 6.. .............. .. ......... .....
10 266939 Heat Sink, IGBT Upper 1 1.. .............. .. ................................... .....
11 266940 Heat Sink, IGBT Lower 1 1.. .............. .. ................................... .....
12 184260 Kit, Diode Power Module 1 1.. .............. .. ................................. .....
047838 Blank, Snap-In Nyl 1.000 Mtg Hole Black 2 0................... .. ................... .....
267386 Plate, Input Inductor Blank 1 0................... .. ................................ .....
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
